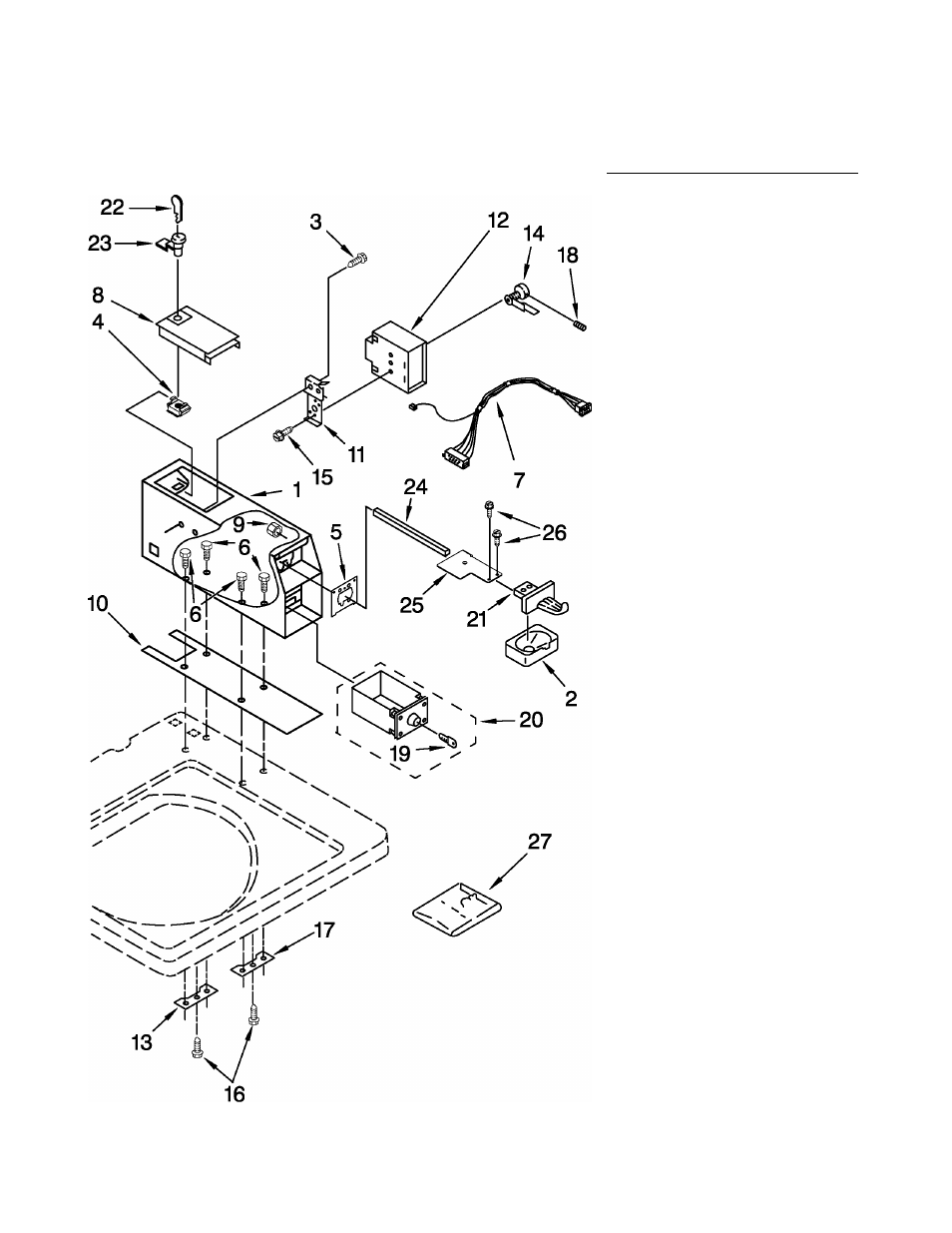

METER CASE PARTS
For Model: CAM2752TQ0
(White)
Illus.
No.
Part
No.
DESCRIPTION
1
3406994 Meter Case
2
385421 Funnel, Coin
3
339805 Screw,
10-32 X 3/16
4
90406 Nut, Cage
5
3954761 Plate, Adapter
(Includes Item 2)
6
Bolt, Meter Case
3353994 5/16-18 x 2.5 (1)
3349065 5/16-24 x 1 (3)
7
3955640 Wire Harness,
Timer
8
3351136 Door, Service
9
3400029 Nut, Adapter
Plate (3)
10
3954812 Cushion, Case
11
385575 Bracket, Timer
12 W10112081
Timer, 60 Hz.
13
3353813 Plate, Mounting
14
385571 Clutch, Timer
354987 E-Ring
15
3400064 Screw, Timer
16
98445 Screw, 10-16 x 3/4
17
3347825 Plate, Mounting
18
98654 Screw, Set (2)
19
Key, Money Box
20
*8316525 Money Box
(Includes Item 19)
21
*8316520 Coin Chute
22
*358288 Key, Service Door
23
*8316526 Security Lock &
Cam Assembly
24
*8318517 Bolt,
Coin Chute
25
*8316522 Extension
26
*3400086 Screw, 10-32 x 3/8
27
*8316524 Kit,
Chute Decal
Coin Mechanism Parts May Be
Ordered From Whirlpool
C )
Or Vendor(s) Listed Below
♦ ESD
270 New Jersey Dr.
Fort Washington, PA
19034
1-800-523-1510
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
W10114744
