15
FORM NO. L-20093-L-1209
ELEMENT CLUTCH
ITEM DESCRIPTION QTY
1 Splined Hub 1
2 Piston/Drive Disc 1
3 Cylinder/Drive Disc 1
4 Friction Facing 2
5 Flange Mount Disc 1
6 Housing 1
7 Friction Disc 1
8 O-Ring (Large) 1
9 O-Ring (Small) 1
10 Retaining Ring 1
11 Machine Screw 16
12 Cap Screw *
13 Shoulder Screw **
14 Spring **
15 Rotary Air Union 1
16 Adaptor Fitting 2
17 Elbow Fitting 4
18 Hose Assembly (Not Shown) 2
19 Hose Assembly (Not Shown) 1
20 Lock Nut *
21 Cap Screw 6
MODEL * QTY ** QTY
DPC-13T 8 8
DPC-15T 10 8
PILOT ASSEMBLY
ITEM DESCRIPTION QTY
22 Extension Hub 1
23 Pilot Housing 1
24 Spacer 1
25 Bearing 2
26 Retaining Ring 1
27 Retaining Ring 1
28 Cap Screw 3
CAP, ROTARY AIR UNION, & FASTENERS
ITEM DESCRIPTION QTY
30 Cap, Rotary Air Union 1
31 Cap Screw 3
SHEAVES & FASTENERS
ITEM DESCRIPTION QTY
32 Sheave 1
33 Cap Screw 6
34 Lockwasher 6
32
33
34
25 24 25 22
5
12
6 3 2 20 7
11
16
17 1
28
31
17
30
15
14
13
4
8
9
10
27
26 21 23

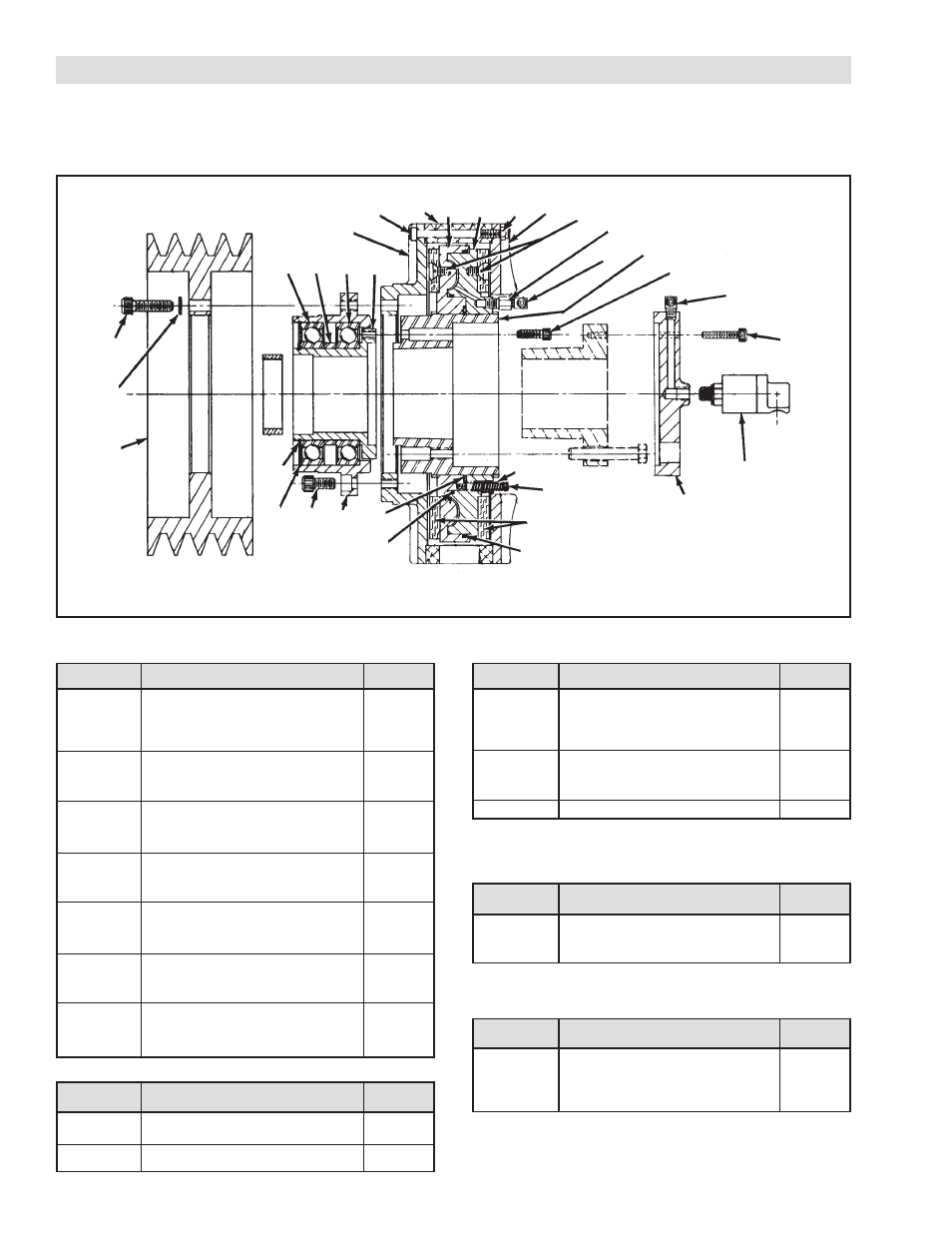

FIGURE 12
REPLACEMENT PARTS
The Item or “Balloon” Number for all Nexen Products is used for
part identification on all Product Parts List, Product Price List, Unit
Assembly Drawings, Bills of Materials, and Instruction Manuals.
When ordering replacement parts, specify model designation, item
number, part description, and quantity. Purchase replacement
parts through your local Nexen Distributor.
