Car care
Fuses
No. Amp Function
A
–
–
B
10
Stop lights, trailer
C
30
Cabin fan, ACC
1
30
Electrically heated rear window and rear-view mir-
rors
2
20
Direction indicators
3
30
Cabin fan, A/C
4
15
Trunk light; switch illumination; electrically powered
radio antenna
5
30
Electrically operated front seat, right
6
30
Cigarette lighter
6A
7.5 Automatic transmission
7
30
Rear window operators, rear-view mirrors, sunroof
8
15
Rear wiper
9
7.5 ACC panel
10
10
Horn
11
7.5 DICE / TWICE
12
20
Stop lights; front fog lights
13
15
Diagnostics; radio
14
30
Front window motors; soft top (Convertible)
15
20
Daytime running lights
16
30
Electrically operated front seat, left
16B
30
Control module, engine management system
17
15
Control module, engine management system;
DICE/TWICE; main instrument panel/SID; memory
for electrically operated driver’s seat; telephone;
cruise control
18
10
Airbag
19
10
ABS; A/C; rear fog light; switch, rear fog light
20
20
Electric heating, front seats; switch, electrically
heated rear window
30
10
20
30
30
15
15
15
10
10
10
10
10
10
30
30
10
20
15
15
15
10
10
20
10
20
20
20
20
15
15
30
15
15
10
15
15
IB918
1
C
B
A
2 3 4
5 6
7
6A
8 9 10 11 12 13 14 15 16
17
16B
18 19 20 21 22 23 24
25 26 27 28 29 30 31
32 33 34 35 36
37 38 39

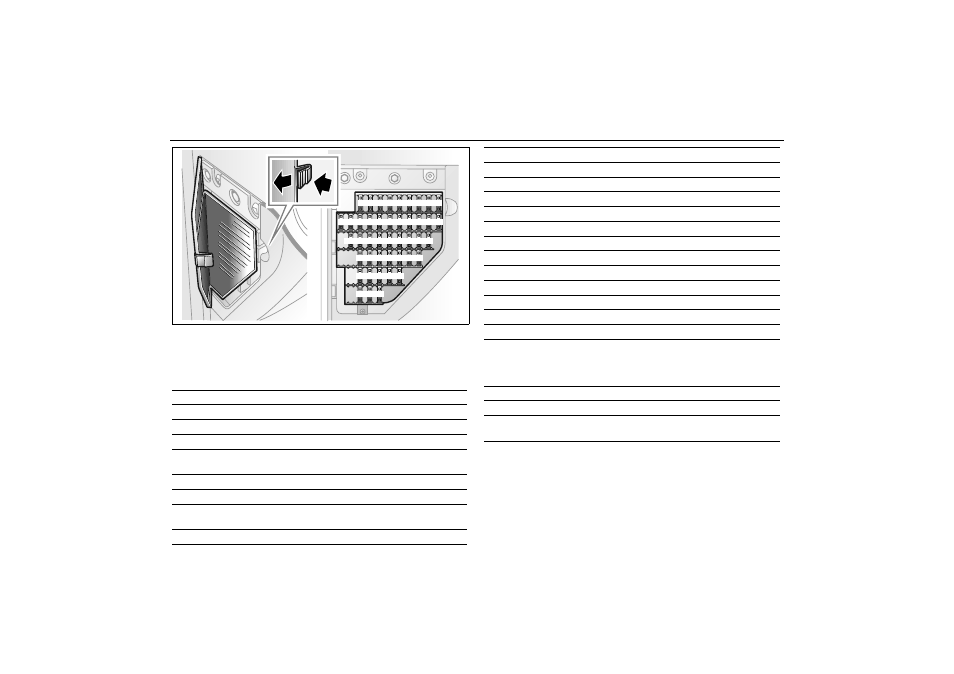

Fuse holder on the end of the instrument panel
