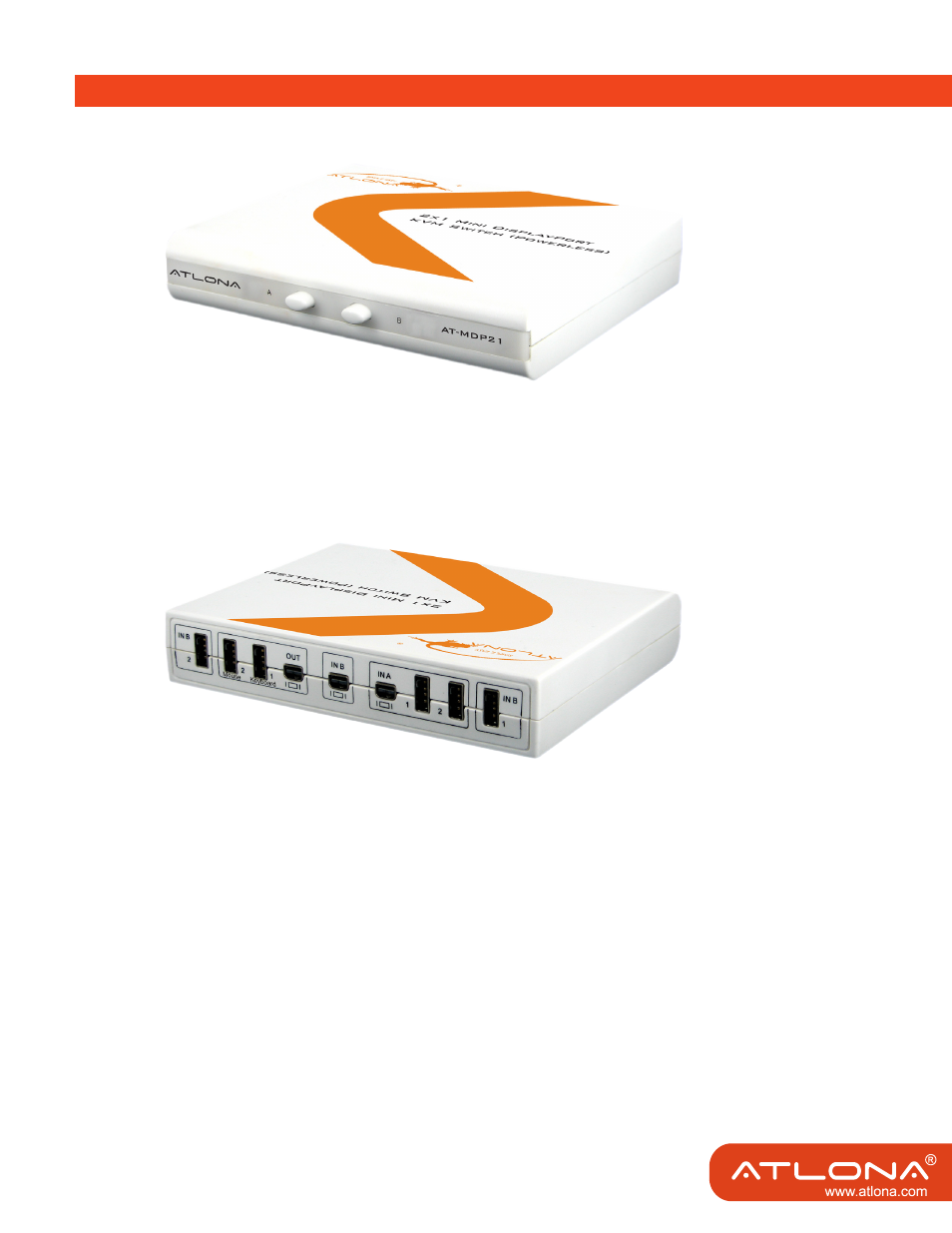

PANEL DESCRIPTION
1. Front Panel
• Input select buttons: Select between Inputs A and B on front panel to select the input sources
2. Rear Panel
• Mini DisplayPort Inputs: Inputs A and B for desired Mini DisplayPort sources
• Mini DisplayPort Output: Output to Desired Monitor
• USB Input A: For Input A, use USB inputs 1 and 2 for mouse and keyboard connection from computer
to switcher
• USB Input B: For Input B, use USB inputs 1 and 2 for mouse and keyboard connection from computer
to switcher
• USB Outputs: USB Outputs 1 and 2, use Outputs 1 and 2 for mouse and keyboard connection
