1. Connect the AT-MDP21’s mini DP output to the desired monitor’s mini DisplayPort input via mini DP to
mini DP cable.
2. Connect the desired keyboard and mouse’s USB A to the AT-MDP21’s output USB jacks 1(keyboard)
and 2(mouse).
3. Connect the AT-MDP21’s mini DP A and B inputs to two different desired computer’s mini DisplayPort
outputs via mini DP to mini DP cable.
4. From the AT-MDP21, connect input A’s USB 1and 2 as well as input B’s USB 1 and 2 to two desired
computers’ mouse and keyboard USB jacks by using USB to USB cables.

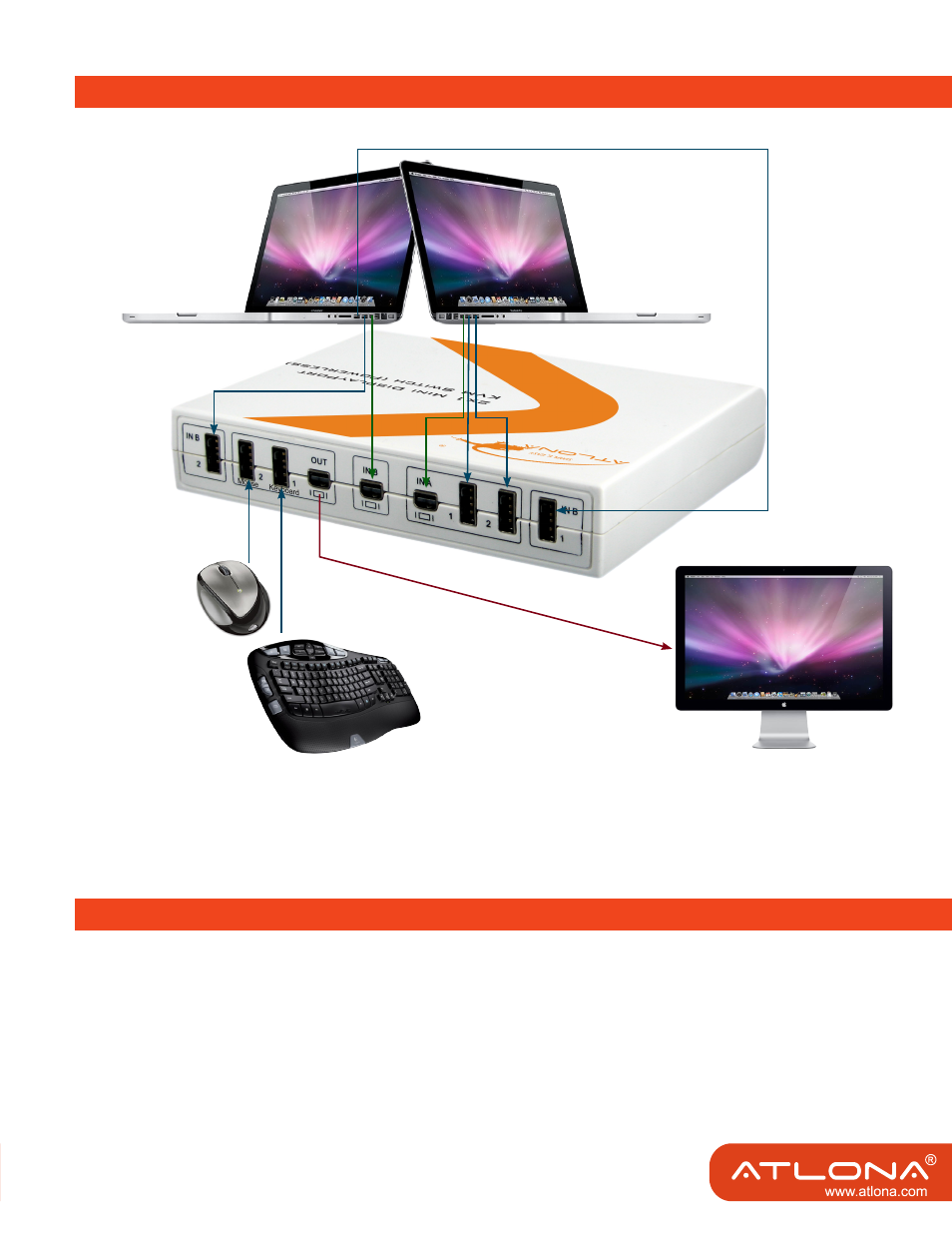

CONNECTION DIAGRAM
OPERATION
AT-MDP21
Apple LED Cinema display
24/27-inch LED and iMac 27-inch
Apple laptop with mini
Displayport output
Apple laptop with mini
Displayport output
Keyboard
Mouse
