FS-97B User’s Manual Hardware Setup
CPU installation 15
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
FS-97B has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If FS-97B need RMA please Keep CPU socket cover on the CPU Socket.
Warring If CPU Socket internal Pin damage We could not provide warranty.
Intel ® Core 2 Duo /Quad processor
Package type: 775 pin PLGA
L2 Cache: 4 MB
FSB: 533/800/1066MHz (266MHz x 4)
Manufacturing: 65nm, 90nm
Intel Hyper Threading Technology
and Core 2 Duo /Quad supported

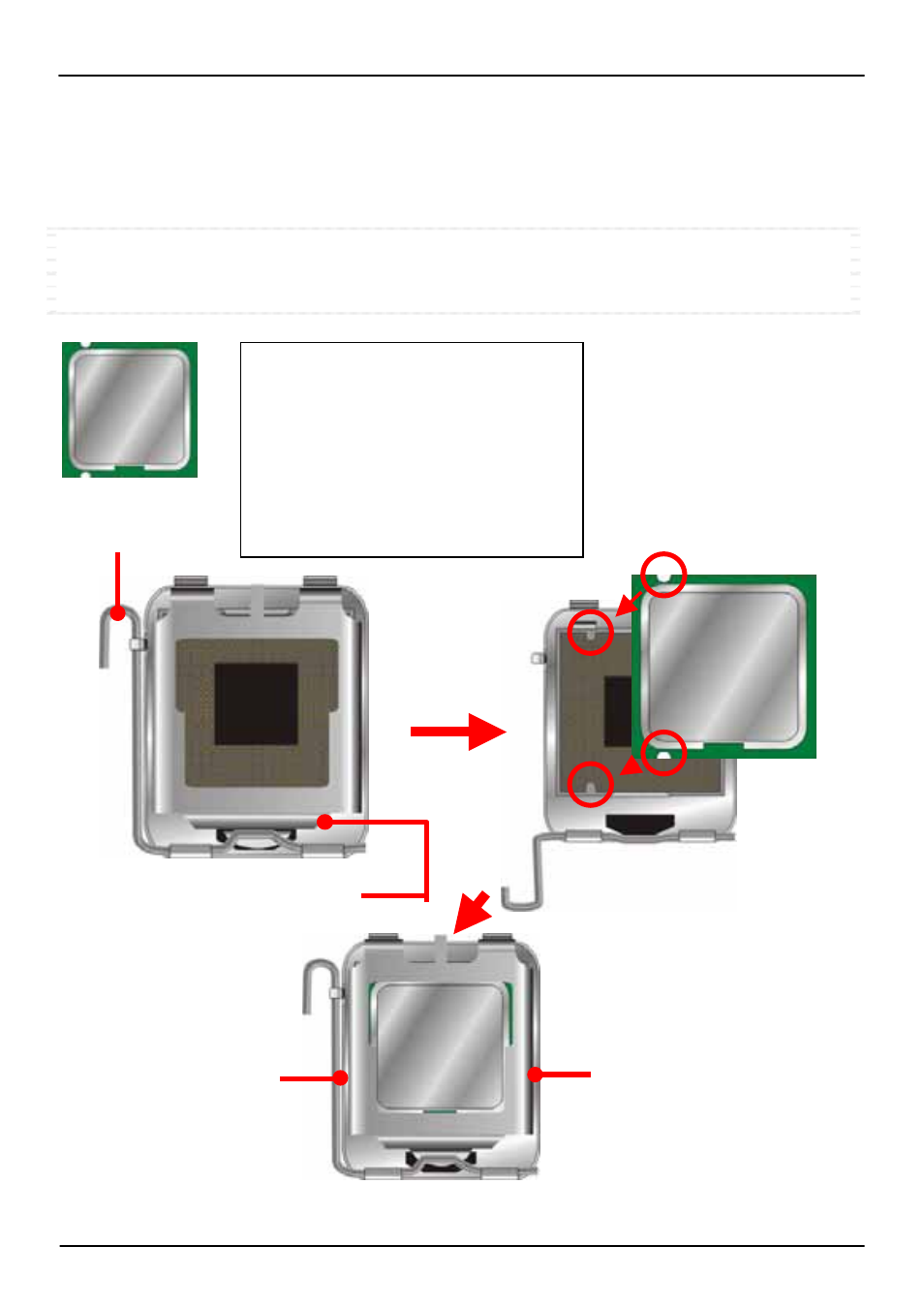

1. Lift this bar
2. Uncover this plate
Check point
3. Place the CPU on the top of
the pins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderly to avoid bending the pins
