LS-371 User’s Manual
44

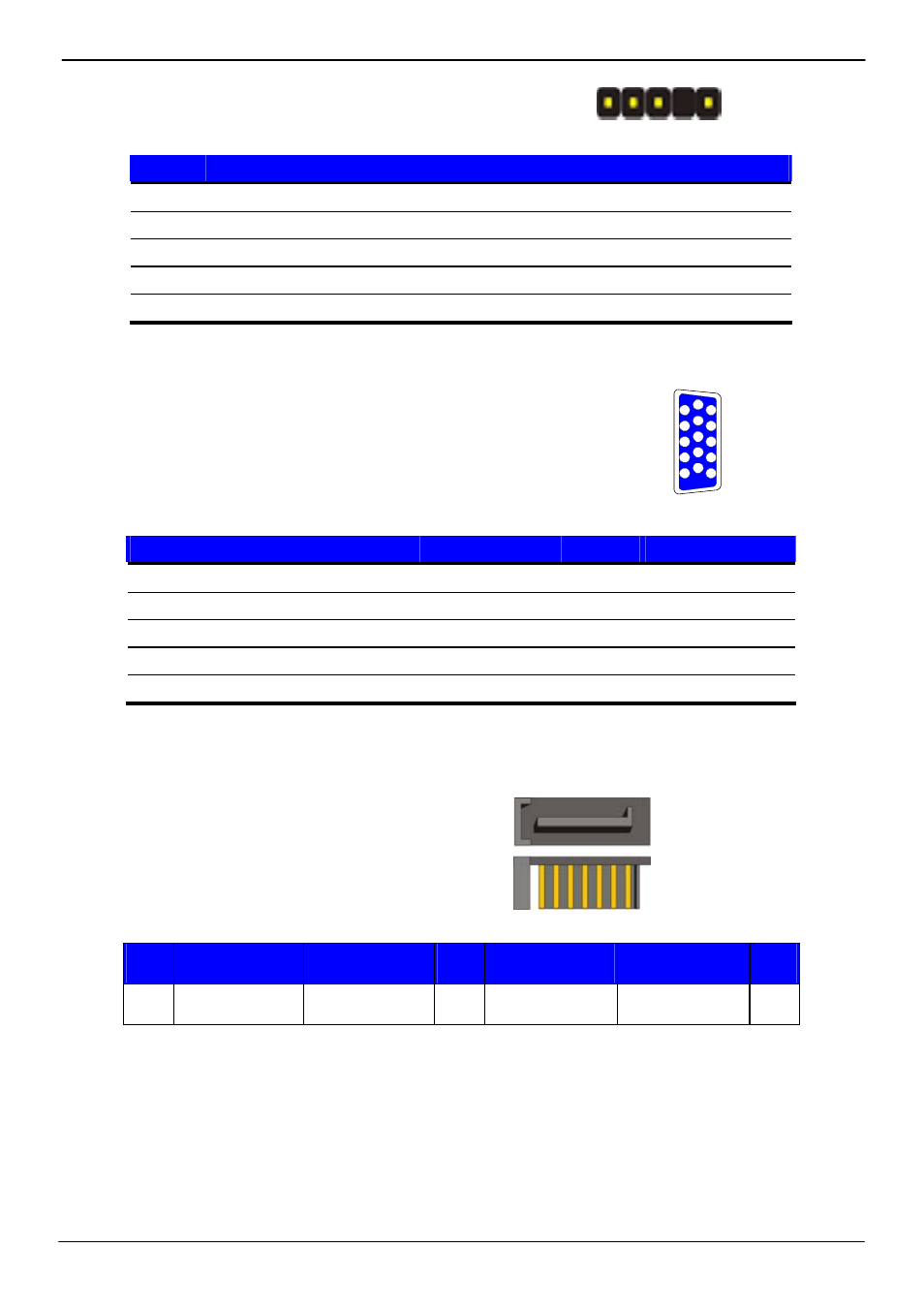

A.2 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Port
Pin Description
1 Vcc
2 N/C
3 IRRX
4 Ground
5 IRTX
A.3 < CRT Port >
Connector: CRT
Type: 15-pin D-sub female connector on panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 5VCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 LVGA5V 14 VSYNC
5 Ground 10 Ground 15 5VCLK
A.4 <Serial ATA Port>
Connector: SATA1/2
Type: 7-pin wafer connector
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
1 5
1
2
3
4
5
11
12
13
14
15
6
10
1 7
