PMSA User’s Manual

-

14

-

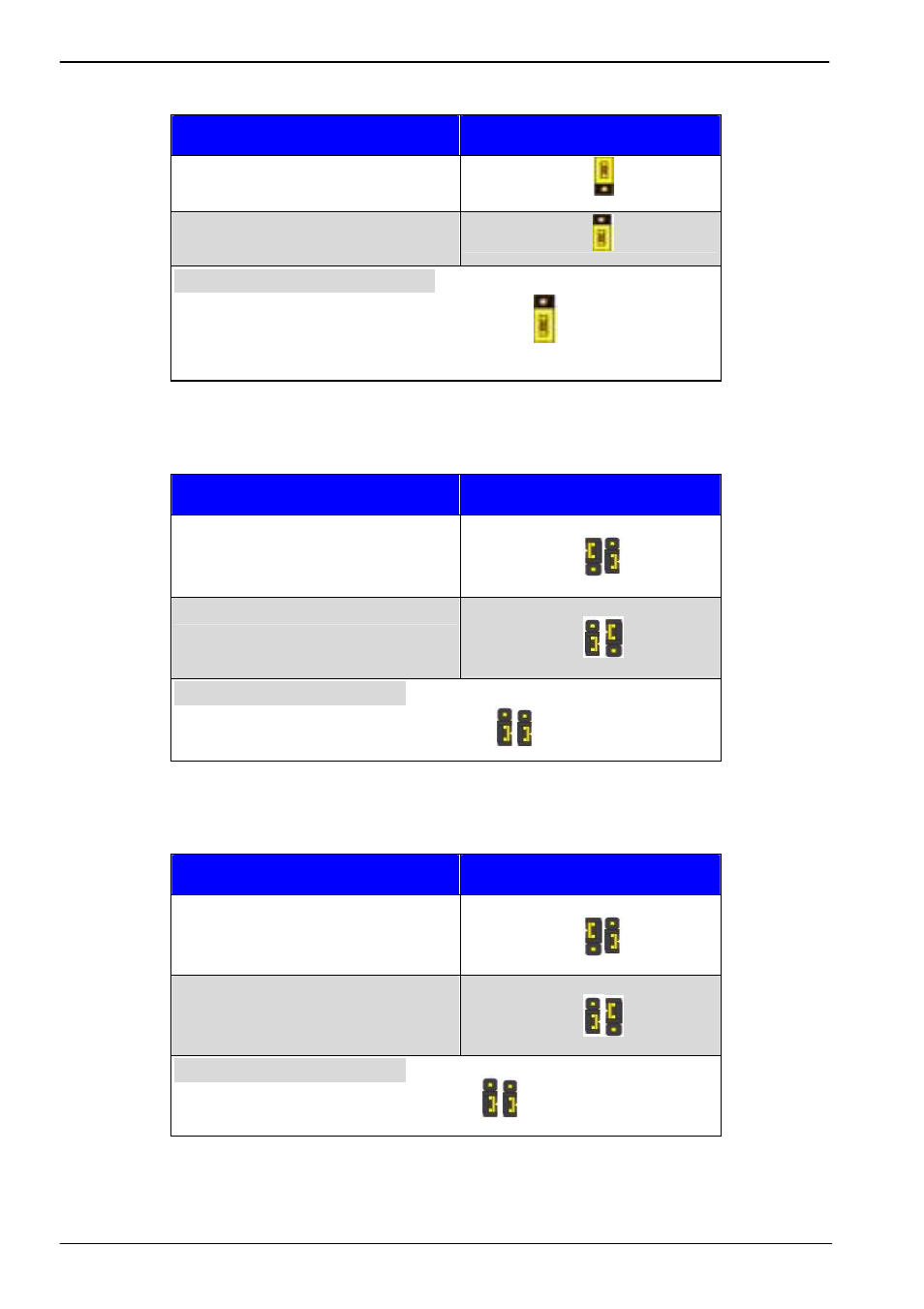

Jumper: JAT
Type: onboard 3-pin header

Power Mode

JAT

AT Mode

ATX Mode

Default setting: ATX Mode

Jumper: JP1 (COM 1)
Type: onboard 3 x 2-pin header

Power Mode

JP1

Pin1 with 5V signal

Pin9 with 12V signal

Default setting: 3-5, 4-6

Jumper: JP2 (COM 2)
Type: onboard 3 x 2-pin header

Power Mode

JP2

Pin1 with 5V signal

Pin9 with 12V signal

Default setting: 3-5, 4-6

1

2

5

6

1

2

5

6

1

3

1

5

2

6

1

3

1

3

1

5

6

2

1

1

2

5

6

5

6

2
