LN-D70 User’s Manual
-
20
-
z
2 DAC channels support 16/20/24-bit PCM format for 2 audio solution
z
Compatible with HD
z
Meets Microsoft WHQL/WLP 2.0 audio requirements

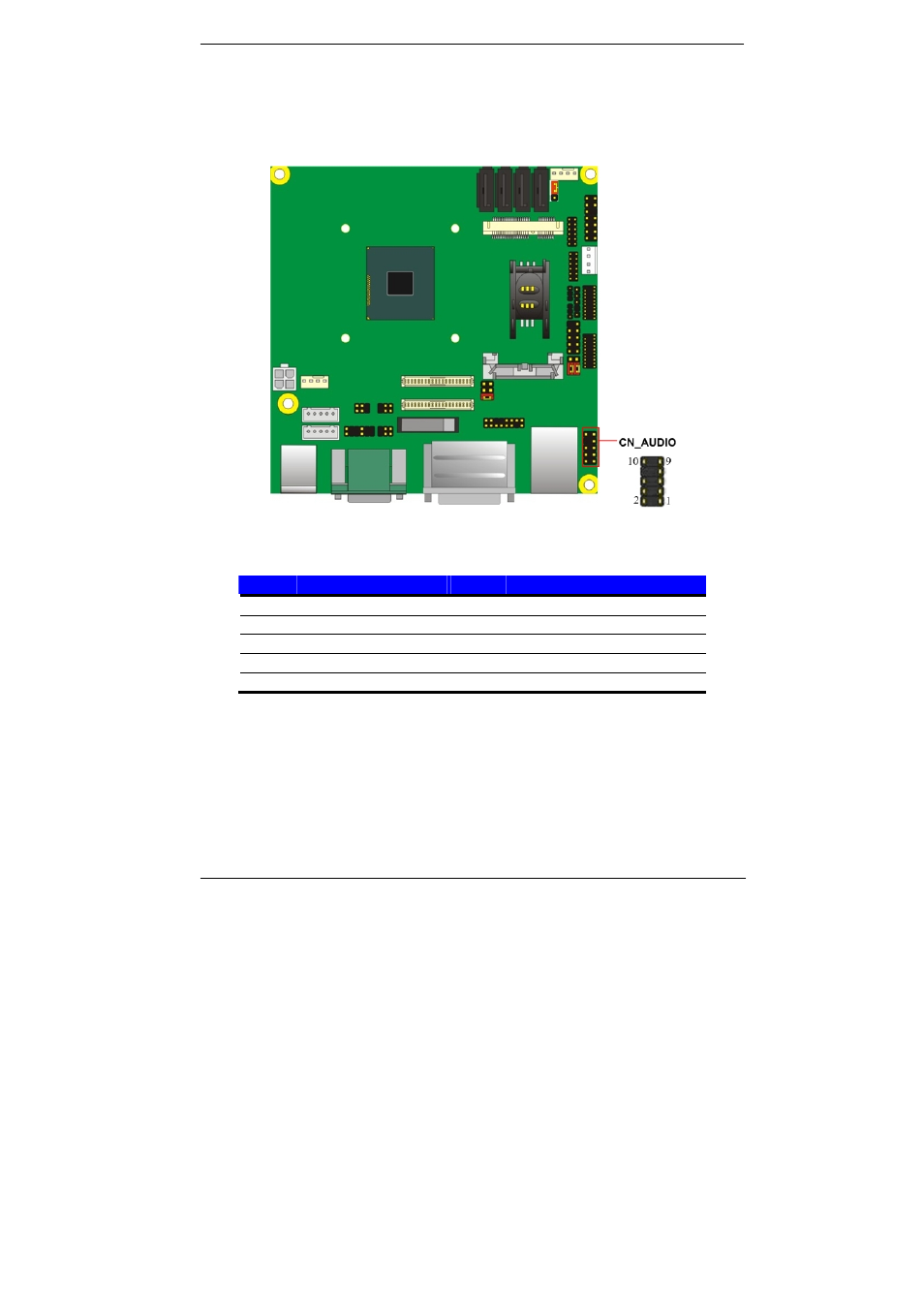

Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description
Pin
Description
1 MIC_L
2 Ground
3 MIC_R
4 N/C
5 Speaker_R
6 MIC
Detect
7 SENSE
8 N/C
9 Speaker_L
10
Speaker
Detect
