Input Signal: Select the incoming signal of your video feed. Select
from Composite, Digital (SDI), S-Video, and Component (YPbPr), de-
pending on your Compix system. Regardless of incoming signal, you
can output multiple signals simultaneously.
Fill-Out Type: Use [Overlay] if you have video going through the
Compix system (downstream configuration). Use [Graphic Only] if
the video and key are passing through the switcher or if you are us-
ing the Compix system as a standalone video output.
Genlock Mode: Select [Internal] if you have video going through the
Compix system. Compix will lock onto the incoming video and allow
for graphical overlays. [External BB] is for analog black burst only.
This setting is used for incoming sync from your generator or sync
device. [External Input] syncs through an incoming video feed. Use
this feature if black burst is not available.

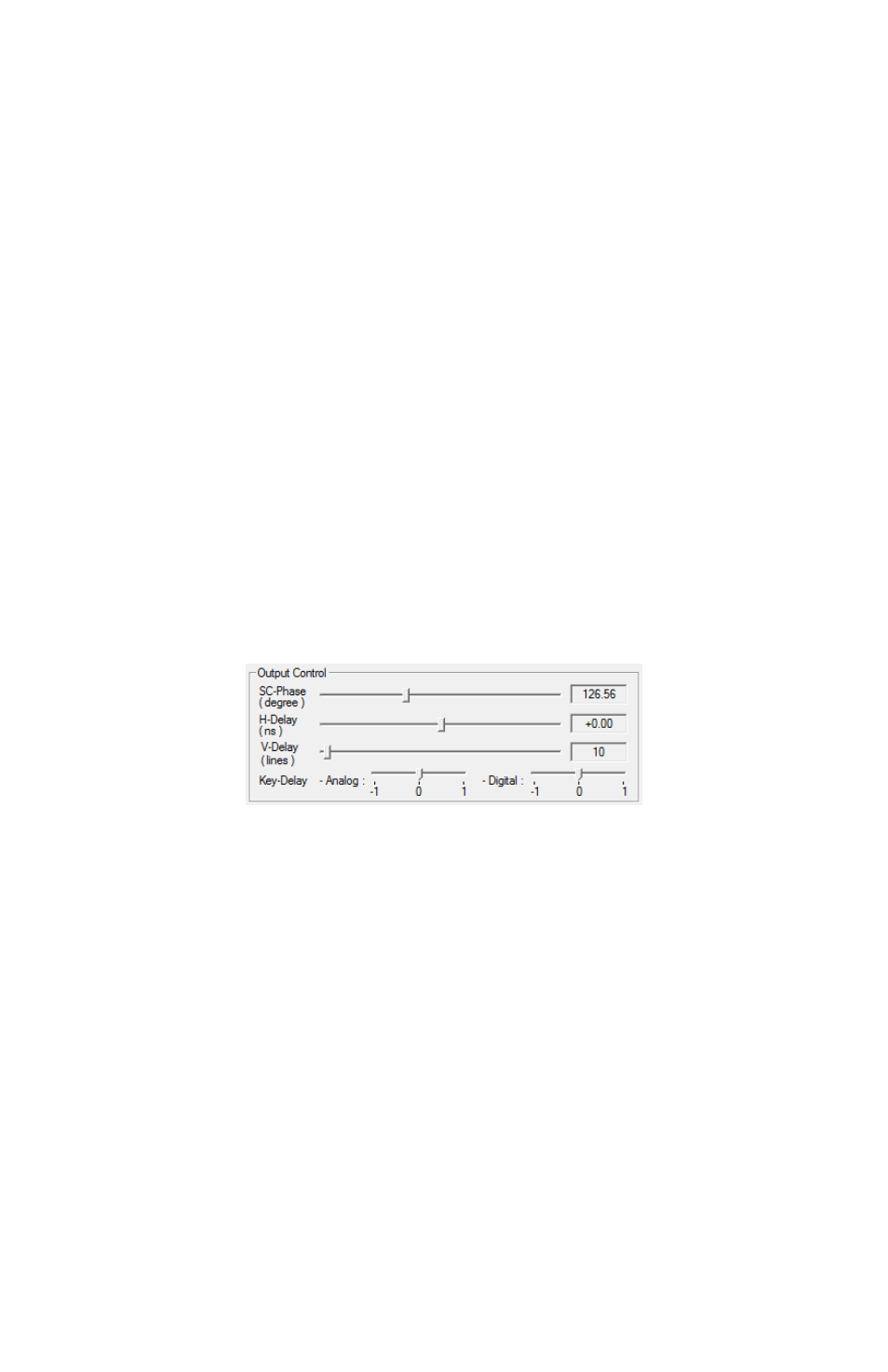

Output Control Section
Configuration: If connected to your switcher, manipulate these
settings to time your Compix system properly. It is recommended to
connect the Compix video output directly into a waveform monitor
and vectorscope before configuration. Also apply house black burst
to both Compix system and measurement equipment. The values are
in degrees, nano seconds, and lines for precise configuration. After
adjusting a bar, your can use the left and right arrow keys on your
keyboard for exact adjustments.
Note: Digital signals do not need sub-carrier adjustments, so the SC-
Phase bar is for analog signals only.
Key-Delay: Adjust the video output horizontally for key alignment.
