3. Safety precautions
General safety
Always carry out a visual and functional inspection of the bracket before
use. In case of any doubts the bracket must not be used. Please also
refer to section 6. Maintenance and care on page 5.
Load safety information
The maximum permitted working load of the bracket is 16 kg (35 lb)
(according to BGV C1) which corresponds to the weight of one
E12/E12-D loudspeaker.
The bracket must only ever be used vertically aligned whether
suspended or placed on top of a loudspeaker stand.
4. Assembly
[1]
[2]

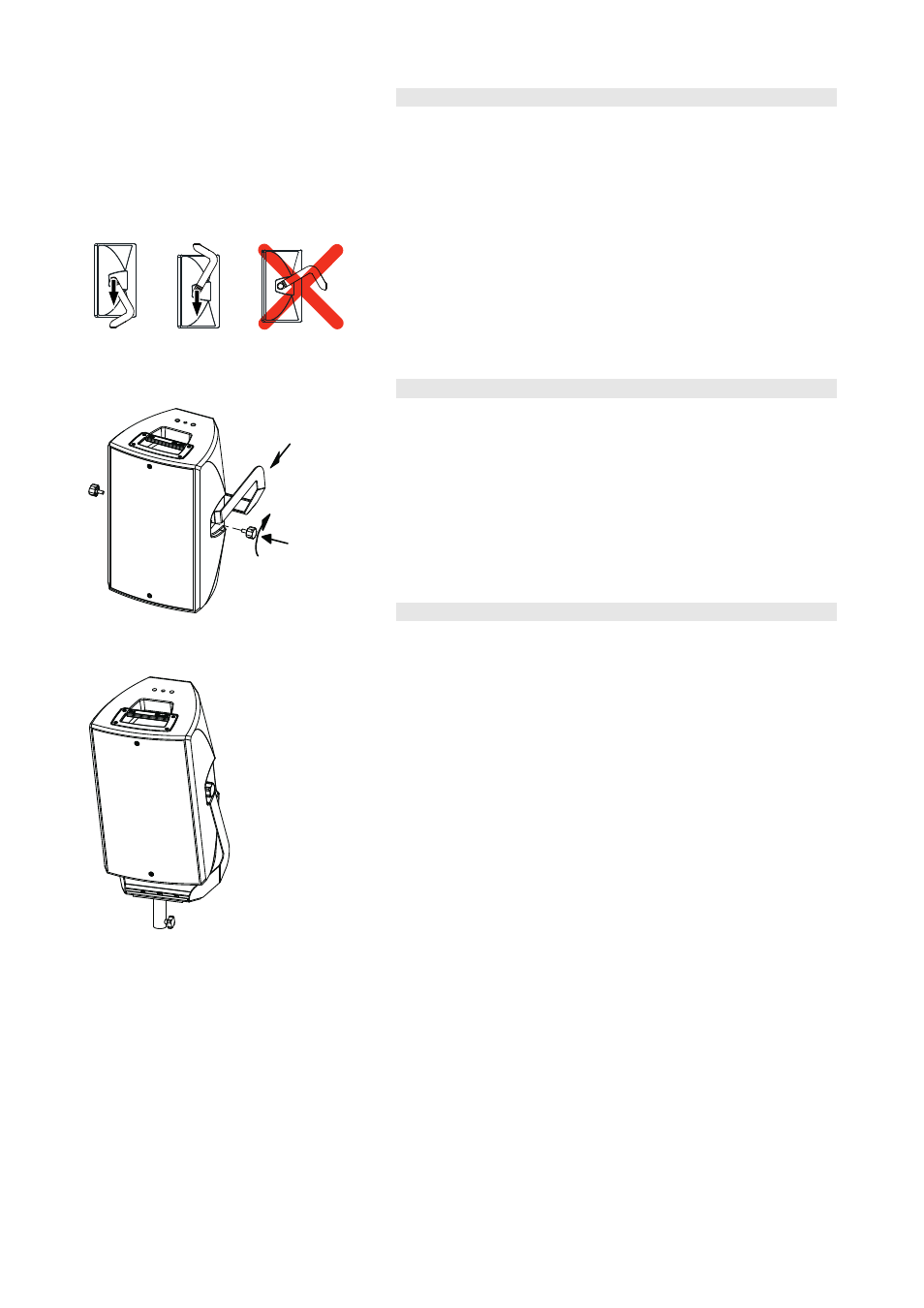

Fig. 5: Assembly
[2]
Fig. 6: Operation
The bracket is locked in place on each side of the cabinet using two
handbolts
[2].
Please do not use fixing screws other than supplied and specified.
No tools required.
1. Fit the bracket [1] from the rear of the loudspeaker into the
recessed areas of the cabinet side panels.
2. Fix the bracket to the cabinet using the two M10 handbolts [2].
5. Operation
The center of gravity of a E12/E12-D loudspeaker is in line with the
bracket’s axis of rotation. This prevents the vertical flying angle setting
from limiting freedom of movement by creating a twisting force on the
mounting support.
Vertical alignment
1. Slacken the handbolts [2].
2. Set the cabinet to the desired vertical angle.
3. Retighten the handbolts.
Horizontal alignment
The loudspeaker is aimed horizontally at the Loudspeaker stand adapter
or the TV spigot mounting.
Z5352 Mounting instructions (1.0 EN) Page 4 of 6
