User's manual K&F GRAVIS 8
KLING & FREITAG GMBH © 2015 Version 2.2 Page 12 of 25

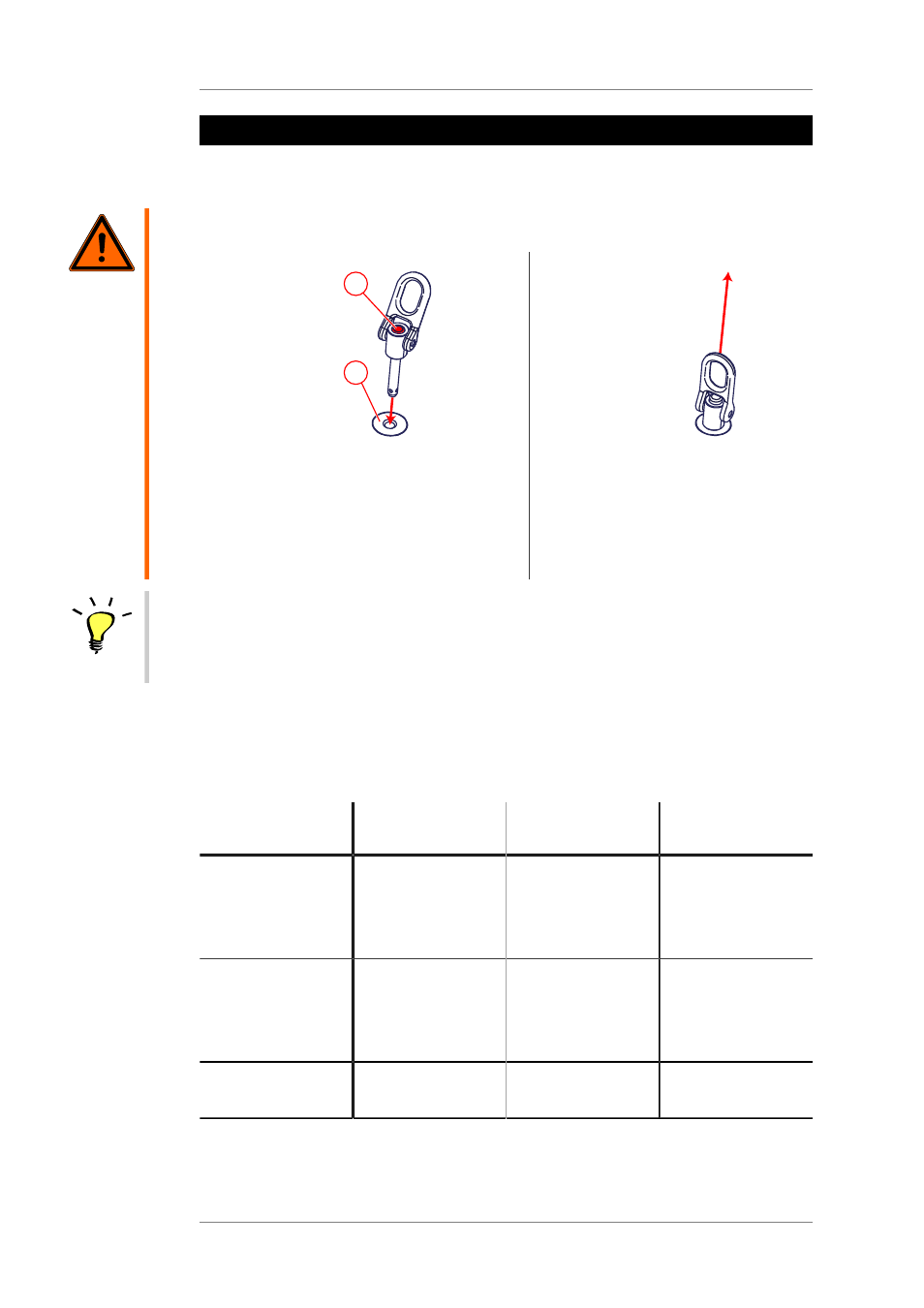

4. Suspending the Speakers
By using the K&F 'Lifting Pin' or the M10 x 17 eyebolts available as optional accessories from
Kling &Freitag, you can fly the speaker.
Warning
1. 2.
A
B
Push the release button A and
completely insert the lifting pin into
the flying point B. Let go of the release button when you
have completely inserted the bolt so
that the release button pops back up.
Ensure that you cannot pull out the
lifting pin any more.
Tip
For flying the loudspeaker or for fixing it on a wall or ceiling we recommend you to use the
accessories "Adjustable Speaker Mount GRAVIS 8", "U-Mount Wall/Ceiling Bracket GRAVIS 8"
or "Adjustable Wall Mount 50".
By using these accessories, you can easily adjust mounted speakers to the desired position.
Securing the Speakers (Secondary Safety Device)
The flying and securing point K&F 'VariPoint' and the eybolt or the K&F Lifting Pin are
suitable for securing a secondary safety device according to the German safety regulations
BGV C1.
Please note the following specifications for loads of more than 10 kg:
wire length wire diameter
max. falling
height
Wire rope
according
to DIN EN 56927
(without damping
element)
0.6 m / 1.0 m 5 mm 0.2 m
Wire rope
according
to DIN EN 56927
(without damping
element)
1 m 4 mm 0.2 m
Major Saveking
®
safety wire
0.6 m / 1.0 m 3-5 mm 0.2 m
