6. Configuration and Connecting Diagram
6.1 Controller Mode 'Full-Range'
If you want to operate/run the GRAVIS 8 in fullrangemode, please select the LSBlock Gra-8 FR.
Activate the filter Cluster for the top
speakers via Filter B if you wish to
operate several tops next to one another. If you need a higher bass level, activate
the filter BassBoost via Filter B for the top
speakers. BassBoost
6.2 Operations with an additional Subwoofer
If you want to use the GRAVIS 8 with an additional K&F Subwoofer, please select the LSBlock
Gra-8 LCut.

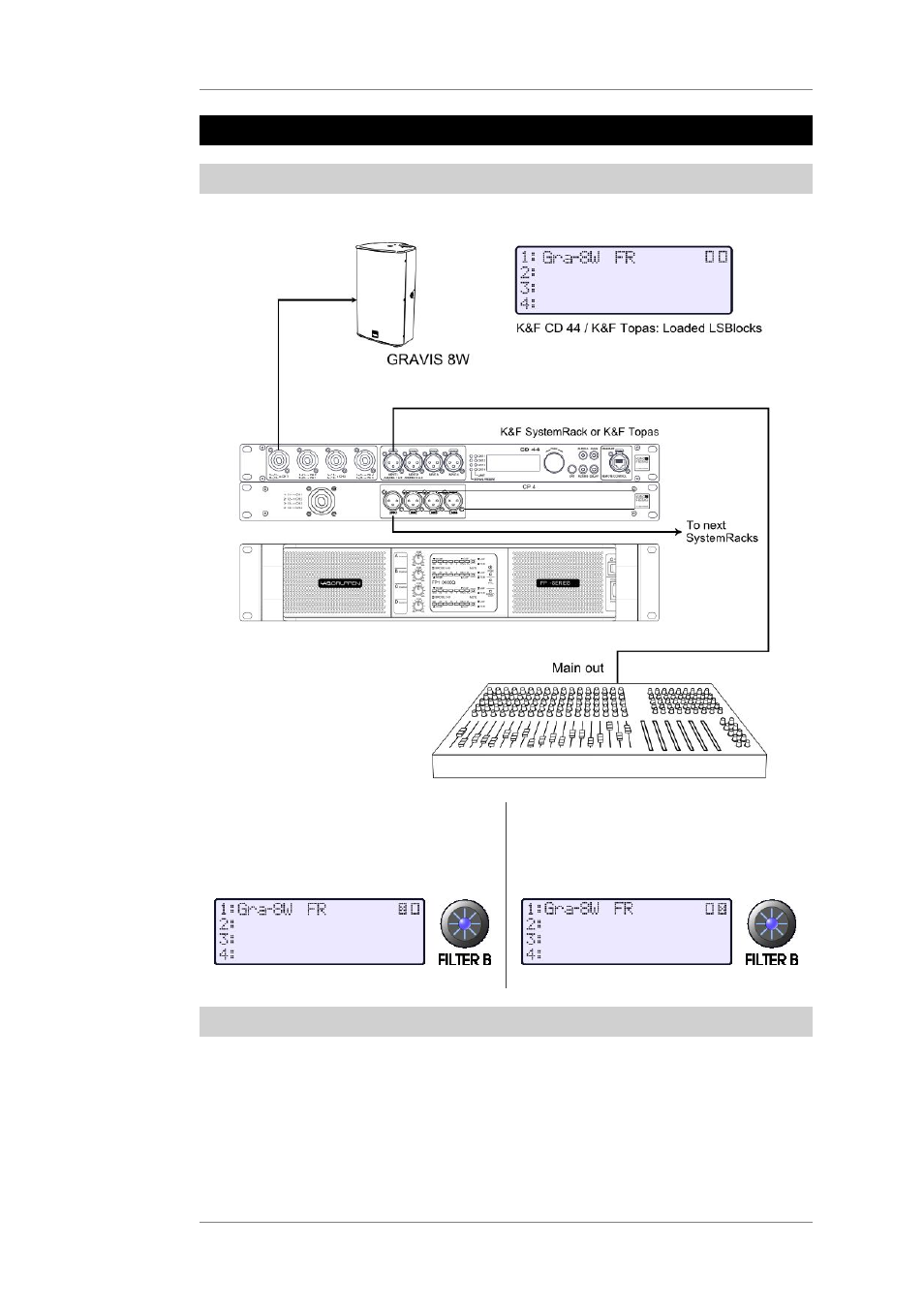

The following figure shows a sample combination of a GRAVIS 8 loudspeaker with a K&F-
NOMOS subwoofer.
