User’s Manual ACCESS SYSTEM
KLING & FREITAG GMBH ©1995-2009 Version 6.0, 17.03.2009 Page 31 of 60
Power
Distribution
8 10 11 12
9
CP 3
CP 1
Phase 1 / L1
max. 16A
Phase 2 / L2
max. 16A
Phase 1 / L1
max. 16A
Phase 3 / L3
max. 16A
CON N ECTOR PAN EL CP3
Made in Germany
Voltage:
Max. Total Output:
Protection Level :
Serial Number :
IP 40
115 / 230 VAC
3 x 16A
8) JUNCTION BOXES
Grounding sockets to receive 230V.
8a)
CP1: With this model, a total of max. 16A (not per socket!) can be received
from the 6 junction boxes.
8b) CP3: With this model, a total of max. 16A/phase (not per socket!) can be re-
ceived from the 6 junction boxes (2 sockets/phase), that means 3 x 16A!
9) MID-HIGH: Cable to the mid and high amplifier
This cable supplies the amplified output signal from the mid and high frequency power
amplifier. The signal is plugged into the „Sense Loop High + Mid/Low‘‘ connector of
the C5/9 System Controller and evaluated in the controller.
10) IN: Cable to the controller's ‘‘input‘‘
This cable supplies the input signal (from the front side of the connector panel) to
the input connector of the C5/9 Controller.
11) BASS A / BASS B: Cable to ‘‘bass amp out‘‘
This cable is connected to the respective speaker output of the bass power ampli-
fier. The signal is transmitted to the BASS SPEAKER OUT connector (see item above)
on the front side of the device.
12) TO BASS OUT: Cable to ‘‘bass amp input link‘‘
This cable receives the line level signal which has not been amplified but has been
processed by the controller from the input connector of the bass amplifier. This sig-
nal is linked to the BASS OUT connector (see item 4 above) on the front side of the
device.
9.1.1 Connector Panel CP1 und CP3 Technical Specifications
Inputs Signal LINE: XLR
Speaker signal Low/Mid-High: 4-pin Speakon connector
Speaker signal bass: open wire
Bass LINE: open wire
CP 1 230 V CEE 3P 1 x 16 A
CP 3 400 V CEE 5P 3 x 16 A
Outputs Signal LINE Link: XLR
Bass LINE: XLR
Bass speaker: 2 X EP 5
Top speaker: 2 X EP 5
Max. current capability
CP 1 Total max. 16 A from 6 grounding outlets
CP 3 Total max 3 x 16 A from 3x2 grounding outlets (2 / phase)
Switches Ground Lift (front)
Dimensions 483 mm (19‘‘ ) x 88 mm (2U) x 325 mm ( W x H x D)
Weight
CP 1 6.95 Kg
CP 3 7.05 Kg

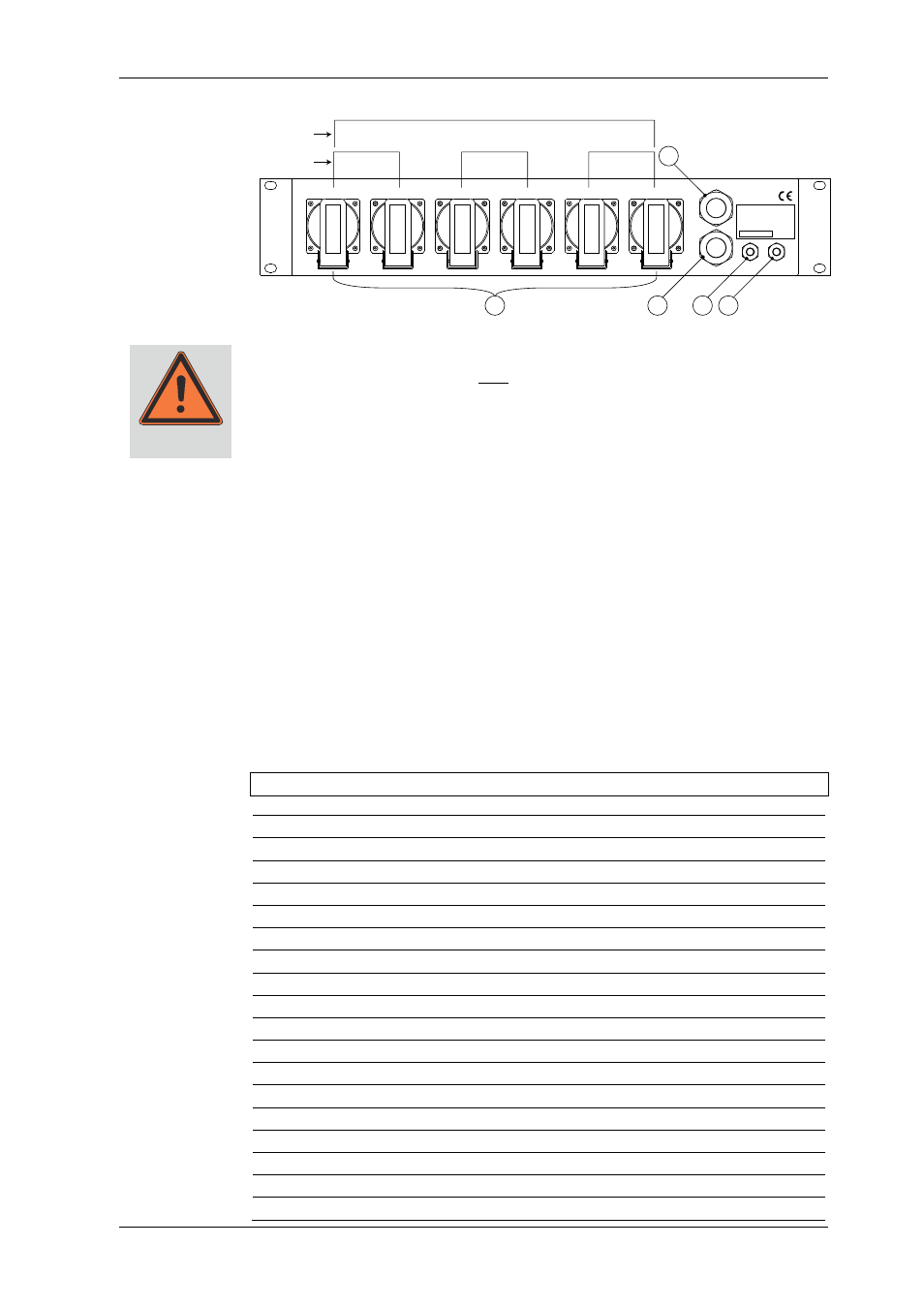

Rear View
Warning
