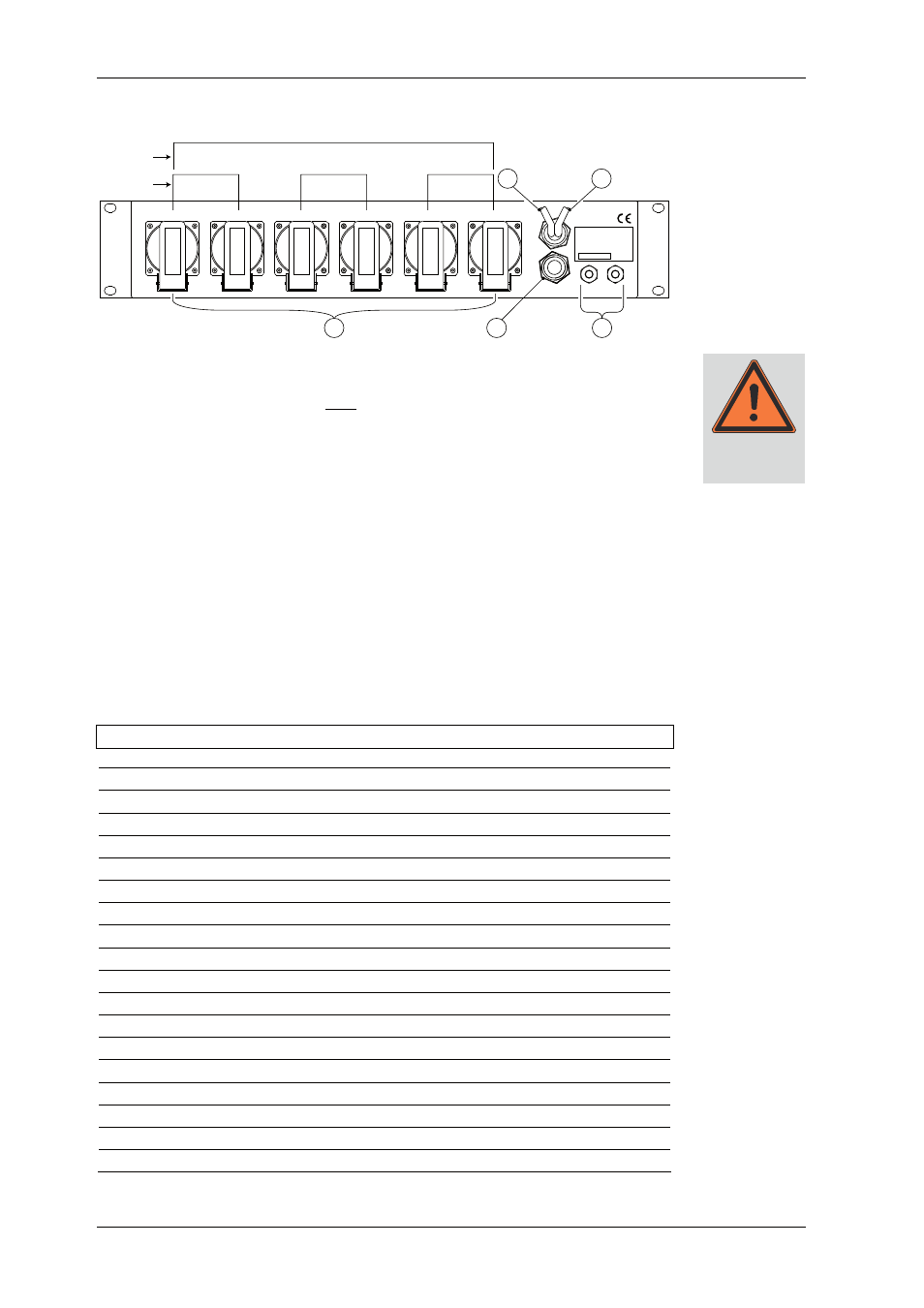

REAR VIEW
Power
Distribution
7
10
11
8
9
CP3-B
CP1-B
Phase 1 / L1
max. 16A
Phase 2 / L2
max. 16A
Phase 1 / L1
max. 16A
Phase 3 / L3
max. 16A
CONN ECTOR
PAN EL
CP1- B
Made in
Germany
Voltage:
Max. Total Output:
Protection Level
:
Serial Number
:
IP 40
115 / 230 VAC
3 x 16A
7)
JUNCTION BOXES
Grounding sockets to receive 230V.
7a)
CP 1: With this model, a total of max. 16A (not per socket!) can be received
from the 6 junction boxes.
7b)
CP 3: With this model, a total of max. 16A/phase (not per socket!) can be re-
ceived from the 6 junction boxes (2 sockets/phase), that means 3 x 16A!
8)
TO INPUT: Cable with XLR-male connector to the controller's "input"
This cable supplies the input signal from the front side of the connector panel to
the input connector of the C10 Controller.
9)
BASS OUT: Cable with XLR-female connector from the „BASS OUT‘‘ connector of
the C10 Controller. The signal can then be received from the BASS OUT connector
at the front of the panel (4).
10)
OUTPUT BASS A / OUTPUT BASS B: This cable is connected to the respective
speaker output of the bass power amplifier. The signal is transmitted to the BASS
SPEAKER OUT connector (5) on the front side of the device
11)
SENSE BASS A / SENSE BASS B: These cables provide the signal of the power
amplifier for the corresponding SENSE INPUT connectors of the C10 Controller
where the signal is evaluated.
9.2.1
Connector Panel CP1-B und CP3-B Technical Specifications
Inputs
Signal LINE: XLR
Speaker signal Low/Mid-High: 4-pin Speakon connector
Speaker signal Bass: open wire
Bass LINE: open wire
CP 1
230 V CEE 3P 1 x 16 A
CP 3
400 V CEE 5P 3 x 16 A
Outputs
Signal LINE Link: XLR
Bass LINE: XLR
Bass speaker: 2 X EP 5
Top speaker: 2 X EP 5
Max. current capability
CP 1
Total max. 16 A from 6 grounding outlets
CP 3
Total max 3 x 16 A from 3x2 grounding outlets (2 / phase)
Switches
Ground Lift (front)
Dimensions
483 mm (19‘‘ ) x 88 mm (2U) x 325 mm (W x H x D)
Weight
CP 1
6.95 kg
CP 3
7.05 kg
