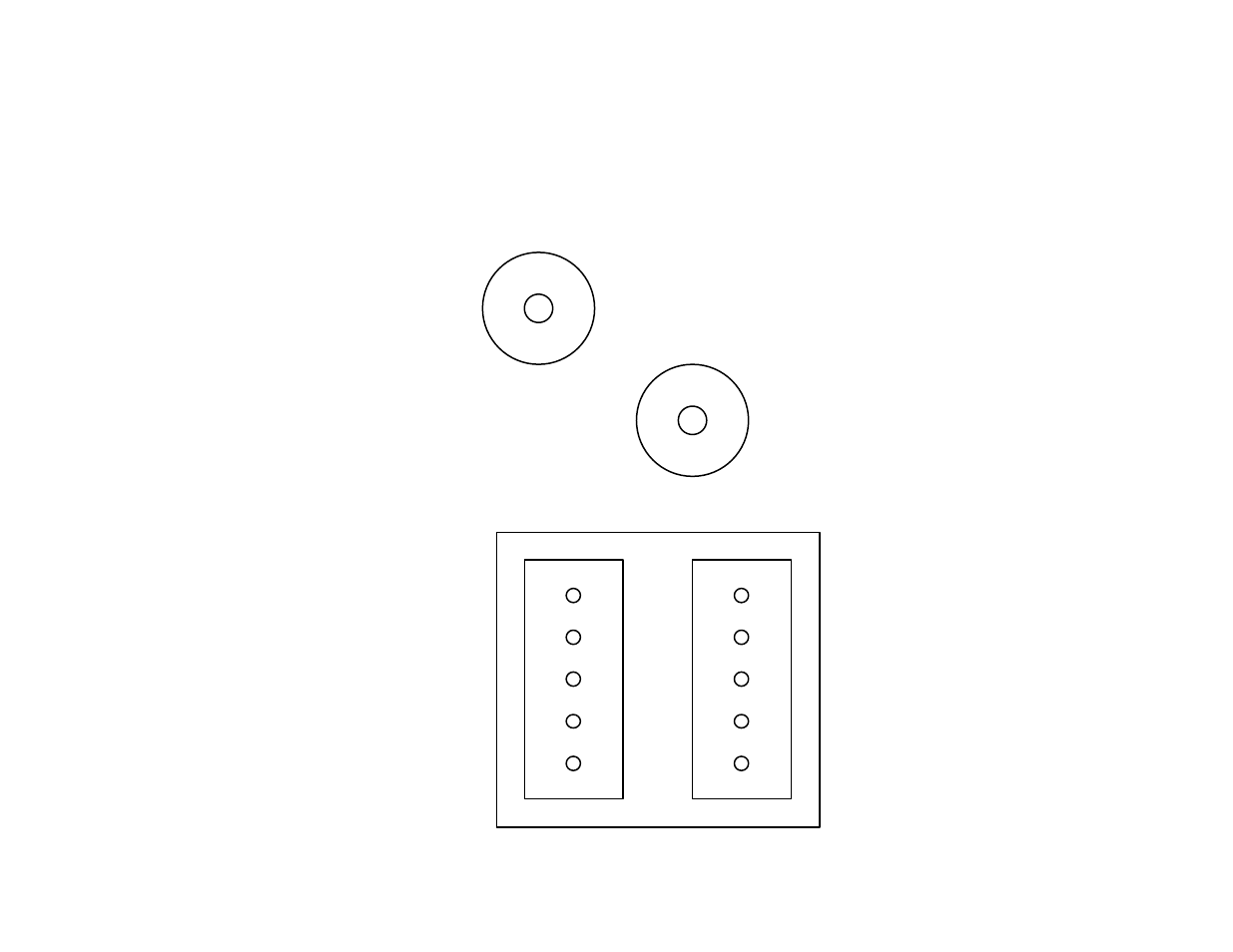

Program Source to Controlling R177
Master is shown. For Slave Monaural connections, a single connector is provided. For connections to a Master used
as a Slave, connect to left side connectors only. One set of Audio/Video switching connections are shown. All
subsequent connections should be made in the same manner.
Video Out
Video In
R
Audio Out -
Audio Out +
GND
Audio In -
Audio In +
Audio In +
Audio In -
GND
Audio Out +
Audio Out -
Figure 3
L
