Chapter 2: Jumpers and Connectors
NEX 608 User Manual

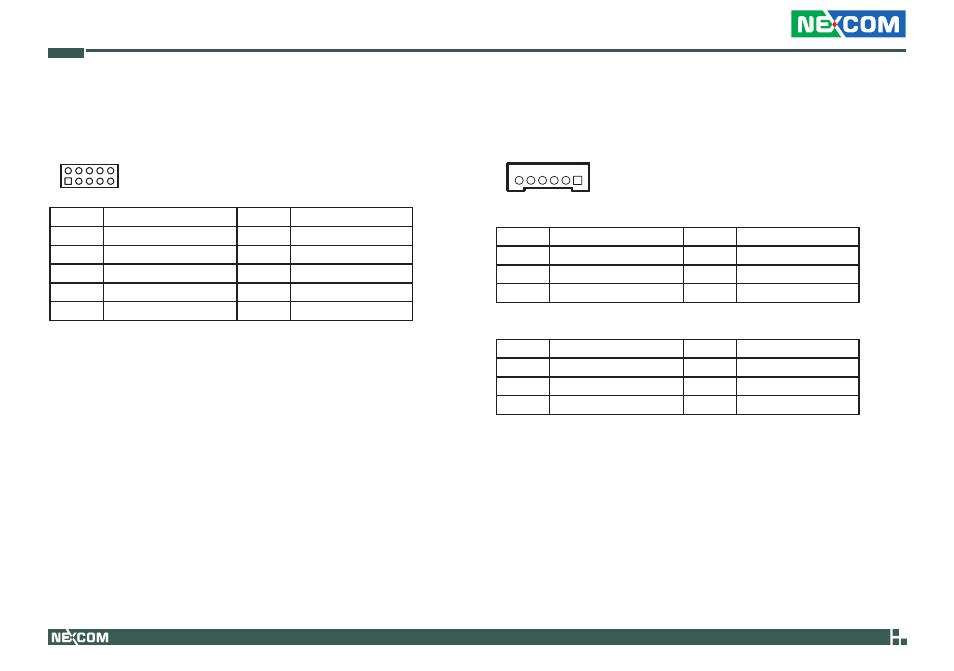

GPIO Connector
Connector type: 2x5 10-pin header, 2.0 mm pitch
Connector location: J12
1
2
9
10
Pin Definition Pin Definition
1 +5V 6 GP25(Pin59)_output2
2 GND 7 GP22(Pin56)_Input3
3 GP20(Pin52)_Input1 8 GP26(Pin60)_output3
4 GP24(Pin58)_output1 9 GP23(Pin57)_Input4
5 GP21(Pin54)_Input2 10 GP27(Pin61)_output4
USB4 and USB5 Connectors
Connector type: 1x6 6-pin boxed header, JST-2.0mm-M-180
Connector location: J14 (USB4) and J15 (USB5)
6 1
Pin Definition Pin Definition
1 +5V 4 Data 3-
2 Data 2- 5 Data 3+
3 Data 2+ 6 GND
J14
Pin Definition Pin Definition
1 +5V 4 Data 5-
2 Data 4- 5 Data 5+
3 Data 4+ 6 GND
J15
