Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 12 NEX 981 User Manual

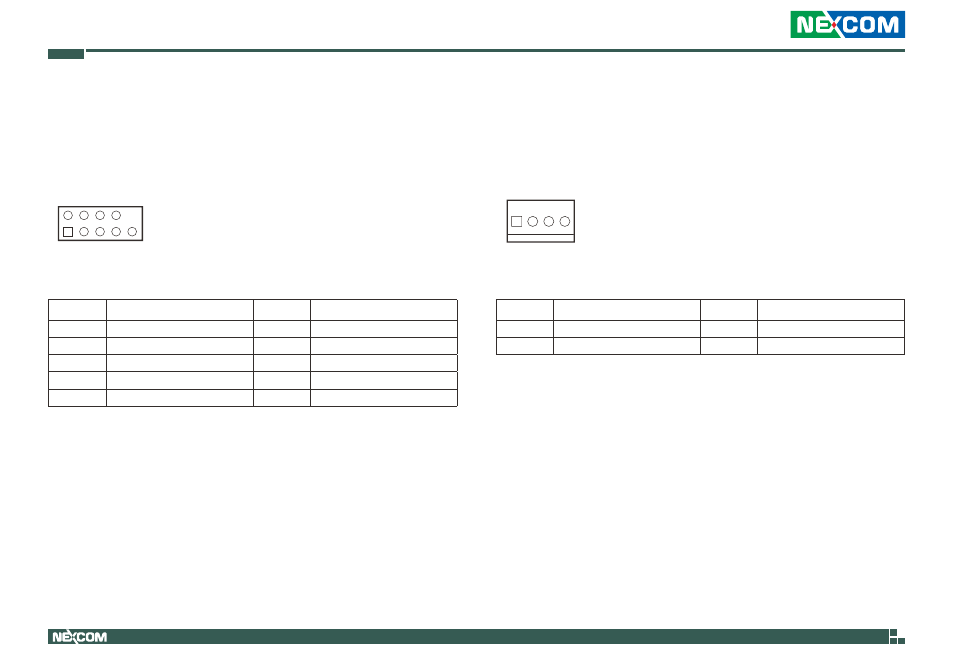

Chapter 2: Jumpers and Connectors
System Panel Header
Connector type: 2x5 10-pin header
Connector location: PANEL1
Pin Definition Pin Definition
1 HDLED+ 2 HDLED-
3 GND 4 RESET#
5 GND 6 PLED+
7 PLED- 8 PWRBTN#
9 GND
1 5
6 10
4-Pin Chassis Fan Connector (+12V)
Connector type: 1x4 4-pin header
Connector location: CPU_FAN1 and CHA_FAN1
Pin Definition Pin Definition
1 GND 2 +12V
3 CPU_FAN_SPEED 4 FAN_SPEED_CONTROL
1 4
