Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
18
NSA 1150 User Manual
Chapter 2: Jumpers and Connectors

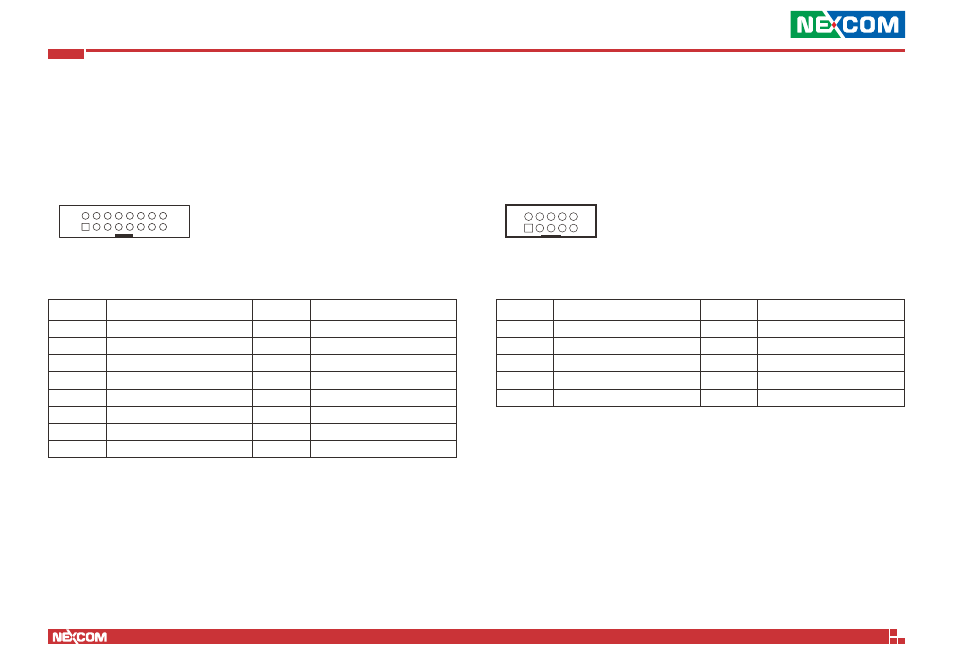

VGA Connector
Connector type: 2x8 16-pin header, 2.0mm pitch
Connector location: CN4
Pin
Definition
Pin
Definition
1
DACROA
2
DACGOA
3
DACBOA
4
X
5
GND_CRT
6
GND_CRT
7
GND_CRT
8
GND_CRT
9
VGA_VCC
10
GND_CRT
11
X
12
DDC_DATAO
13
AHSYNCO
14
AVSYNCO
15
DDC_CLKO
16
X
1
2
15
16
COM 1 Connector
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: COM1
Pin
Definition
Pin
Definition
1
SP_DCD2
2
SP_RXD2
3
SP_TXD2
4
SP_DTR2
5
COM2_GND
6
SP_DSR2
7
SP_RTS2
8
SP_CTS2
9
SP_RI2
10
COM2_GND
2
1
10
9
