20 Multi Format LCD Monitor
●
MONITER ID
- Used to set the ID of each monitor for the
TVLogic control protocol or DYNAMIC UMD
using RS-422 communication.
- Available values are between 0,1,2 ~ 124.
- Right screen in PBP mode is automatically set
to +1 of the monitor ID.
●
UMD DISPLAY (Under Monitor Display)
- Used to set input source ID mode.
- Available modes are UMD, ANC, D-UMD(S-
8C), D-UMD(S-16C), D-UMD(D-8C) and OFF.
- If UMD menu is selected, characters or tally
data in the black bar displays on the bottom
of the screen. The vertical aspect ratio of the
image changes on the screen as the bar on
the bottom of screen appears.
- In the USER ASPECT mode, the UMD bar
displays semi-transparently and the screen
keeps its USER ASPECT ratio.
* UMD : Displays user customized 8 characters
on screen.
* ANC : Displays characters embedded in SDI
signal.
* D-UMD(S-8C) : Displays incoming data of 8
characters and tally signal from TSL protocol
(V3.1).
* D-UMD(S-16C) : Displays incoming data of 16
characters and tally signal from TSL protocol
(V3.1).
* D-UMD(D-8C) : Displays incoming data
of two pairs of 8 character strings and tally
signals from TSL protocol (V3.1).
- In PBP mode, even if D-UMD(S16C),
D-UMD(D-8C) and D-UMD(S-8C) are selected,
only D-UMD (S-8C) activates.
- In PBP mode, each D-UMD(S-8C) for left
screen and right screen are activated and
adjustment for each setting is available.
●
UMD CHARACTER
- Used to customize the characters for UMD.
- Alphabets, numbers and special symbols are
available. (Max. 8 characters)
●
D-UMD TALLY TYPE
- Tally type configuration setting in D-UMD(D-
8C), UMD Display.
- Configuration values are DEFAULT, USER
COLOR, CHARCTER, BG .COLOR, USER TALLY,
USER CHAR and USER BG.
●
TALLY1 COLOR ~ TALLY4 COLOR
- This item sets the color of each TALLY1,
TALLY2, TALLY3 and TALLY4 .
- Available color settings are Red, Green and
Yellow.
●
B0:0 B1:0 ~ B0:1 B0:1
- The Byte0, Byte1 of TSL Protocol Control Byte
sets the color of the input conditions.
- Available colors are OFF, WHITE, RED, GREEN,
BLUE, YELLOW, CYAN and MAGENTA.

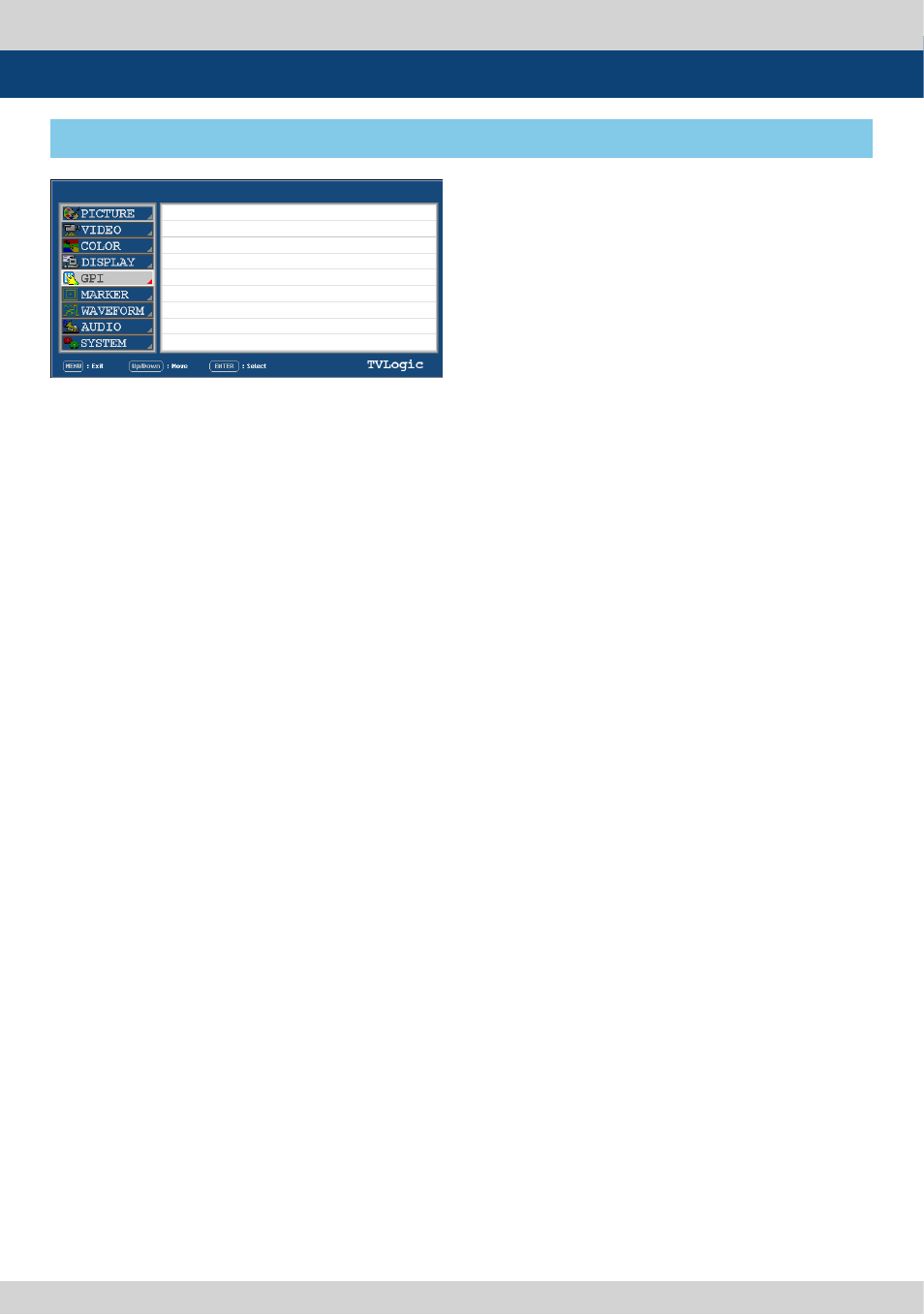

LVM-247W SDI A
[5] GPI
5. Menu Operations
PAGE II >> PAGE III
MONITOR ID
UMD DISPLAY
UMD CHARACTER
D-UMD TALLY TYPE
TALLY 1 COLOR
TALLY 2 COLOR
TALLY 3 COLOR
TALLY 4 COLOR
O
OFF
CHANNEL L1
CHANNEL L2
OFF
OFF
OFF
OFF
