3.11 Attaching Tops to Subs
Rigging
E-Series | Rigging
Ground Stacked
1. Place E218 cabinets where the Blueprint AV™ design
specifies.

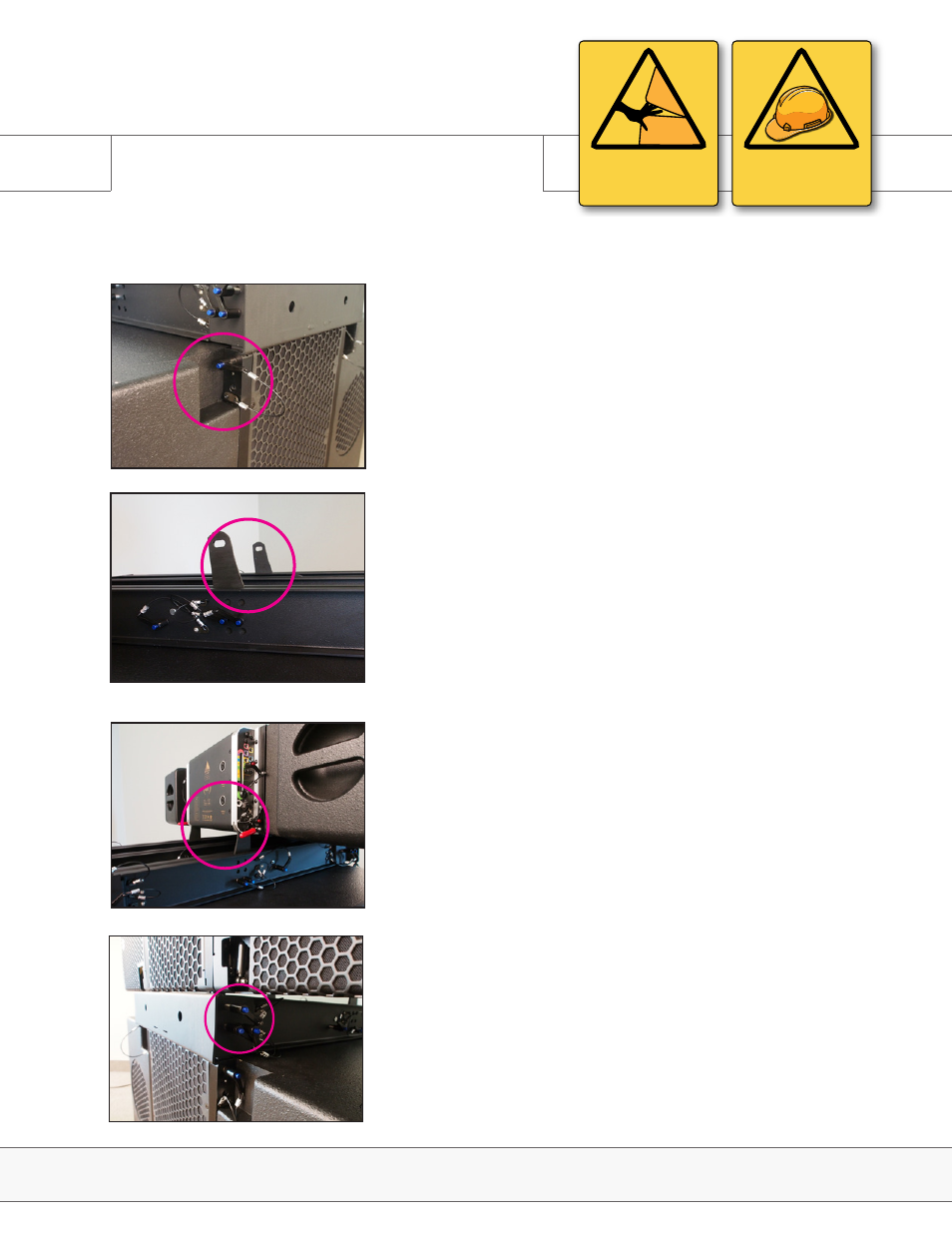

2. Attach the E-Frame Full Line to the top E218 cabinet and se-
cure in place with the push pins provided with the E218. (Fig. 1)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
WARNING
SAFETY RISK
PAY SPECIAL ATTENTION
PINCH POINT
CAN CAUSE SEVERE
PERSONAL INJURY
The E-Frame Full Line is designed to allow all members of the E-Series family to be safely rigged to one another,
whether it is in a ground-stacked or flown scenario.
5.Release the front rigging pieces by opening the black levers on
the front of the E12/E15.
6. Secure in place to the E-Frame Full Line using the top, front
push pin. (Fig. 4)
7. Add cabinets as specified by the Blueprint AV™ design.
4. Set the E12/E15 red lever to “Spring” mode and place the
cabinet on the rigging frame, confirm the rear rigging is locked.
(Fig. 3)
3. Make sure the Stacking Plates are in the up position, and se-
cured with the push pins provided. The position of the Stacking
Plates is adjustable, follow what the Blueprint AV™ mechanical
tab displays. (Fig. 2)
