APC-3X65 User Manual 29

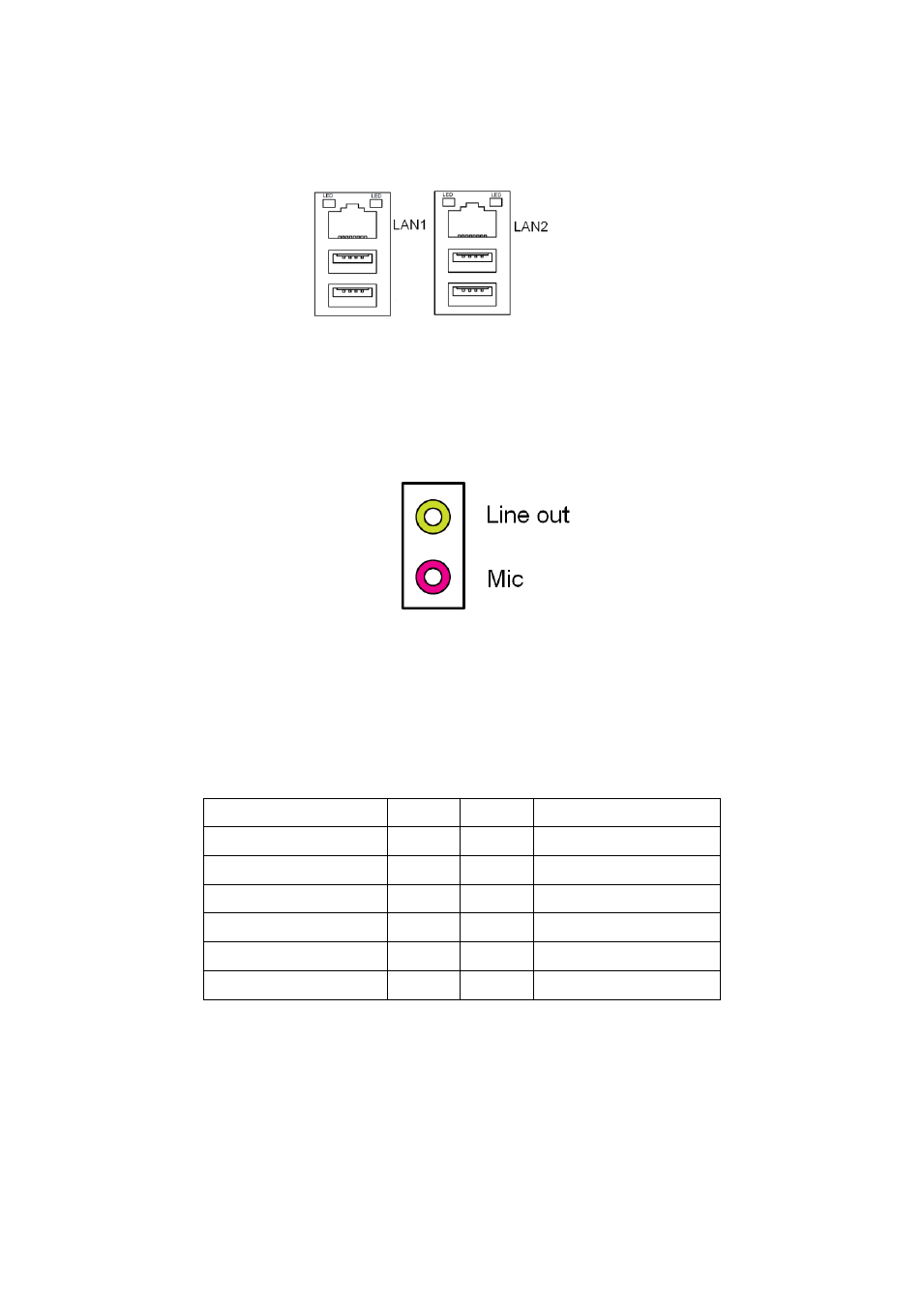

29. LAN1/LAN2:
(RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports are provided.
Used Intel 82583V chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the
left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of
LAN.
30. JACK :
(Diameter 3.5mm Double stack Jack), HD Audio port, An onboard Realtek ALC662 codec is used to
provide high quality audio I/O ports. Line Out can be connected to a headphone or amplifier, MIC is
the port for microphone input audio.
31. AUDIO(option):
(2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662 codec is used to provide
high-quality audio I/O ports. Line Out can be connected to a headphone or amplifier. Line In is used
for the connection of external audio source via a Line in cable. MIC is the port for microphone input
audio.
Signal Name Pin# Pin# Signal Name
SPK_OUTL_P 1 2 SPK_OUTR_P
SPK_OUTL_N 3 4 SPK_OUTR_N
FRONT_JD 5 6 LINE1_JD
LINE-IN-L 7 8 LINE-IN-R
MIC2-IN-L 9 10 MIC2-IN-R
Ground 11 12 MIC2_JD
32. BUZZ:
Onboard buzzer.
