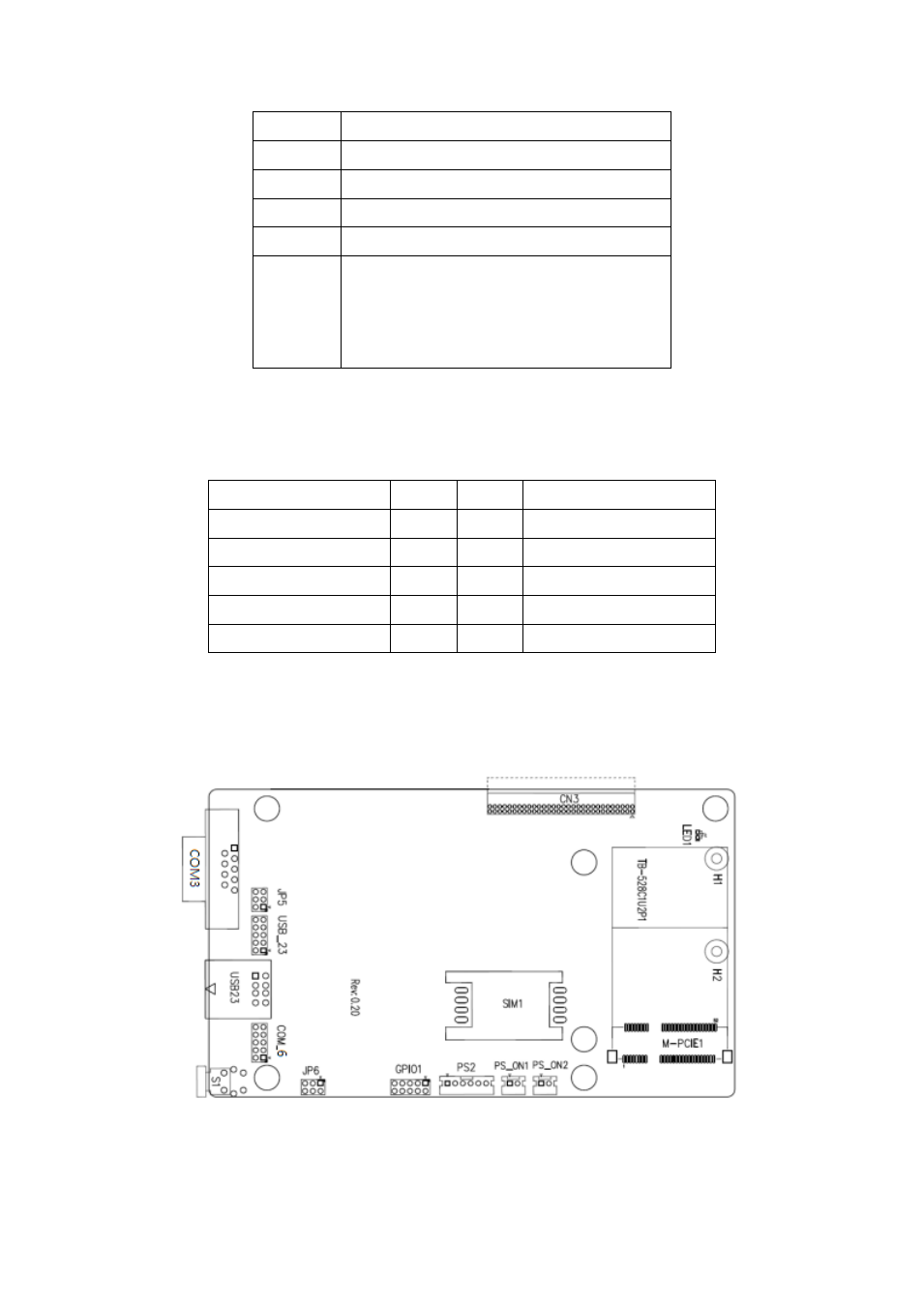

ARCHMI-8XX Series User Manual 52
4 DTR (Data Terminal Ready)
5 Ground
6 DSR (Data Set Ready)
7 RTS (Request To Send)
8 CTS (Clear To Send)
9 JP6 Setting:
Pin1-2: RI (Ring Indicator) (default)
Pin3-4 : 5V Standby power (option)
Pin5-6: 12V Standby power (option)
COM_6（option）：
(2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are
provided. They can be used directly via COM cable connection.
Signal Name Pin# Pin# Signal Name
DCD 1 2 RXD
TXD 3 4 DTR
Ground 5 6 DSR
RTS 7 8 CTS
JP6 Setting: RI/5V/12V 9 10 NC
43. TB-528C1U2P1/TB-528C1U2（option）:
SBC-7111 Riser Card, TB-528C1U2P1 CN3 connect to SBC-7111 CN3 pin Header.
TB-528C1U2P1 Top：
CN3：
(1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header.
