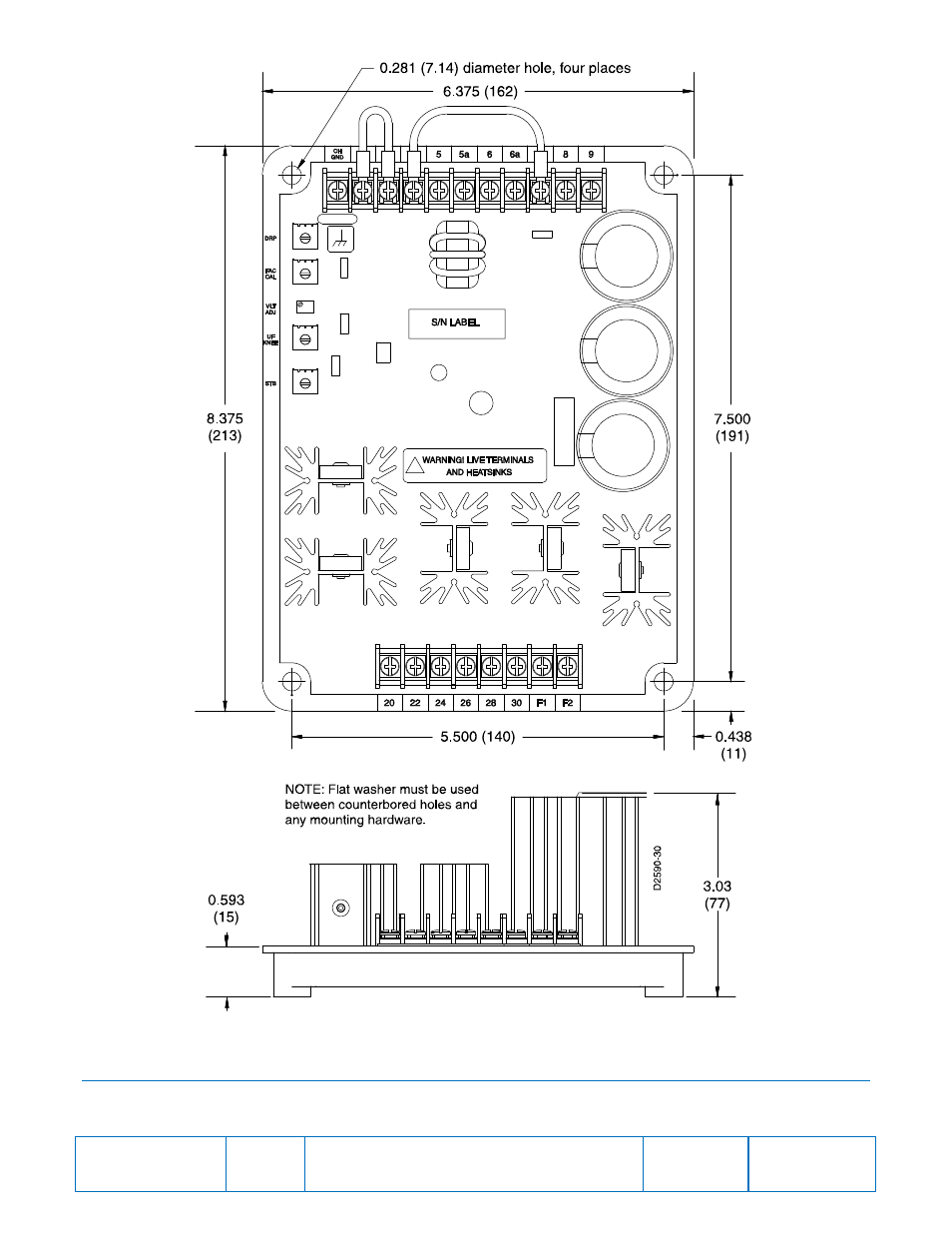

Figure 6. Mounting Dimensions
CONNECTIONS
Before connecting the voltage regulator into your system, review the connection diagrams of Figures 7 and 8 and
the terminal descriptions listed in Table 1.
