Table 2. Recommended Wire Sizes
Terminal
Recommended
Wire Size
L1, L2, L3, E1, E2, E3,
1, and 2 14 AWG
F1, F2, F+, F–, 3, 4, 23,
and 24 12 AWG
Page
2
First Printing: 11/73
Revised: 01/07
Revision
B
Publication
903700099X
MVC terminal and fuse locations are illustrated in
Figure 6.

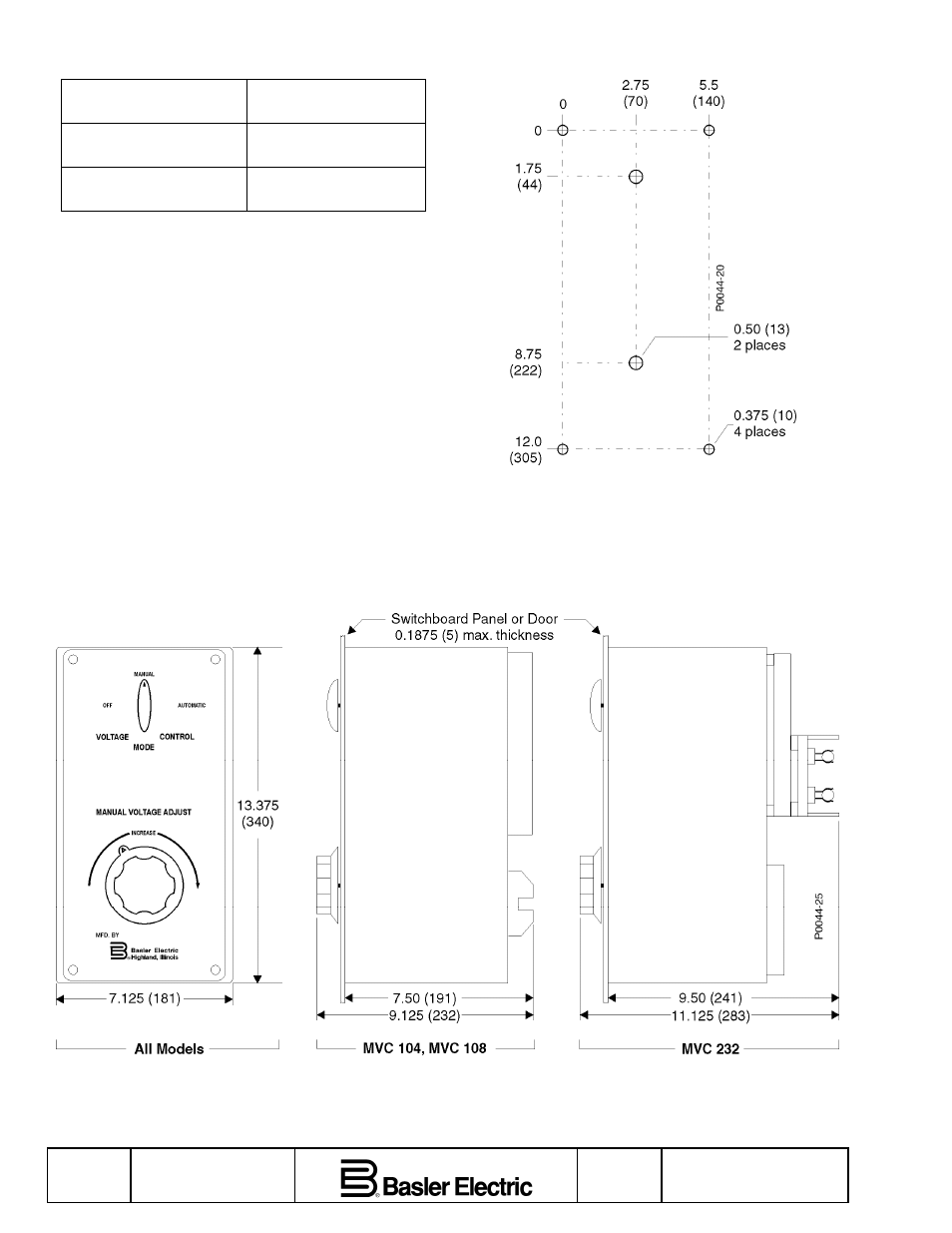

Figure 1. Panel Drilling Dimensions
Figure 2. Outline Dimensions
