Figure 12 – Basler Electric BE2000E User Manual
Page 38
Advertising
30
9287500995 Rev B

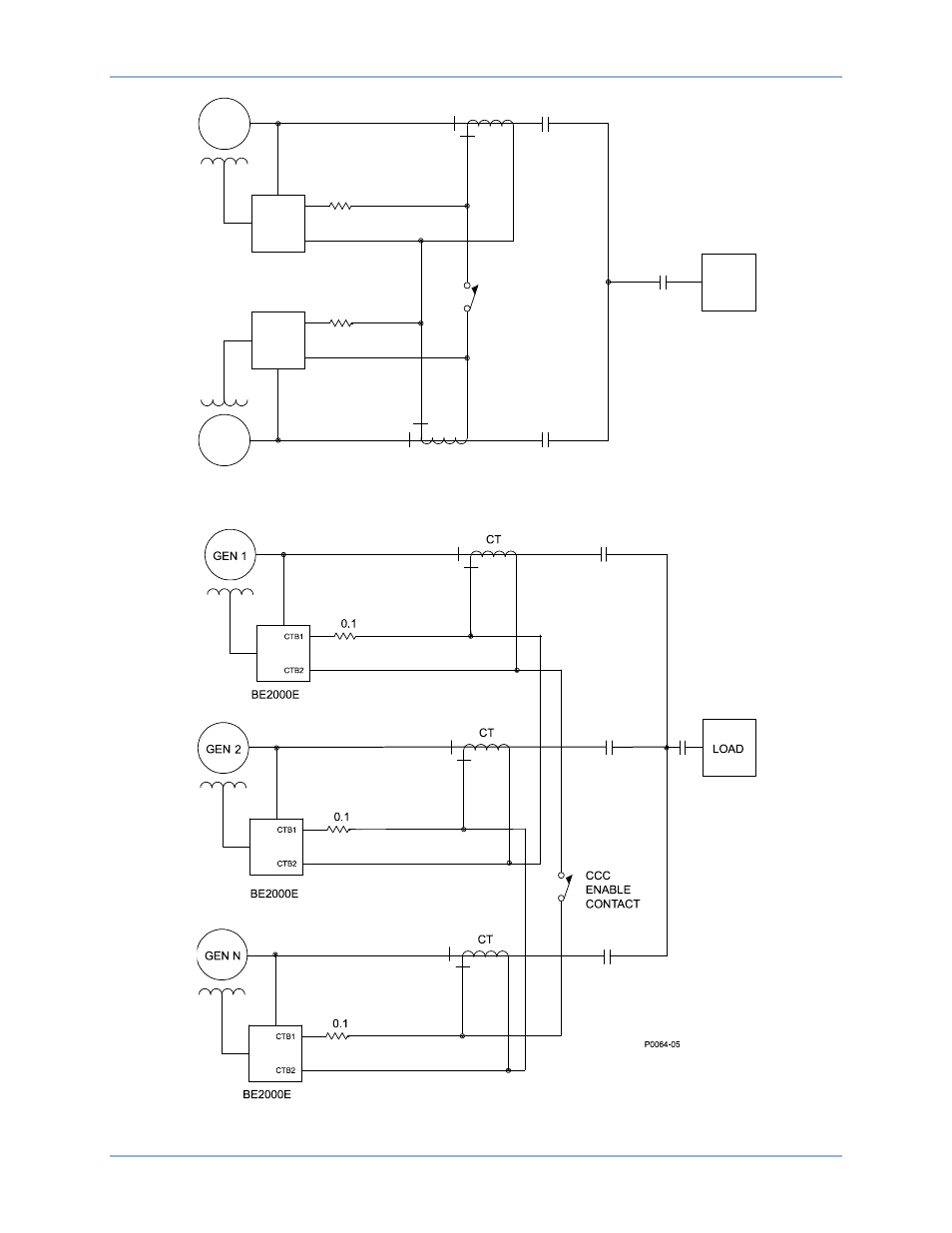

Figure 12. Cross-Current (Reactive Differential) Connections for Two Generators
Figure 13. Cross-Current (Reactive Differential) Connections for Three or More Generators
GEN 1
GEN 2
CTB1
CTB2
BE2000E
CTB1
CTB2
BE2000E
0.1
0.1
CT
CT
LOAD
CCC
ENABLE
CONTACT
P0064-04
Installation
BE2000E
