LBO-DVI-AD User’s Manual
Link Bridge
TM Fiber Optic DVI Video ConvertingTransmitter System
Broadata Technical Support, (800) 214-0222 16

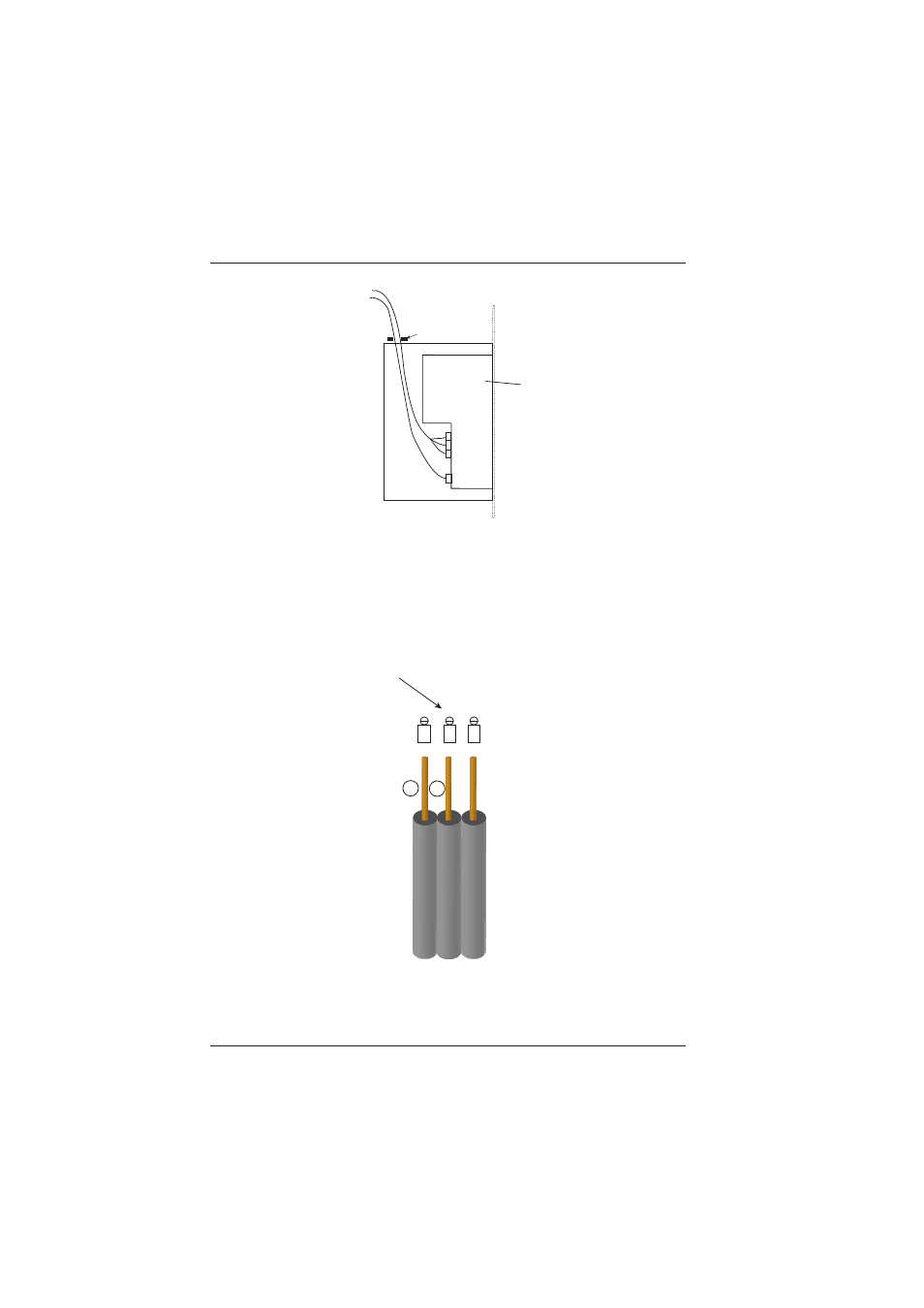

Figure 2-6
In-wall fiber/power cable installation
Figure 2-7
Power Connection
LBO-DVI-AD-WP
Unit
Clamp
Power
Wire
Fiber
Cable
+12V
GND
Wall
Junction Box
CHASSIS
Link Port
+12V GND CHASSIS
+ _
Captive
Screw
Connector
E
