Mini-DVI-AD User’s Manual
Miniature Multimode Fiber Optic DVI Transmission System
Broadata Technical Support, [email protected] 7
2.0 SETUP
The BCI Mini-DVI-AD Series units are used in pairs. One Mini-DVI-AD-T
transmitter unit is located at the near-end and connected through one
optical fiber, to the Mini-DVI-AD-R receiver located at the far-end of the

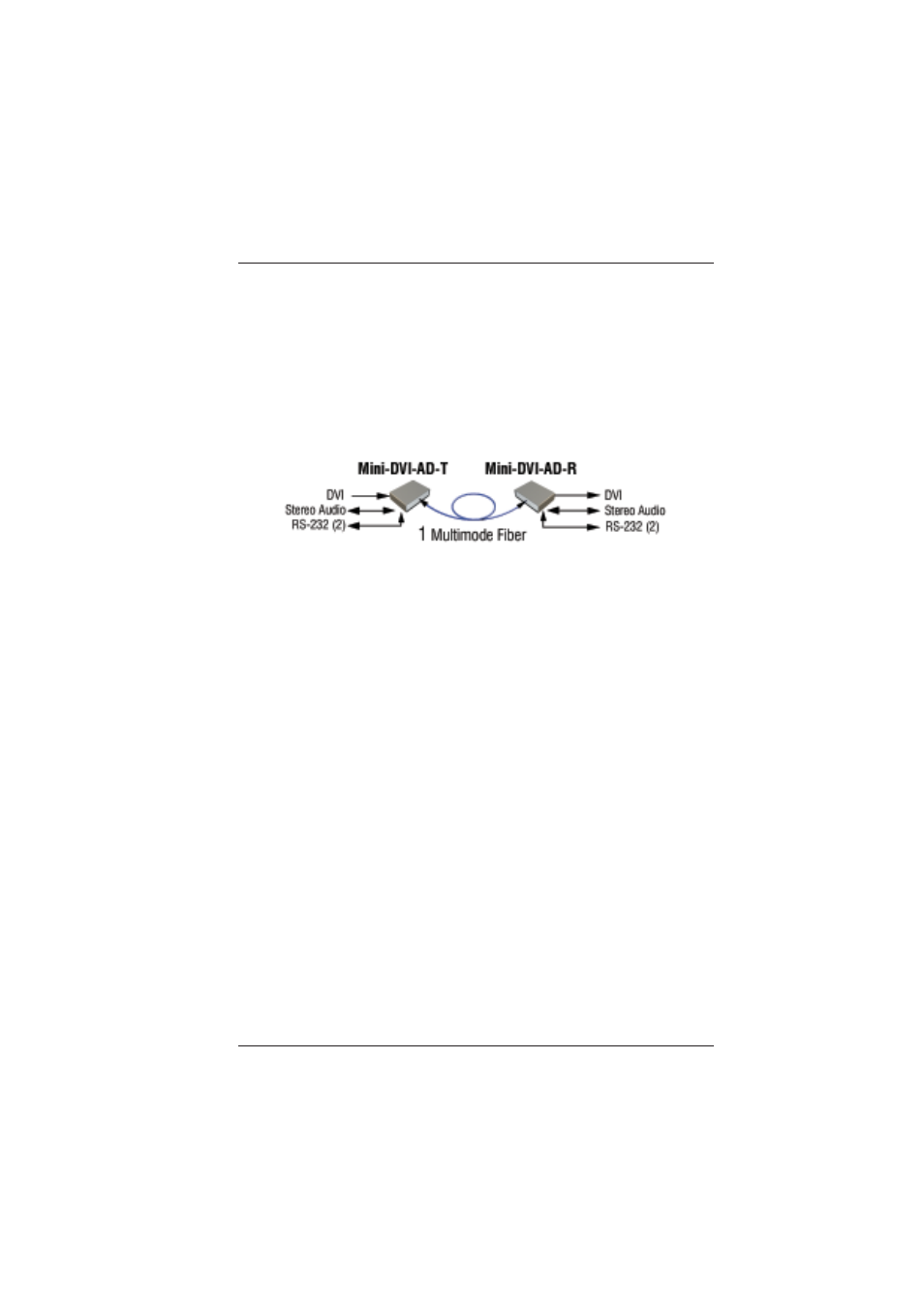

link. Figure 2-1 depicts a typical installation for the Mini-DVI-AD-T/R.
Figure 2-1
Mini-DVI-AD Setup
2.1 Mounting
Before installing the units into your housing, make sure there is
enough space to pull and connect both the electrical and optical
cables without stressing them beyond the manufacturer’s
limitations (also known as the minimum bend radius).
2.2 Cabling and Connectors
In order to setup the BCI Mini-DVI-AD properly, make sure to
observe the following instructions when installing the proper
cables. The Mini-DVI-AD requires two parts to the cabling setup:
the electrical and the optical.
