2.2.1 Electrical Cable Connection
The three available cable connections on the electrical side are
for DVI video, audio and data connections. Follow the proceeding
instructions in order to properly install your electrical
connections.
2.2.1.1 DVI Video Interface
The DVI video connection is the DVI plug connectors for
video input and output ports. Use the following instructions
to properly connect your component video as illustrated in
Figure 2-2.
1. Connect the Mini-DVI-AD-T (Transmitter) unit’s DVI video
input port to the user’s DVI video source with the
appropriate DVI cables.
2. For the receive unit, connect the Mini-DVI-AD-R
(Receiver) DVI video output ports to the user’s DVI video
receivers with the appropriate DVI cables respectively,
as illustrated in Step 1.

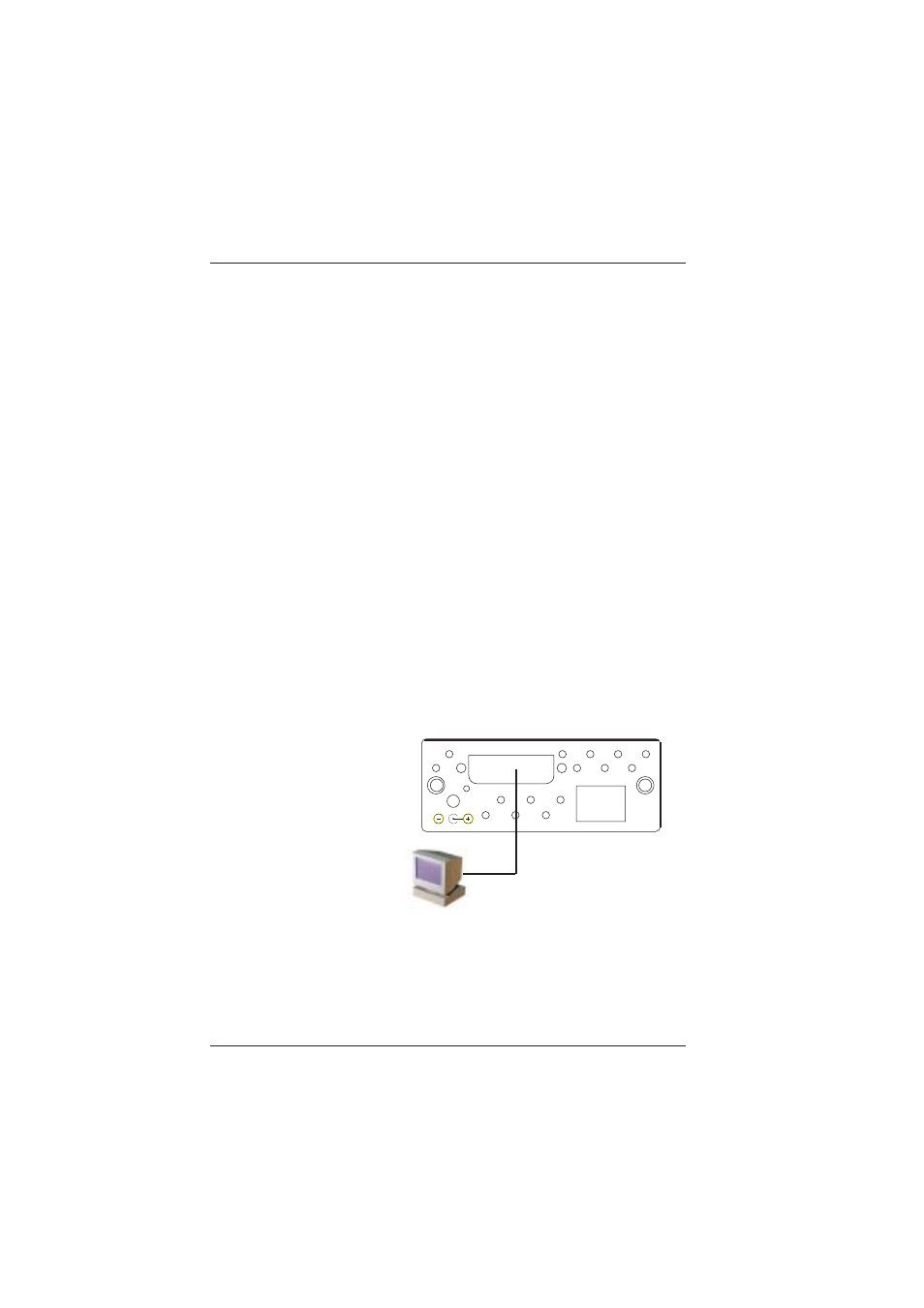

Figure 2-2
Electrical Connection
DVI
OPTICAL PORT
