2.2.2 Optical Fiber Connection
Most cable manufacturers identify individual fibers in the
fiber cable. Select an appropriate terminated fiber. Each
unit’s optical ports in the system are specified for use with
Multimode (62.5/125 micron) fiber, or Singlemode (9/125
micron) fiber. Follow the ensuing instructions for installing
and connecting the fiber optic links:
1. Ensure the power is off before proceeding with the fiber
optic cable installation.
2. Prior to connecting the fiber optic cables, remove and
save the dust caps from the optical port of both the
1100E units and the user’s device. Clean the fiber optic
connector and use a lint-free cloth dampened with
alcohol to thoroughly wipe the sides and end of the
ferrule.
3. Cross-connect the fibers from one unit to the other
connecting the near end 1100E unit’s optical TX port to
the far end 1100E unit’s optical RX port as illustrated
in Figure 2-3. Observe the type of connector you have
and connect the optical connector by referring to the
legend provided in Table 1, and following the instructions
and guidelines.

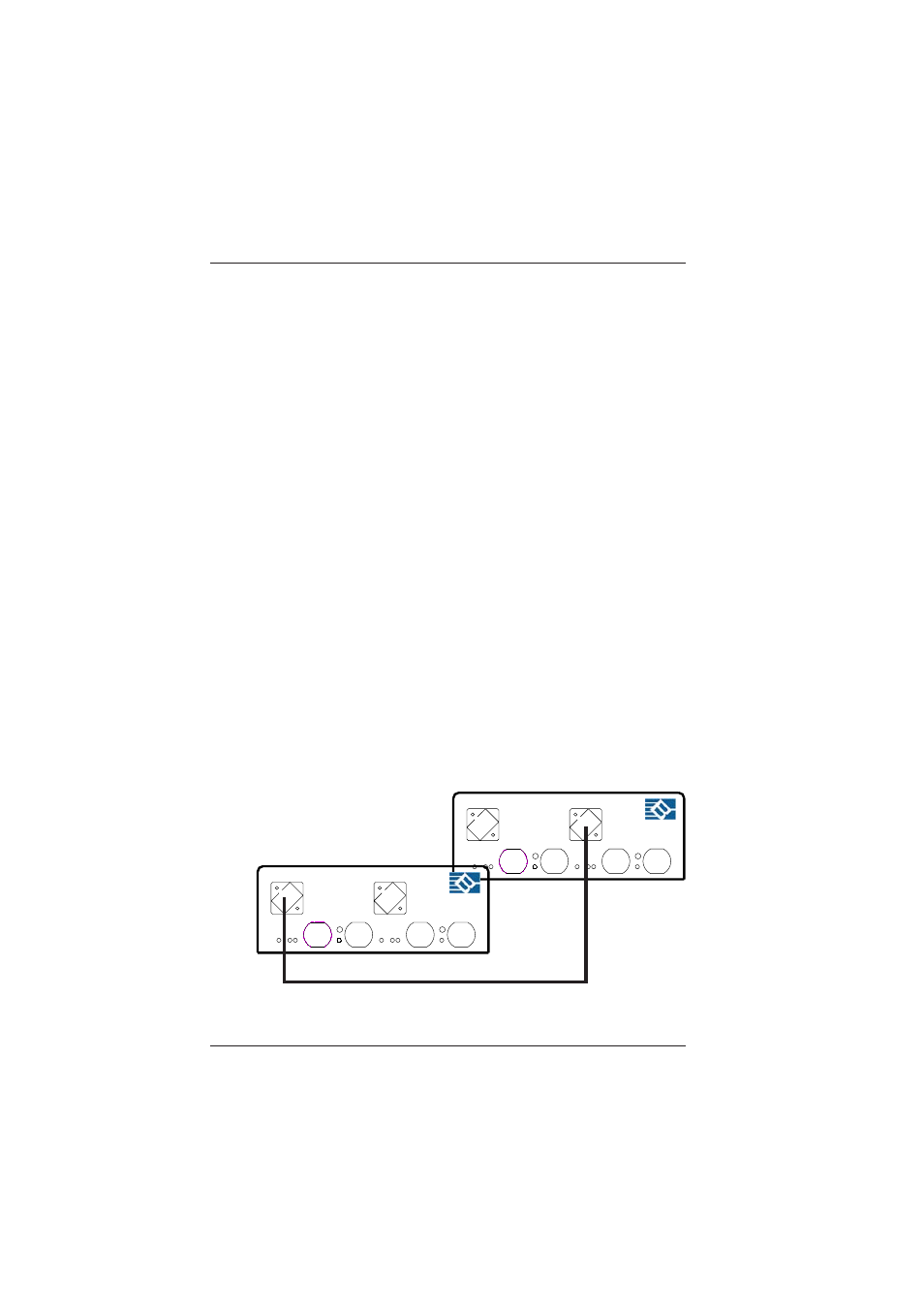

Figure 2-3
Fiber Optic Connection
DIGITAL
VIDEO
CK O L
OUT2
RX TX 1100E-TRX
HD PWR
VIDEO
DIGITAL
K LOC
IN
HD PWR
OUT OUT1
DIGITAL
VIDEO
CK O L
OUT2
RX TX 1100E-TRX
HD PWR
VIDEO
DIGITAL
K LOC
IN
HD PWR
OUT OUT1
