warNiNg:
Print this
page and measure the line
above. It is one incH
long. If it measures less
than or more than one inch,
the template measurements
also need to be scaled
accordingly.
FaiLure To do so
couLd resuLT iN
misdriLLed hoLes.
1”
CompX eLock
®
Latch Dimensions
LockView ® Software
q Add, edit, view and delete users / supervisors and their credentials
q Add, edit and delete CompX eLocks ®
q Assign access rights between users / supervisors and CompX eLocks ® in the database
q USB connection required
q Download, view, save, print, archive and delete audit trails
q Dual credential access available
q Set real time clock
q Time based access restrictions
q Create user groups
q Windows TM based
LockView is a Registered Trademark of CompX International. Windows is a trademark
of the Microsoft Corporation. Specifications may vary based on user application.

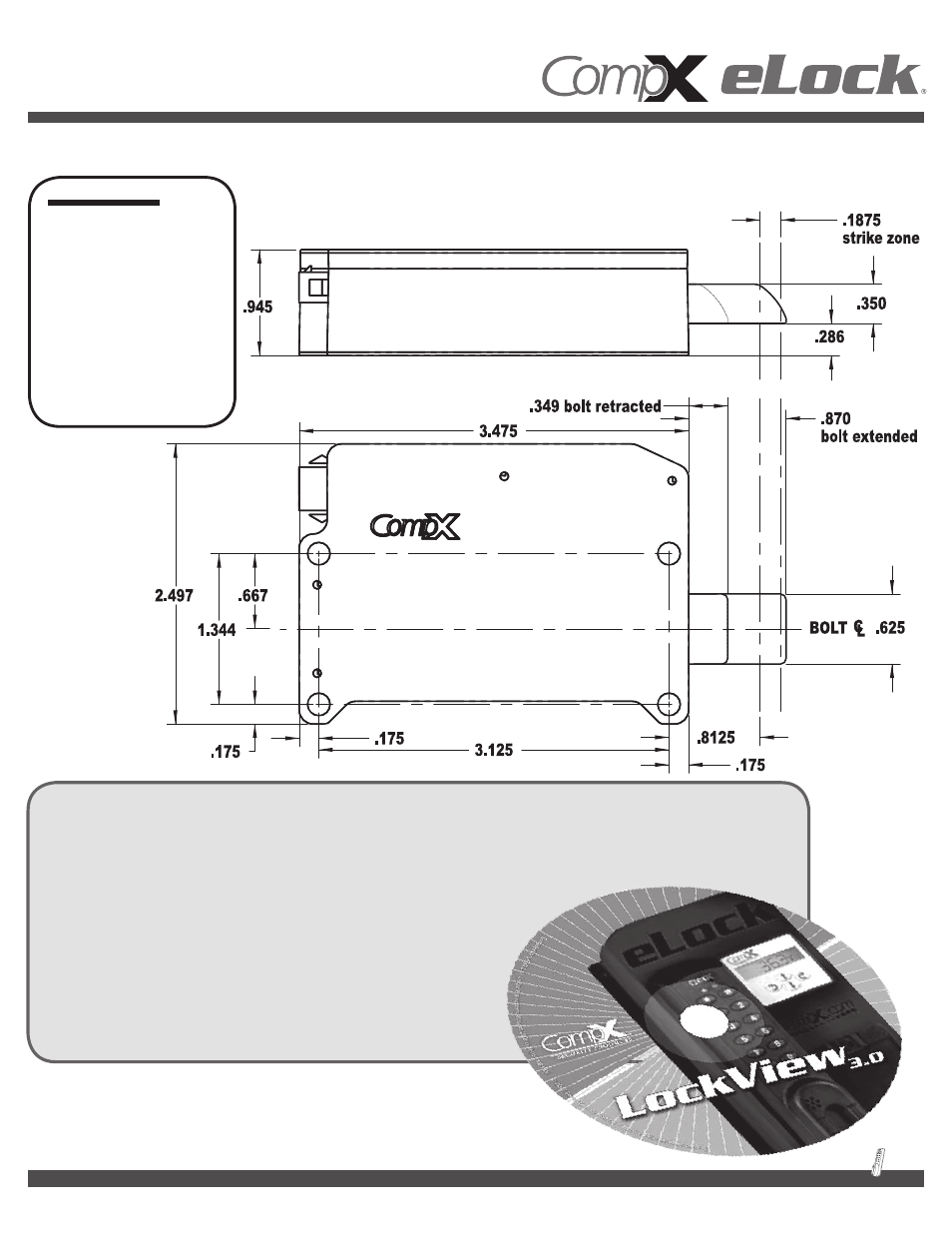

Use the diagrams below as a template for holes to be drilled and for mounting your
CompX eLock ® latch. Put this template on the inside of the cabinet door where the latch
will go, and you can drill right through it to mount your CompX eLock ® latch.
Mount with 4 longer, black colored screws.
