16 Electrical Installation
4.5 Statistics Display Signal Connection
Figure 11 shows the connections required between a wired scoreboard and two statistics
displays. Refer to Figure 7 for more information about connecting the signal wiring that runs
from the scoreboard to the controller. See also Drawing A-124688 in Appendix E.
1. At a minimum, use a paired, 22 AWG shielded cable (Daktronics part # W-1077) and
connect the cable to a dual 1 /
4
" J-box at the control console end.
2. Route the cable from the J-box on the control console end to a J-box near the display.
3. Install the
1 /
4
" phone plug (Daktronics part # 0L-40683) to the display end of the
cable. Be sure to connect the cable shielding only in the J-box on this end.
Note: DO NOT connect cable shielding at the J-box near the control console.
4. Route the 1 /
4
" phone plug from the J-box near the display to the scoreboard.
5. Insert the plug into the J31 – SIGNAL IN jack located on the top of the scoreboard.
6. Connect a
1 /
4
" phone plug between the J32 – SIGNAL OUT jack on top of the
scoreboard to the J31 – SIGNAL IN jack on top of the right (GUEST) stat panel.
7. Connect another 1 /
4
" phone plug between the Signal Out (J32) jack on top of the right
(GUEST) stat panel to the J31 – SIGNAL IN jack on top of the left (HOME) stat panel.

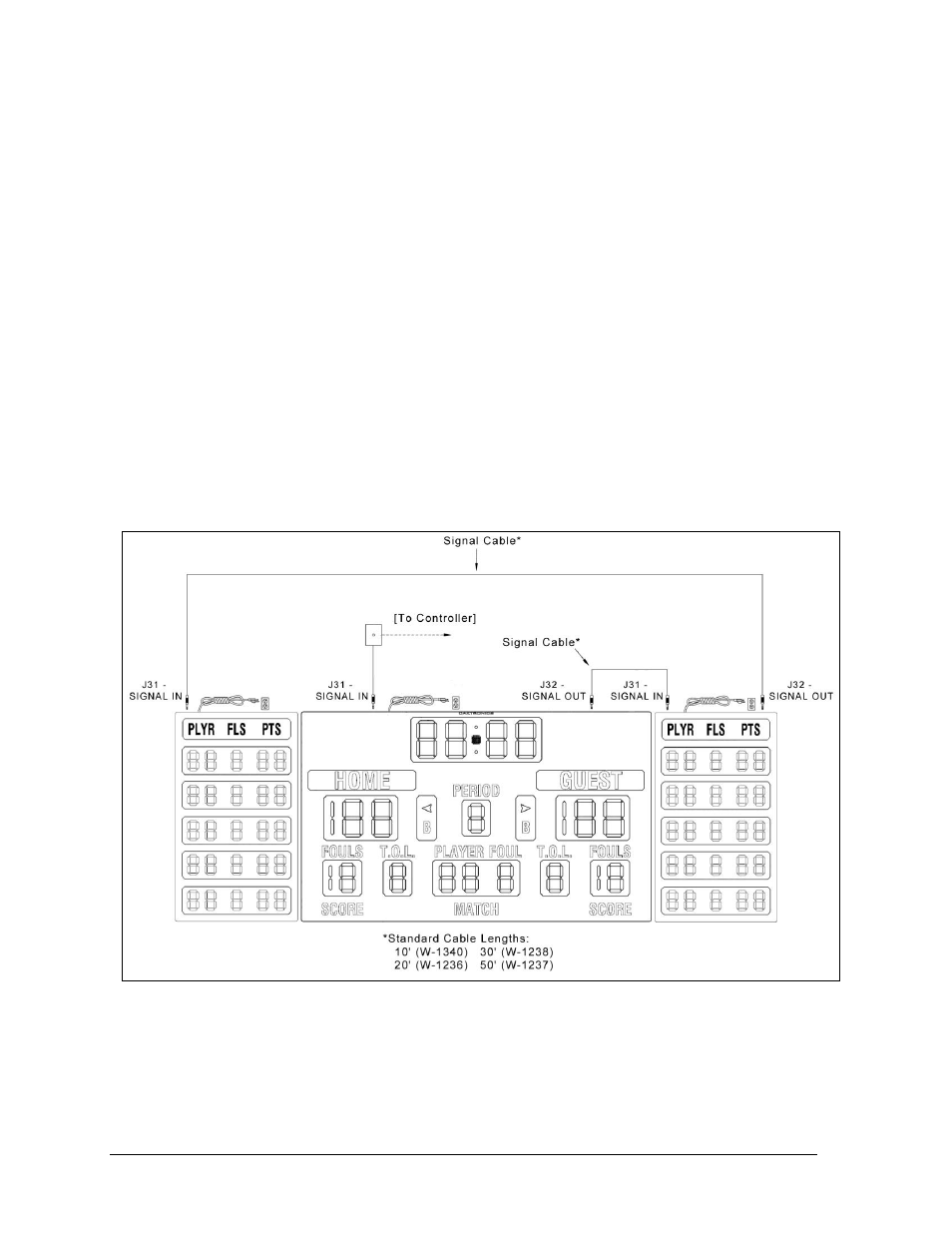

Figure 11: Statistic Display Installation
