Mechanical Installation
7
Section 3: Mechanical Installation
This section describes the mounting details of the TI-2020 and TI-2021. Use this section when
mounting a display to a wall or on the tripod kit. Other mounting methods can be used, but
Daktronics engineers do not recommend those not documented here. Daktronics is not responsible
for mounting the display.
Note: Daktronics does not assume any liability for any installation derived from the information
provided in this manual or installations designed and installed by others.
3.1 Wall Mounting
Models TI-2020 and TI-2021 mount to a wall using an optional mounting bracket, (part # 0M-
178446). This bracket then attaches to two wall anchors. A qualified engineer must specify the
anchor type according to national and local building codes.
Note: Do not attempt to permanently suspend the displays by the carrying handle.
Also, do not permanently mount displays outdoors or leave in wet weather.
Before beginning installation, place the short side of the bracket against the mounting
surface, level it, and then mark the surface through the anchor holes on the bracket with a
marker or heavy pencil. Drill holes in the wall and install anchors at the marked locations.
Minimum steel anchor size is
3 /
8
" diameter.
Note: Daktronics does not provide wall mounting anchors and screws.
Refer to Figure 4 for mounting instructions:

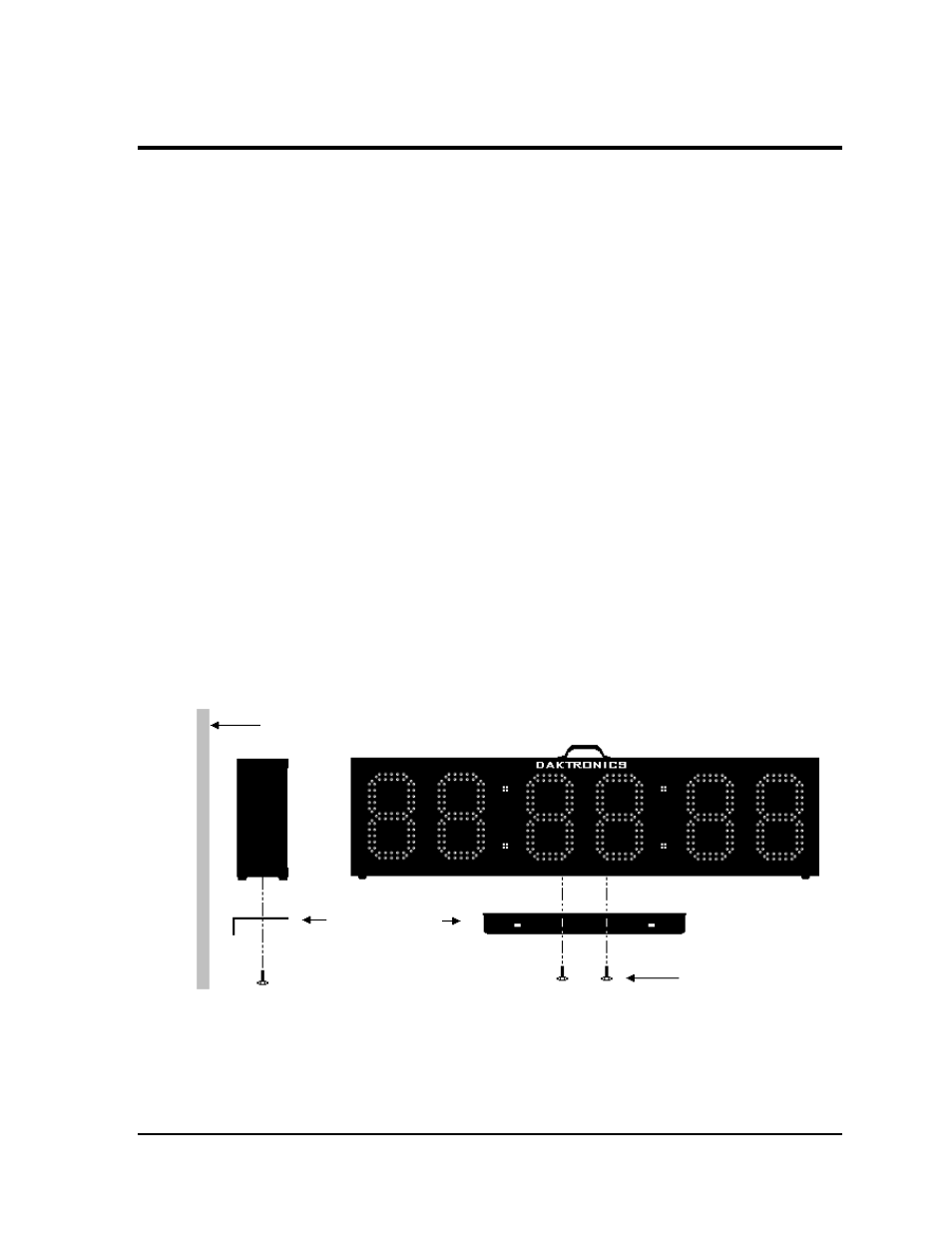

Figure 4: Wall Mounting Kit Installation
Wall
Side
View Front
View
T-bolt (HS-1315)
Wall-mounting
Bracket
(0M-178446)
2. Attach display to
bracket using T-bolts.
Hand tighten to secure.
1. Mount the bracket
to the wall.
