Electrical Installation 11
Section 3: Electrical Installation
CAUTION: Only qualified individuals should access the electrical components of the display and its
associated equipment. It is the responsibility of the electrical contractor to ensure that all electrical
work meets or exceeds local and national codes.
Daktronics engineering staff must approve all changes or the warranty will be void.
3.1 Installation Overview
Electrical installation for four-sided scoreboards involves routing power and control signal
wiring through separate conduit or wire ways to the scoreboard location, as well as routing
power and signal wiring from section to section.

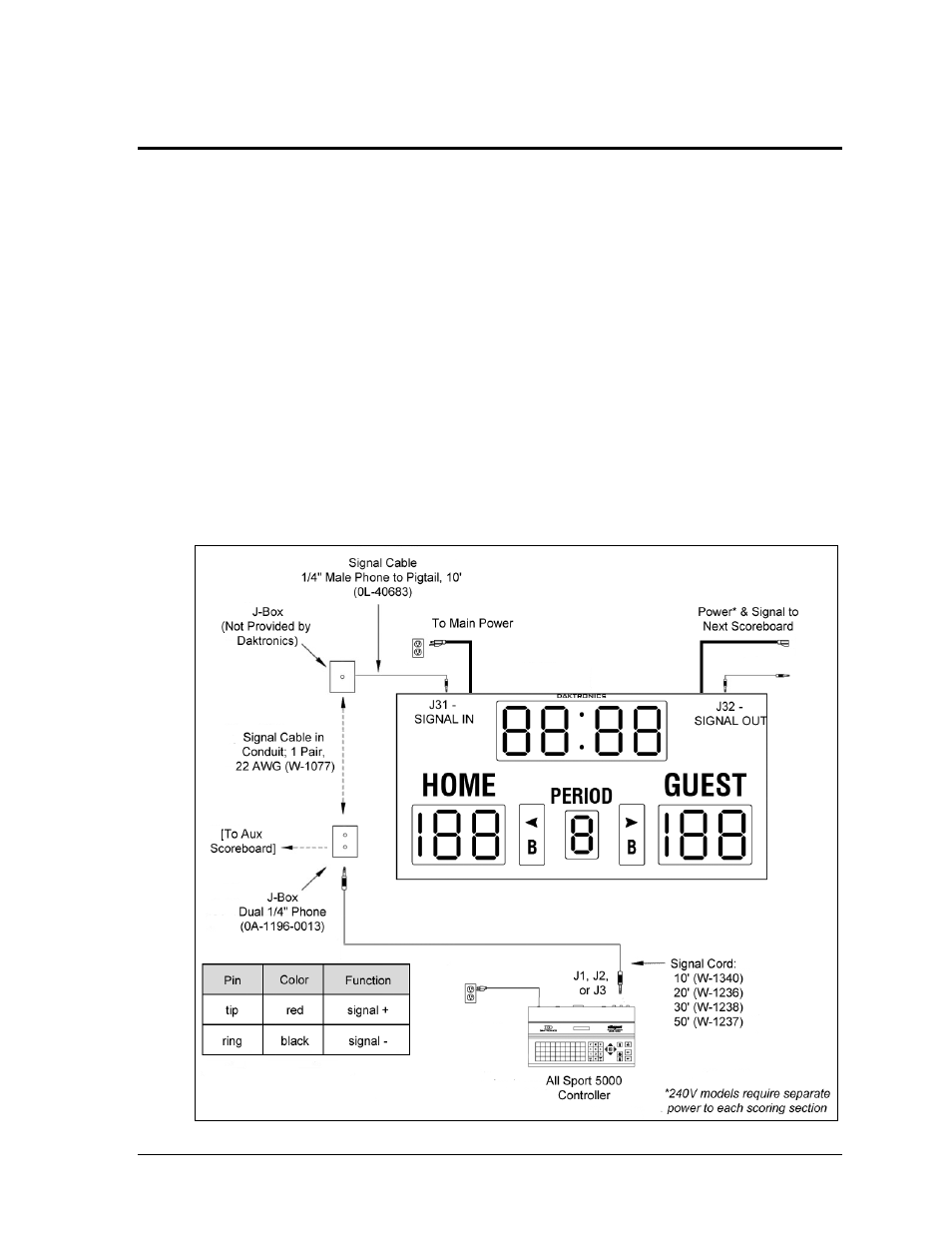

The diagram shown in Figure 3 illustrates a typical wired setup between the first scoreboard
section and the control system. Daktronics part numbers are shown in parentheses.
Note: Control signal cable and some junction boxes are not provided as part of this
system and can be purchased locally or from Daktronics.
Figure 3: Wired Installation
