12 Electrical Installation
The diagram shown in Figure 4 illustrates a typical wireless setup between the first
scoreboard section and the control system. Refer to Section 5.2 for more information about
the wireless radio option.
3.2 Power/Signal Connections Between Sections
Reference Drawing:
Ad Panel/Message Center Hookup Overview, 4-Side ............................ Drawing A-154599
Connection Diagram; 4-Sided SS20i Series Displays ............................ Drawing A-822860
Note: Be sure to make sectional power connections before connecting main power! It is also
recommended that these connections are made before the corner shrouds or optional top ad
panels/message centers are mounted into place.

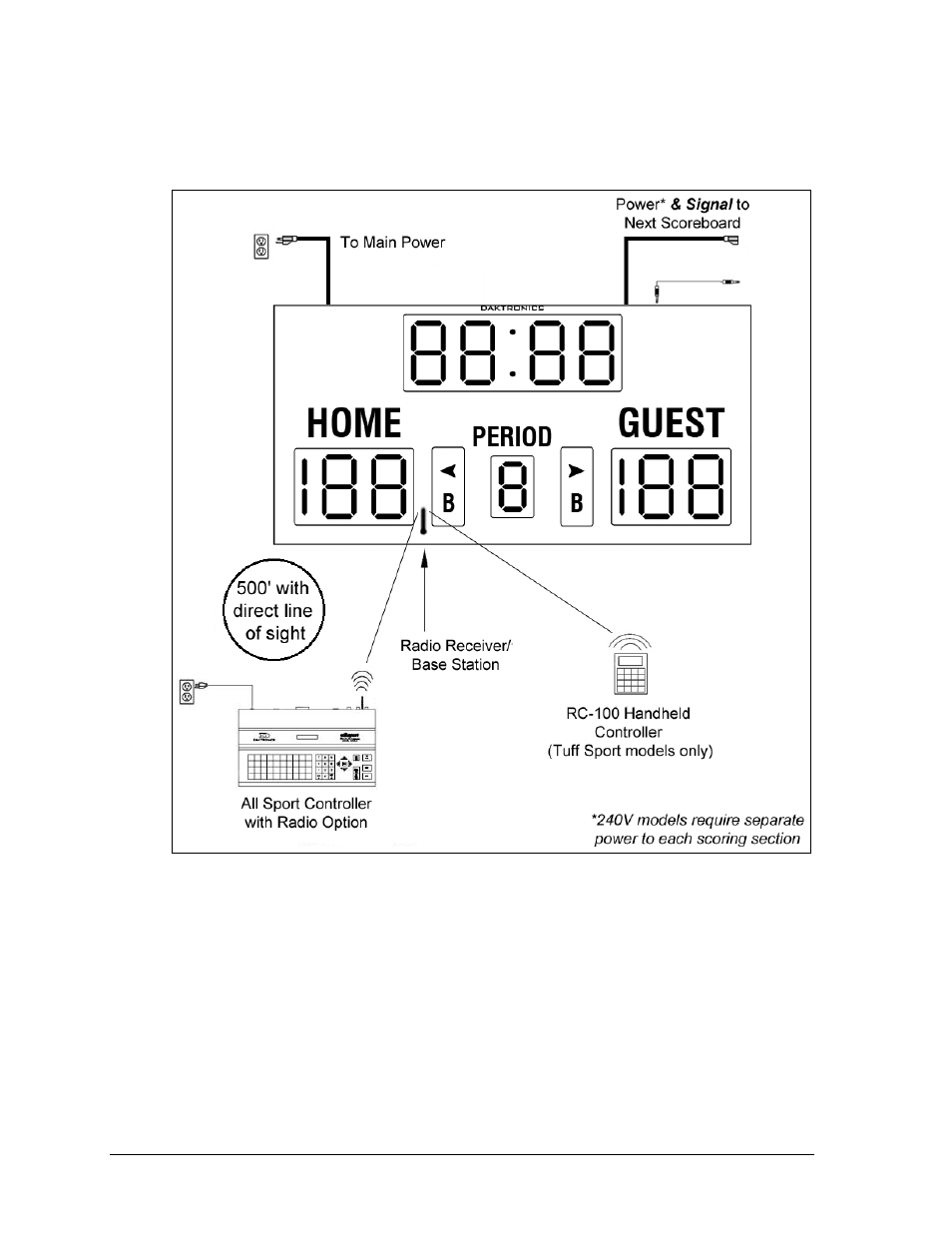

Figure 4: Wireless Installation
