6 Setting Radio Channels
2.3 Typical Radio Configurations
There are three different radio scenarios that can be accommodated: a single controller
system, a multiple controller system with a single broadcast group, and a multiple controller
system with multiple broadcast groups. Each of these configurations is described in detail in
the following sections.
Single Controller System
In a single controller system (Figure 5), all radio receivers and all scoreboards receive signal
from the same console at all times. The default channel and broadcast group settings on the
receiver are not typically modified. An example of this type of system is a football field with
a scoreboard in one or both end zones displaying the same information.
Typically, all single controller systems will use the default setting BCAST = 1, CHAN = 1.
All radio receivers in the system must be set to the same values.
Display Action
The LCD will toggle between
these 2 screens.
The LCD shows the current radio settings along with a prompt
to accept or modify these values.
If the radio settings are correct press <ENTER>.
If these values are incorrect press <CLEAR>, and the LCD at
bottom left is shown, allowing edit of the channel or broadcast
group setting.
Broadcast Group Setting
1 Use this setting for all single controller systems.
Use the number keys to edit this value and press
<ENTER> to accept. The asterisk will move to the
channel setting.
Channel Setting
1-8 Edit the channel number to the desired value and press
<ENTER> to accept. The CHAN switch on the receiver
must match this value.

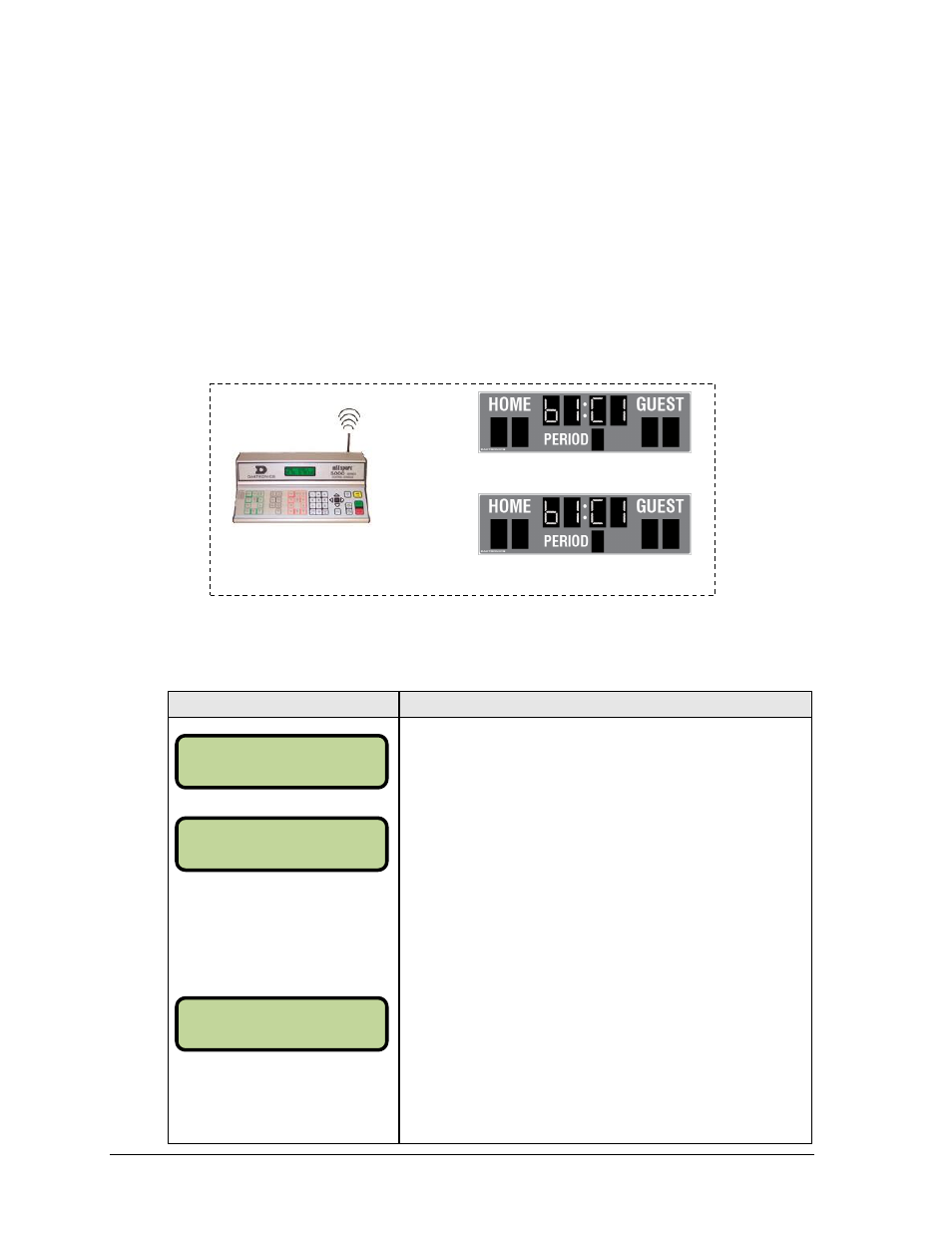

Figure 5: Single Control Console
BCAST 1, CHAN 1
BCAST 1, CHAN 1
BCAST 1, CHAN 01
RADI O SETTI NGS
BCAST X CHAN YY
ENTER TO ACCEPT
CLEAR TO MODI FY
BCAST GROUP 1*
RADI O CHAN 01
