www.dfi .com Chapter 2 Hardware Installation
15
Chapter 2
Rear Panel I/O Ports
The rear panel I/O ports consist of the following:
• 1 19V DC-in jack
• 1 DisplayPort
• 1 RJ45 LAN port
• 2 USB 3.0 ports
• 4 USB 2.0 ports
• 1 VGA port
• Line-in/Surround jack
• Line-out jack
• Mic-in/Center+Subwoofer jack
USB 3.0
Line-out
VGA
DisplayPort
LAN
DC-in jack
USB 2.0
Mic-in/
Center+Subwoofer
Line-in/Surround

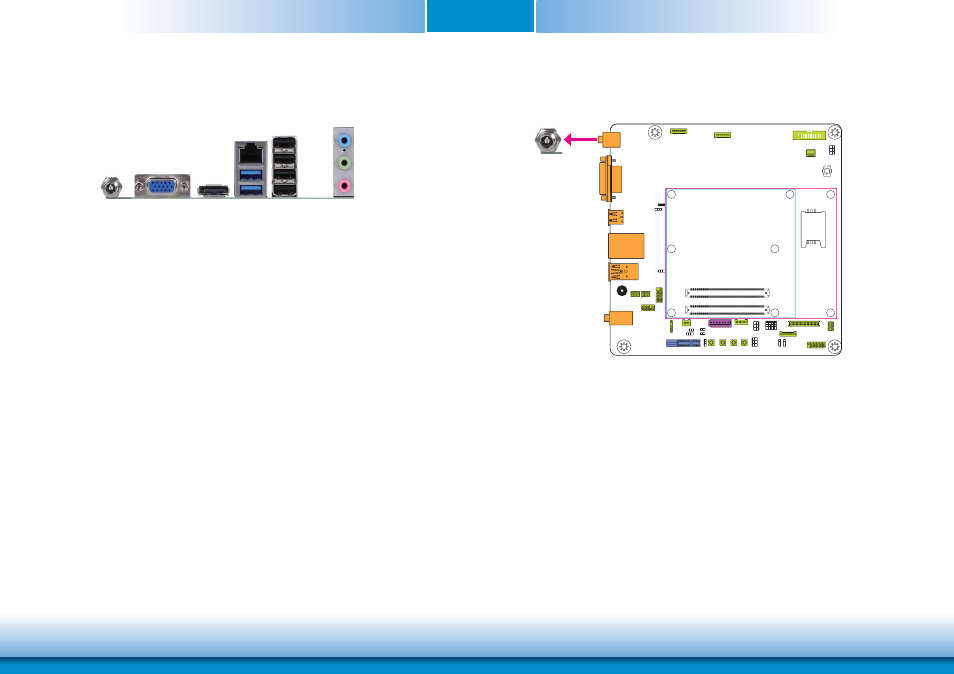

This jack provides maximum of 120W power and is considered a low power solution. Connect
a DC power cord to this jack. Use a power adapter with 19V DC output voltage. Using a volt-
age higher than the recommended one may fail to boot the system or cause damage to the
system board.
19V DC-in
DC-in
