Hardware Installation
Front Audio Connector

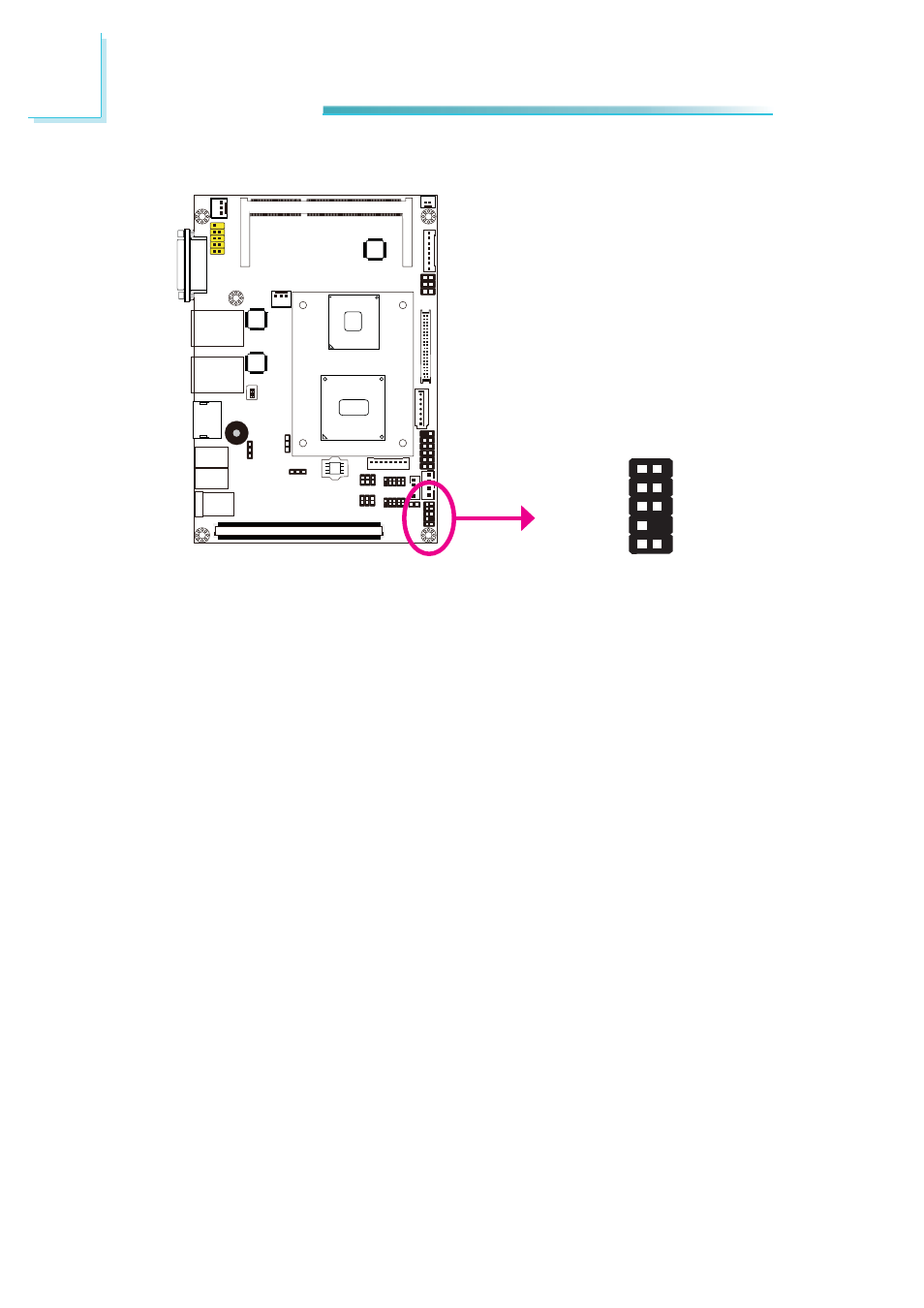

The front audio connector allows you to connect to the second line-out and mic-in
jacks that are at the front panel of your system.
1
Mic IN-L
Line OUT-R
GND
GND
NC
Key
2
10
Mic-JD
Line OUT-JD
Mic IN-R
Line OUT-L
9
