Chapter 2 Hardware Installation
Chapter 2

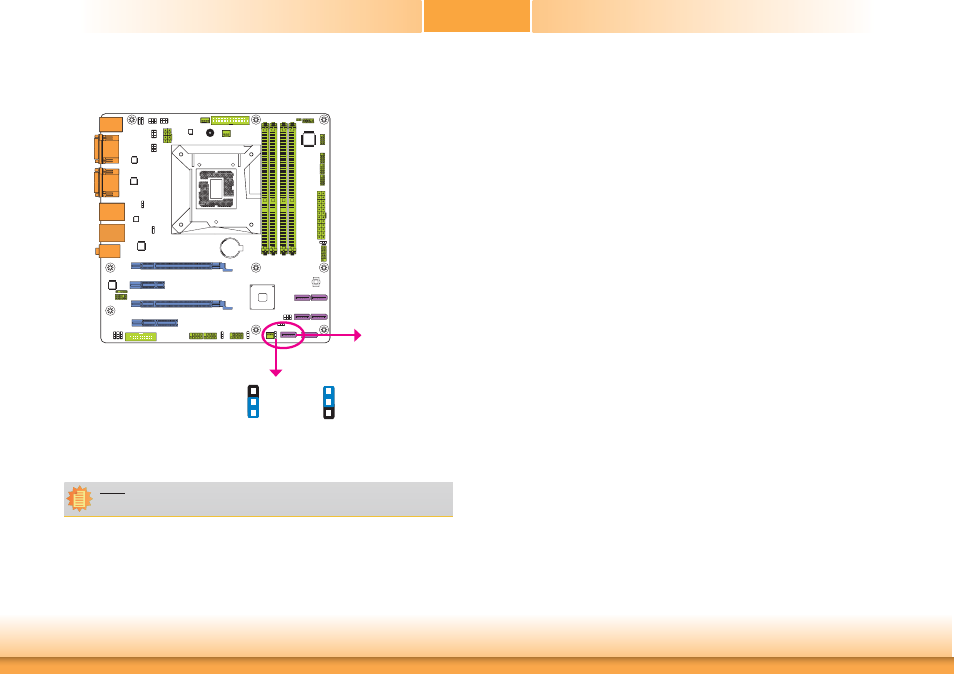

SATA DOM Power Select
2-3 On: +5V 1-2 On: GND
(default)
Note:
SATA port 5 provides adequate space for SATA DOM.
JP17 is used to select the power of SATA DOM.
JP17
SATA 5
1
3
2
1
3
2
