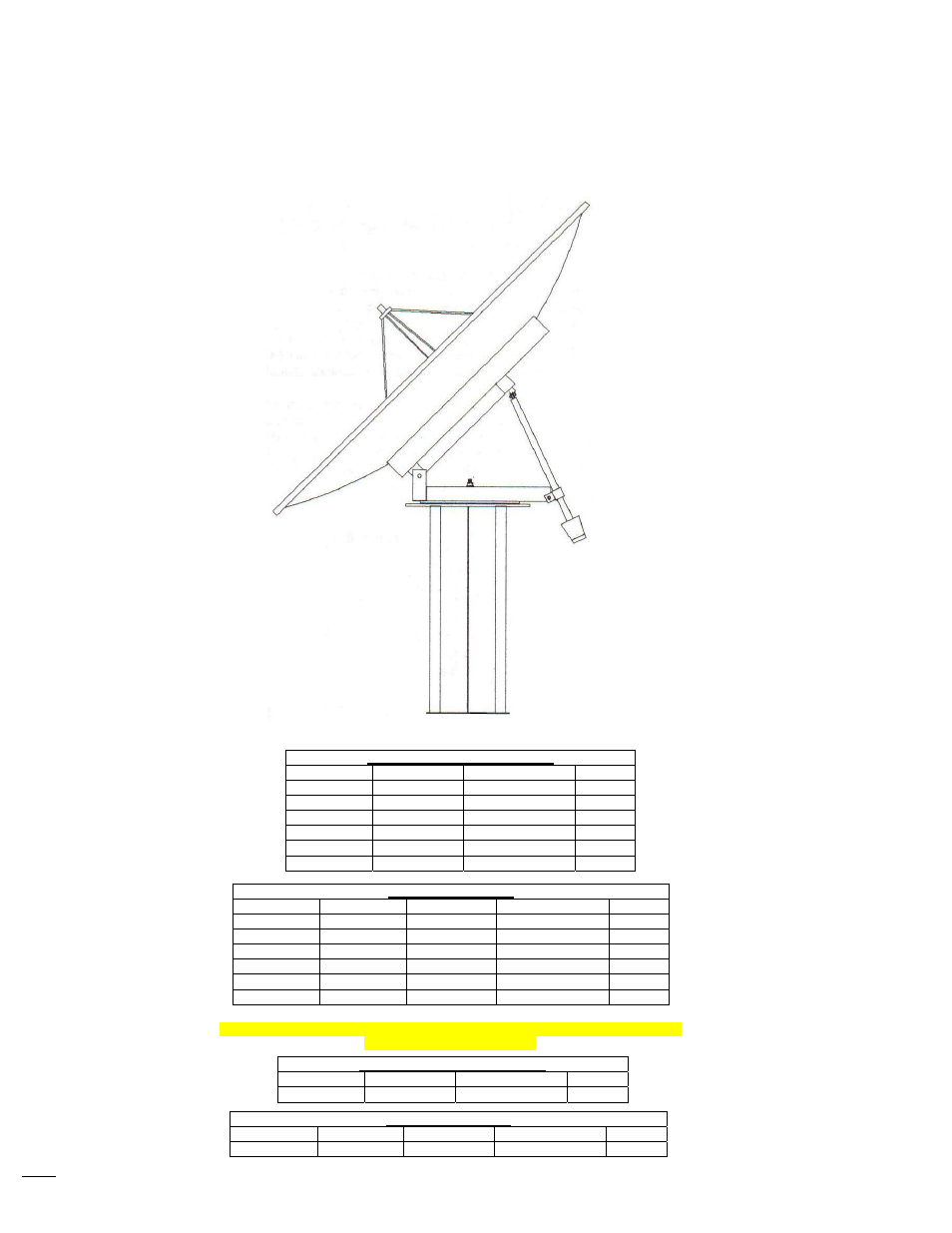

DH Satellite GIBRALTER IV MOUNT - Manual (Page 2)

Parts List for: The “Dual Powered Gibralter”
Mount To Ring
2- 1" Brass Bushings
2- 3" Bearing Plates
2- 1" x 3 1/2" Bolts
Back Braces
4- Bent Back Braces
4- Straight Back Braces
4- Bent Tabs
4- 1/2" x 1 1/2" Bolts
4- 1/2" Lock Washers
20- ½” Nuts
8- Brace Clips
16- 1/4" x 3/4" Bolts
16- 1/4" Lock Washers & Nuts
8- 3/8" x 1 1/2" bolts
8- 3/8" Lock Washers & Nuts
Base Template Kit
8- Anchor Bolts ¾” (18” Long)
C14F Feed Assembly
4- ¾” Struts
1- Feed Collar
8- ¼” x 1 ½” Bolts
8- ¼” Lock Washers & Nuts
NOTE: SECTIONAL ANTENNAS INCLUDE ADDITIONAL HARWARE,
SEE TABLES BELOW
Template Rib Hardware: Sectional
Antenna Size ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.0M 44 44 44
3.7M 52 52 52
3.8M 56 56 56
4.2M 120 120 120
4.5M 136 136 136
5.0M 136 136 136
Page 1
Elevation Assembly
1-36" Actuator w/Clamp
1-48" Stow Bar w/Clamp
1 - 3/4" x 10" Bolt
1 - 3/4" Lock Washer
1 - 3/4" Nut
2 -1/2" x 2 ½” Bolts
2 -1/2" Lock Washers
2 -1/2" Nuts
2 - 3/4" x 5/8” Spacers
Ku4FL: 3PC
Add To C14F
3- Section to 3pc collar
3 8-32 x 1” Bolts
3PC Collar To Horseshoe
3 8-32 x ¾” Bolts
3- #8 Fender Washers
3 8-32 Nuts
Antenna To Ring
(16 Block)
16- ½” x 3” Bolts
16- ½” Flat Washers
32- ½” Rubber Washers
16- ½” Lock Washers
16- ½” Nuts
NOTE:
Stainless steel or DURA-CON® hardware provided.
*DURA-CON® is a corrosion resistant coating.
DURA-CON®: Problem of thread-galling is eliminated.
Heavy Duty Feed Struts
C14F or C24
1- Set of 4 Strut s
1- Colla r (C, Ku )
1 2 - 5/16” Lock Washers & Nuts
4- 2' x 2 ' Angle Bracket s
4- 5/16” x 1 ½” Bolts
8- 5/16” x 2 ¼” Bolts
Feedhorn to Collar & LNB
3-1/4” x 3/4" Bolts
3-1/4" Lock Washers
3-1/4" Nuts
(LNB to Feed)
20-1/4” x 3/4" Bolts
20- 1/4" Nuts
20- 1/4” Lock Washers
Back Brace Length
3.0m- 37” Long
3.7m- 45” Long
3.8m- 47” Long
4.2m- 55” Long
4.5m- 62.5” Long
5.0m- 68.5” Long
If you have upgraded to an 8PC 3.7M sectional antenna please refer to the tables below
for additional hardware needed.
Template Rib Hardware: Sectional
Antenna Size ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.7M 104 104 104
Splice Straps: Sectional
Antenna Size Splice Straps ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.7M 8 16 16 16
Splice Straps: Sectional
Antenna Size Splice Straps ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.0M 4 8 8 8
3.7M 4 8 8 8
3.8M 4 8 8 8
4.2M 8 16 16 16
4.5M 8 16 16 16
5.0M 8 16 16 16
