Indicator Overview
6
SW300 User’s Manual
D3734-US REV E

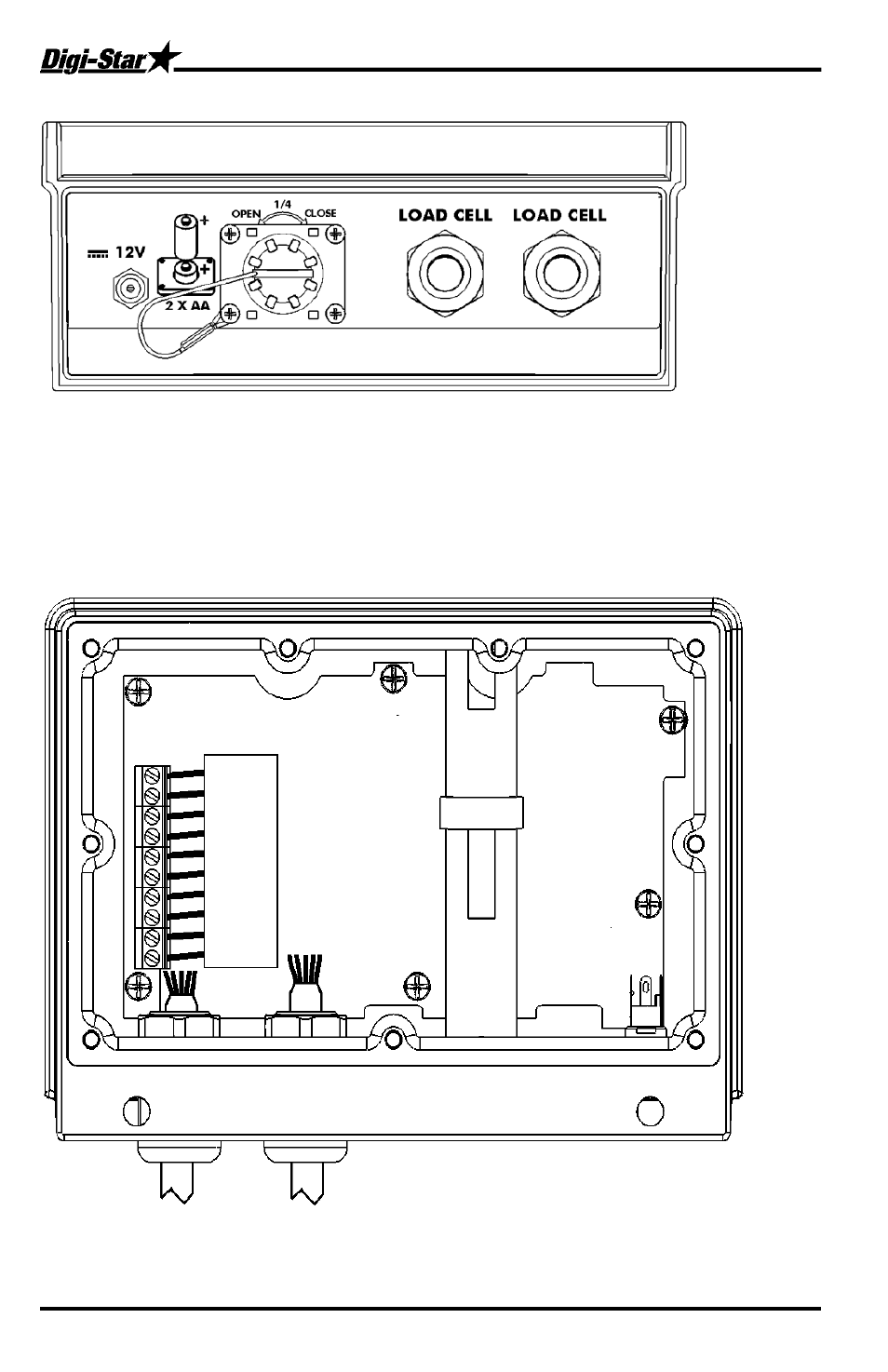

SW 300 W/Liquid Tight Fittings
Connecting Load Cell Wires in Indicator
Remove the back cover (nine screws)
Feed the load cell wires in through the liquid-tight connectors
Connect one wire to each terminal as shown
Install the back cover (nine screws)
White
Green
Red
Black
Shield
White
Green
Red
Black
Shield
