Indicator Overview
D3734-US Rev E
SW300 User’s Manual
7

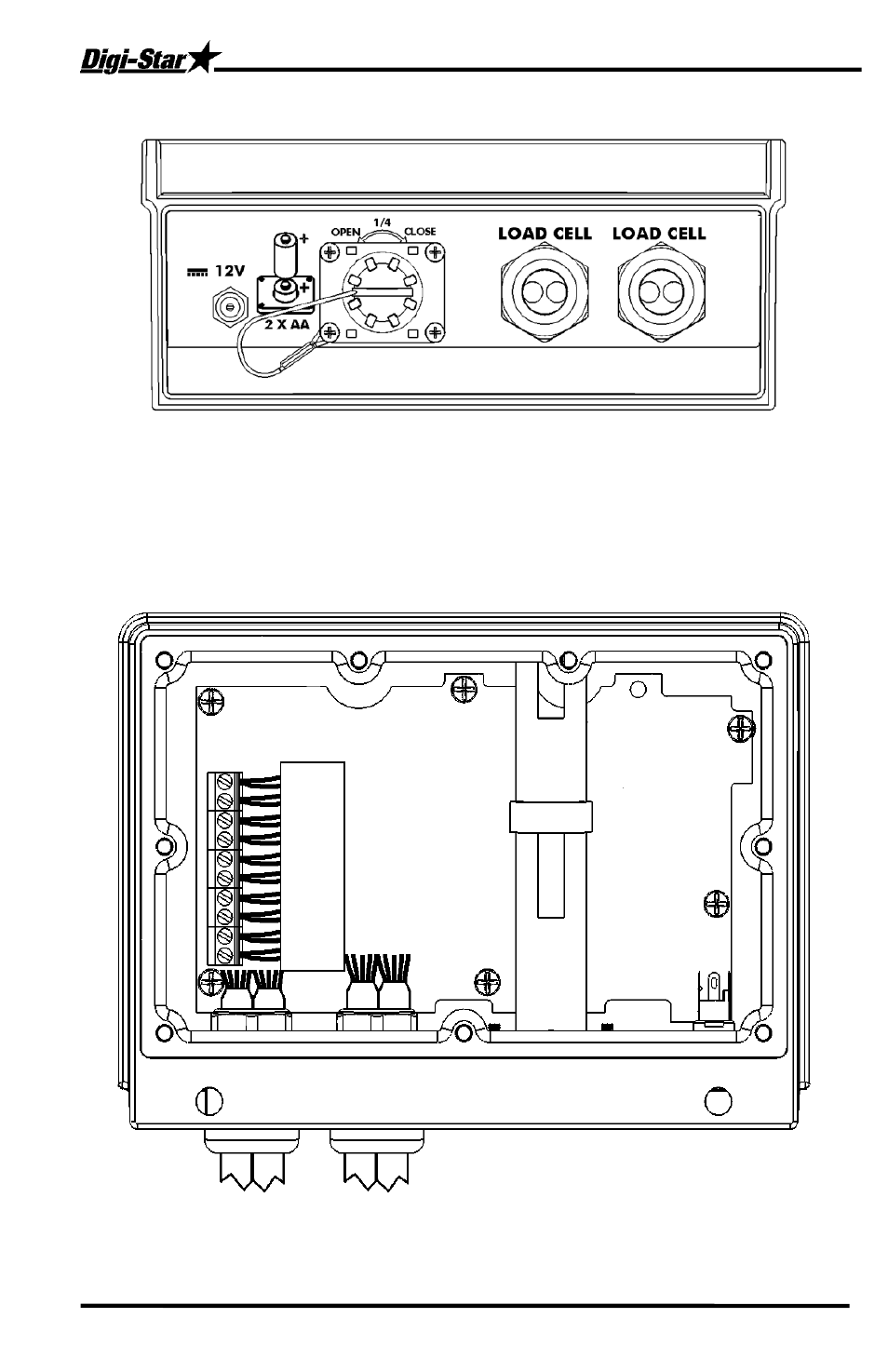

SW300 W/Dual Liquid Tight Fittings
Connecting Load Cell Wires in Indicator
Remove the back cover (nine screws)
Feed the load cell wires in through the liquid-tight connectors
Connect two wires to each terminal as shown. Tighten snugly.
Install the back cover (nine screws)
White
Green
Red
Black
Shield
White
Green
Red
Black
Shield
