Connecting and Commissioning Data Collector VKPN 40Ex, VKPN 40
Connecting data collector VKPN 40Ex or VKPN 40 to a PC
Connect the power supply unit of the connecting cable VKPA 40 with an earthed socket and insert the circular plug of the connecting
cable into the left-hand jack of the data collector VKPN 40Ex / VKPN 40.
■
If the power supply unit is not connected the data collector cannot communicate with the PC.
Connect the serial plug of the connecting cable with the PC. Use a commercially available interface connection USB-RS 3 to connect
the data collector via a USB interface to PC. Then confirm the selected interface (Com , Com , Com 3, Com 4 or Com 5) in the
TRAPtest menu EXTRAS/Interface on the PC.
■
Attention: Do not use the connecting cable VKPA 40 in explosionrisk areas!
Connecting measuring transducer VKPS 40Ex to data collector VKPN 40Ex or VPKN 40
■
Note when using the VKPN 40Ex in explosionrisk areas:
Make sure that the measuring transducer VKPS 40Ex is connected to the data collector VKPN 40Ex before you
enter an explosionrisk area. Do not open this connection in explosionrisk areas. The two connected devices
(VKPN 40Ex with VKPS 40Ex) can be in switched-on or switched-off mode when they are carried into an explosion-risk
area.
■
Do not use the data collector VKPN 40 in explosionrisk areas.
Insert the circular plug of the connecting cable VKPS 40Ex into the right-hand jack of the data collector VKPN 40Ex / VKPN 40.
To unplug the cable pull the sleeve of the connector.
Danger
➞
Circular plug
➞

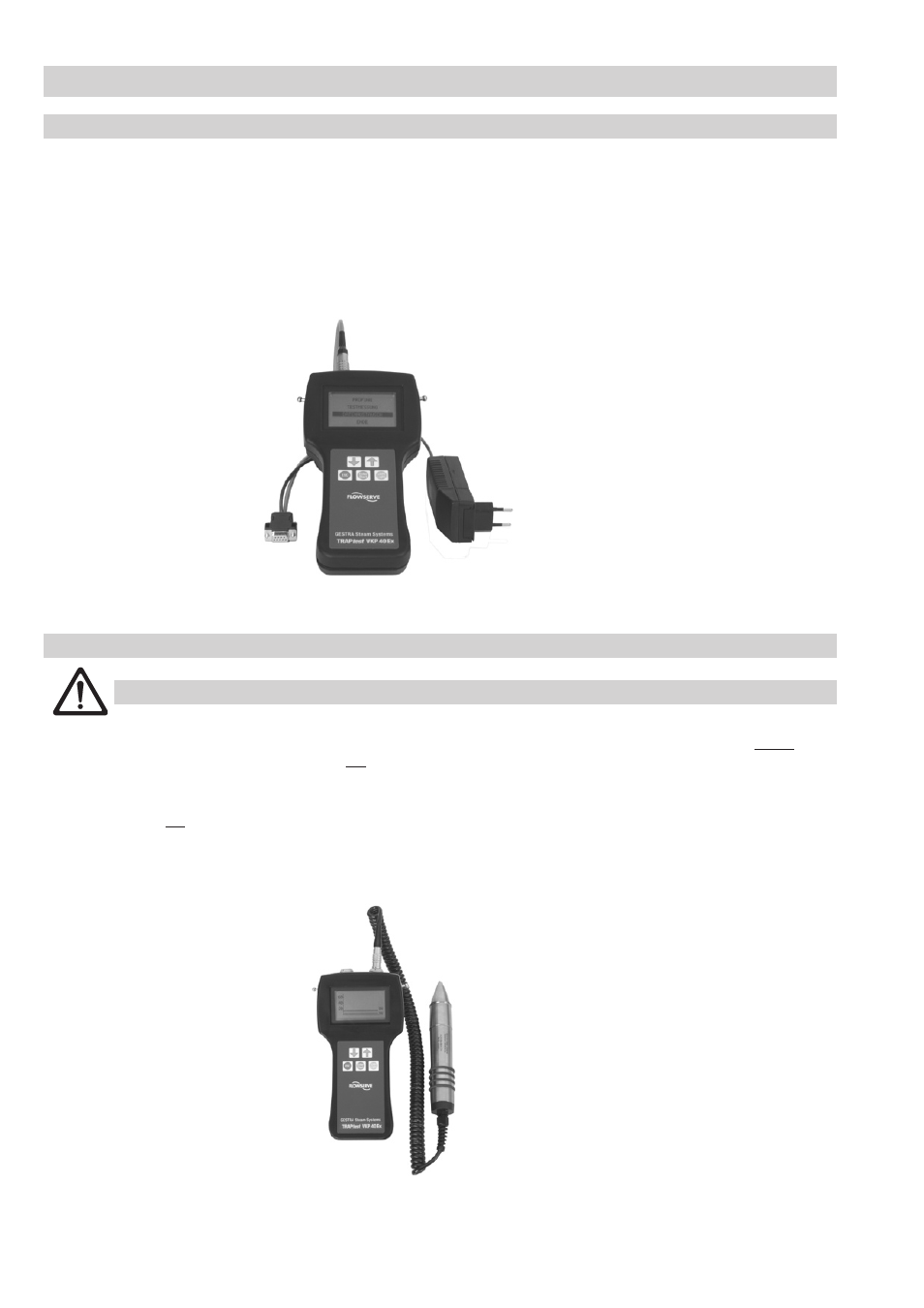

Data collector VKPN 40Ex with connecting cable VKPA 40
Serial plug
➞
Adaptor for
connector
➞
Power supply
unit
➞
Connecting cable
VKPA 40
Data collector VKPN 40Ex,
bzw. VKPN 40 with measuring transducer VKPS 40Ex
Measuring transducer
VKPS 40Ex
➞
