15/40 15/40 15/40 15/40
Thickness detection Thickness detection Thickness detection Thickness detection
The IN-3 is equipped with a document thickness detector.
The thickness detector controls the thickness of the
document. In this way the machine checks if the envelope
will be filled with the correct amount of documents. The
detector will stop the machine if a document is too thick or
too thin and an error message will be displayed.
The thickness detector is self-setting. After switching on (or
after resetting the thickness detection) the thickness of the
first document passing under the detector is memorized and
compared with the following inserts.
If the thickness of the documents can vary, for example
when a small card is used that can shift in place, it is
recommended to switch off the thickness detection or shift it
to a stable section of the document. The thickness detection
measurement area can only be adjusted by the supervisor.
See section 2.4.3 in the “Guide for job menu”.
Reset thickness detection Reset thickness detection Reset thickness detection Reset thickness detection
By pressing key 5 the thickness detection will be reset.
If the thickness detection is switched off, the text “reset
thickness det.....” will not be displayed in the screen.

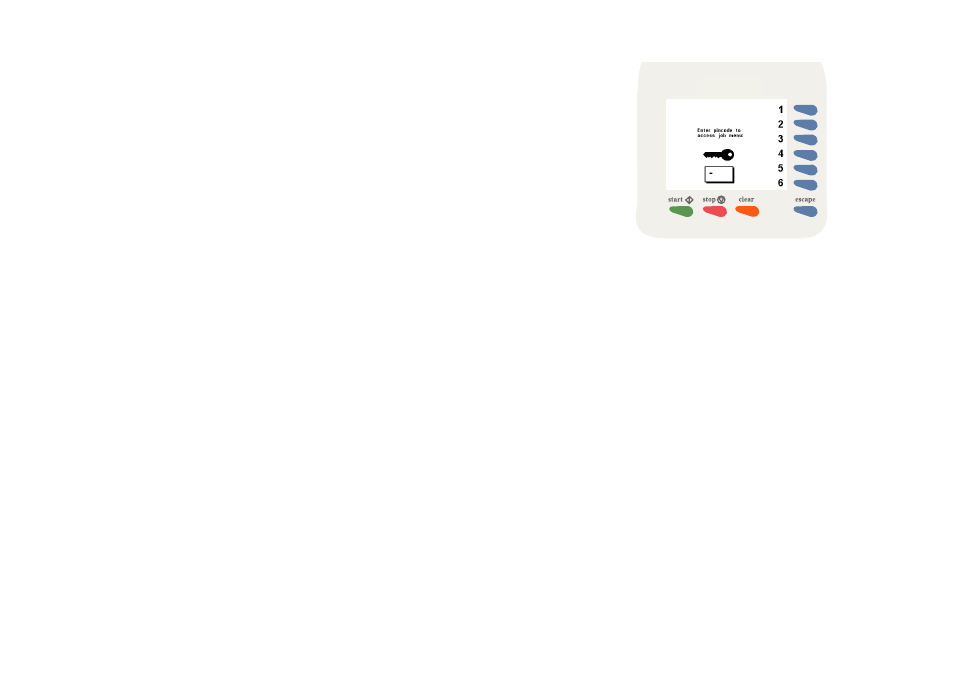

Fig. 23
5.5 5.5 5.5 5.5 Entry to job menu Entry to job menu Entry to job menu Entry to job menu
When key 6 in the “main menu” is pressed the display
shows the screen in Fig. 23. Only the supervisor can get
access to the job settings after entering the correct code.
Enter your pincode using the keys 1 to 6. If the code is not
correct, a warning “wrong code, try again” will be
displayed. This warning disappears immediately when a
key is pressed.
Key
1
2
3
4
5
6
