Chapter 2 Installation Instructions
1

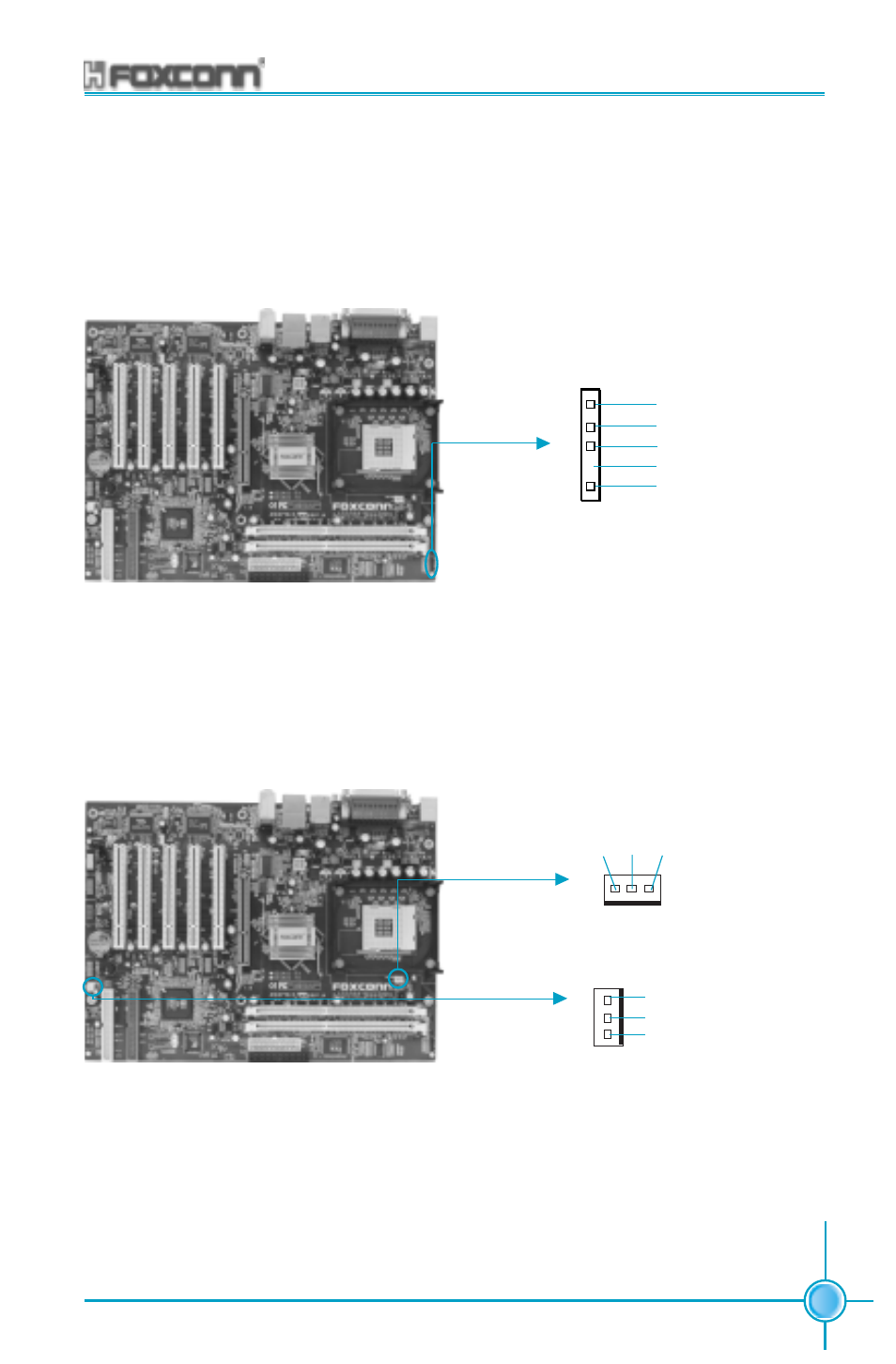

IrDA Header: CN25
This connector supports wireless transmitting and receiving device. Before using
this function, configure the settings of IR Mode from the “Integrated Peripherals”
section of the CMOS SETUP.
CN25
+5V_SYS
GND
IRRX
IRTX
Empty
Fan Connectors : CPU-FAN, FAN1
The speed of CPU-FAN and FAN1 can be detected and viewed in “PC Health
Status” section of the CMOS SETUP.
CPU-FAN
GND
SENSE
FAN1 +12V
1
SENSE +12V GND
1
