Switching OFF all cooking zones
Immediate switching OFF of all cooking
zones can be achieved anytime by means
of the ON/OFF key. In the stand-by mode,
an “H” appears on all cooking zones which
are “hot”. All other cooking zone displays
are not illuminated.
Wattage settings
The output of the cooking zones can be set
in 9 steps which are indicated by figures
“1” to “9” by means of seven-segment LED
displays.
touch control heat intensity
1 weak
2-3 gentle
4 slow
5-6 medium
7-8 strong
9 bright
A: INDUCTION COOKING ZONE ø160 LEVEL 9 = 1200W ABOUT, P = 1400 W
MINIMUM START THRESHOLD 700W
B: INDUCTION COOKING ZONE ø180 LEVEL 9 = 1400 W ABOUT, P = 2000 W
MINIMUM START THRESHOLD 1200W
C: INDUCTION COOKING ZONE ø200 LEVEL 9 = 2300 W ABOUT , P = 3000 W
MINIMUM START THRESHOLD 1200W
THE ARRANGEMENT OF THE INDUCTORS, RECOGNIZABLE BASED ON THEIR
SIZES, ø160, ø180 AND ø200 CAN VARY BUT THEIR BEHAVIOUR MANAGED
BY THE LIMITER (3.3kW) REMAINS THE SAME

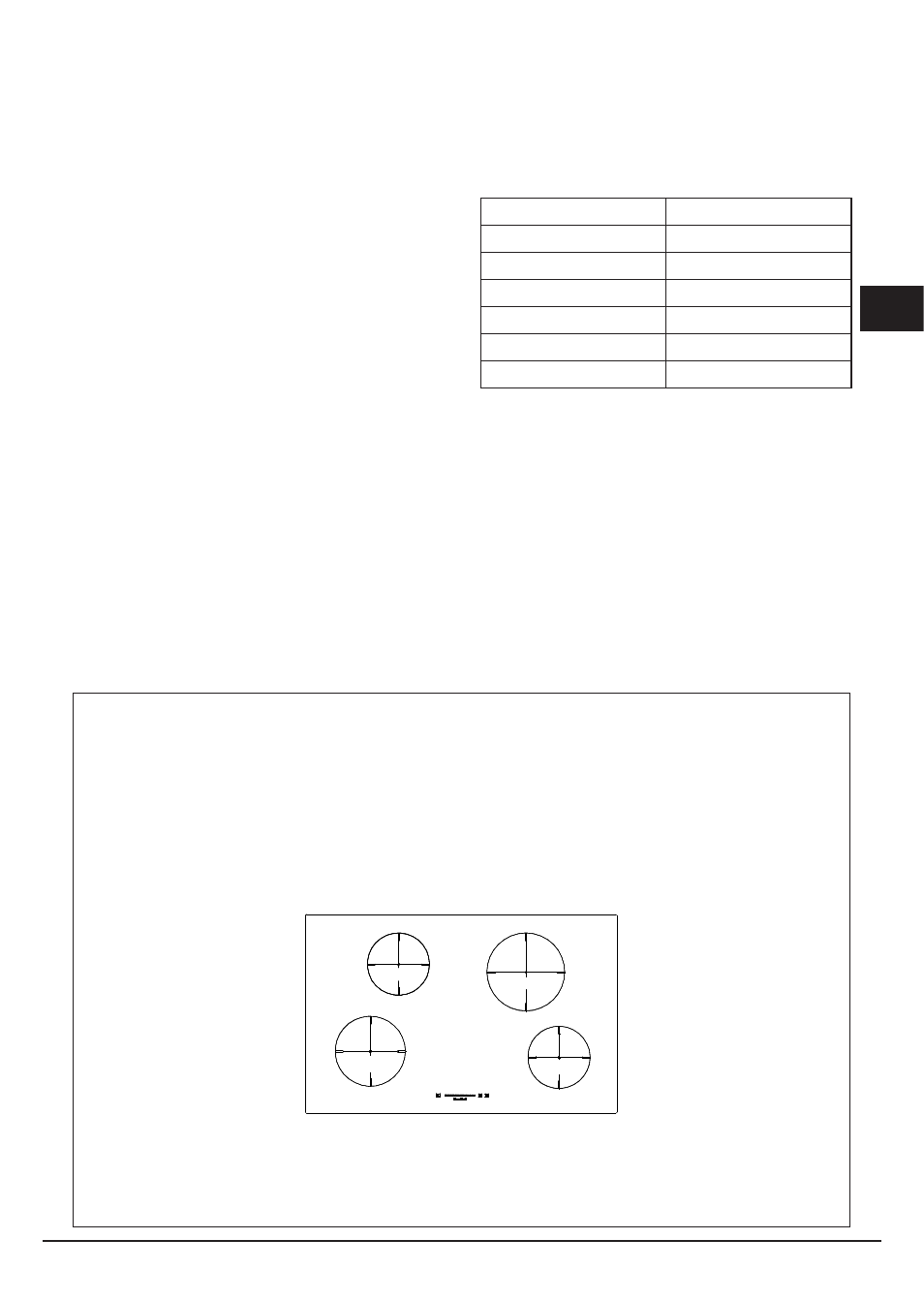

Fig. 3
C ø200
A ø160
B ø180
