Dayton Installation, Operation, Maintenance and Parts Manual
Models 1RVT7 and 1RVT8
15
WARNING
!
!
Failure to disconnect the electricity to
the heater before disconnecting the gas
supply may result in explosion, fire,
property damage, injury or death.

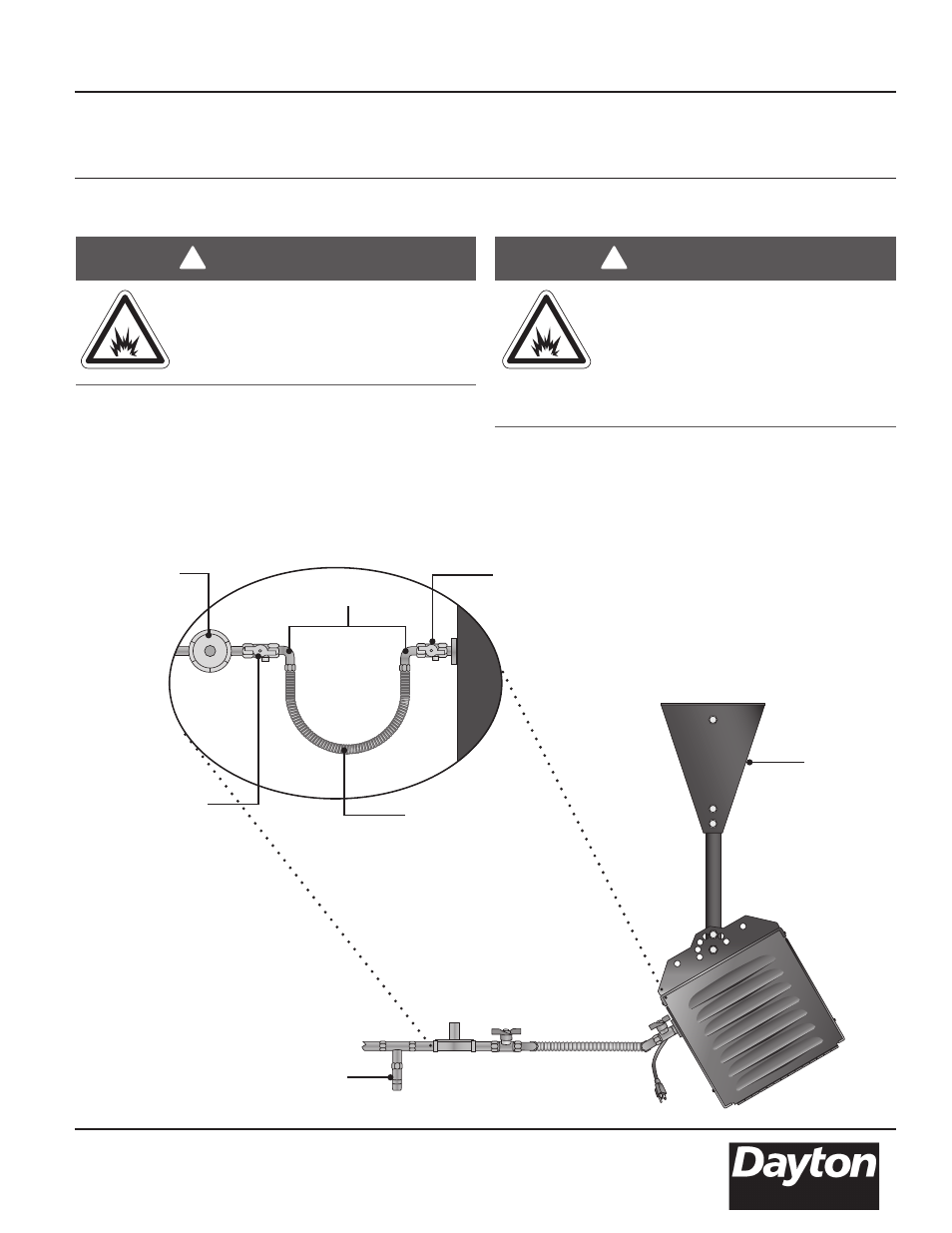

Figure 2.8 - Gas Connection
(shown installed with a flexible hose)
Drip leg / Sediment trap
(field supplied)
Stainless steel gas
connector (field
supplied), formed
into smooth C-shape
is recommended.
Regulator
(field supplied
when required)
Elbows
(field supplied)
Shut off valve
(field supplied)
Mounting
bracket
Shut off valve / inlet tap
WARNING
!
!
Conditions such as wind drafts or other
variables can cause movement of the
heater and may require it to be rigidly
mounted. Avoid excessive movement
and/or vibration of the gas connection by rigidly
mounting the heater.
