Dayton Installation, Operation, Maintenance and Parts Manual
Models 1RVT7 and 1RVT8
5
Chart 1.1 - Clearance to Combustibles in Inches (see Figure 1.1)
Certain applications (awnings, fabrics, plastics, sprinklers,
insulation) may require the heater to be mounted at a
distance in excess of the published clearances to
combustibles. Contact the factory.

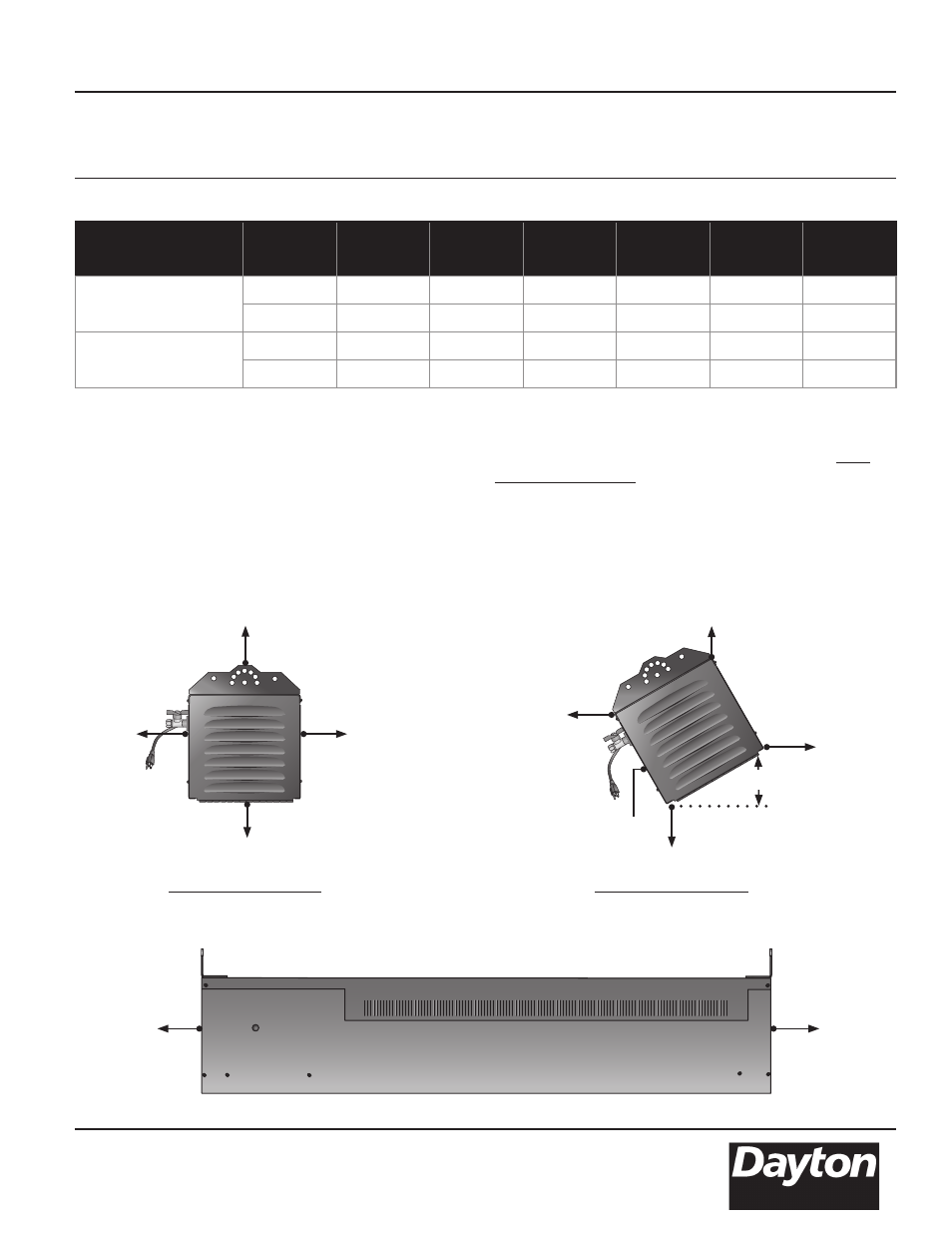

Figure 1.1 - Clearance to Combustibles
Model No.
Mounting
Angle*
Sides Back Top Below End(s) Front
1RVT7
34,000 [Natural Gas]
0° 14 N/A 13 46 22 N/A
30° N/A 8 17 46 22 46
1RVT8
34,000 [LP Gas]
0° 14 N/A 13 46 22 N/A
30° N/A 8 17 46 22 46
End End
SIDE VIEW
Below
Side Side
END VIEW
0° MOUNTING ANGLE
Top
(to ceiling)
Back
This side down
Below
Front
30˚
* Heaters mounted on an angle between 0° to 30° must maintain clearances posted for 0° or 30°; whichever is greater.
Important! If the heater is mounted beneath a non-
combustible surface an 8 in. minimum top clearance
must be maintained from the top of the heater to
prevent overheating the controls.
Top
(to ceiling)
END VIEW
30° MOUNTING ANGLE
