Auto Cycle Storage Screens

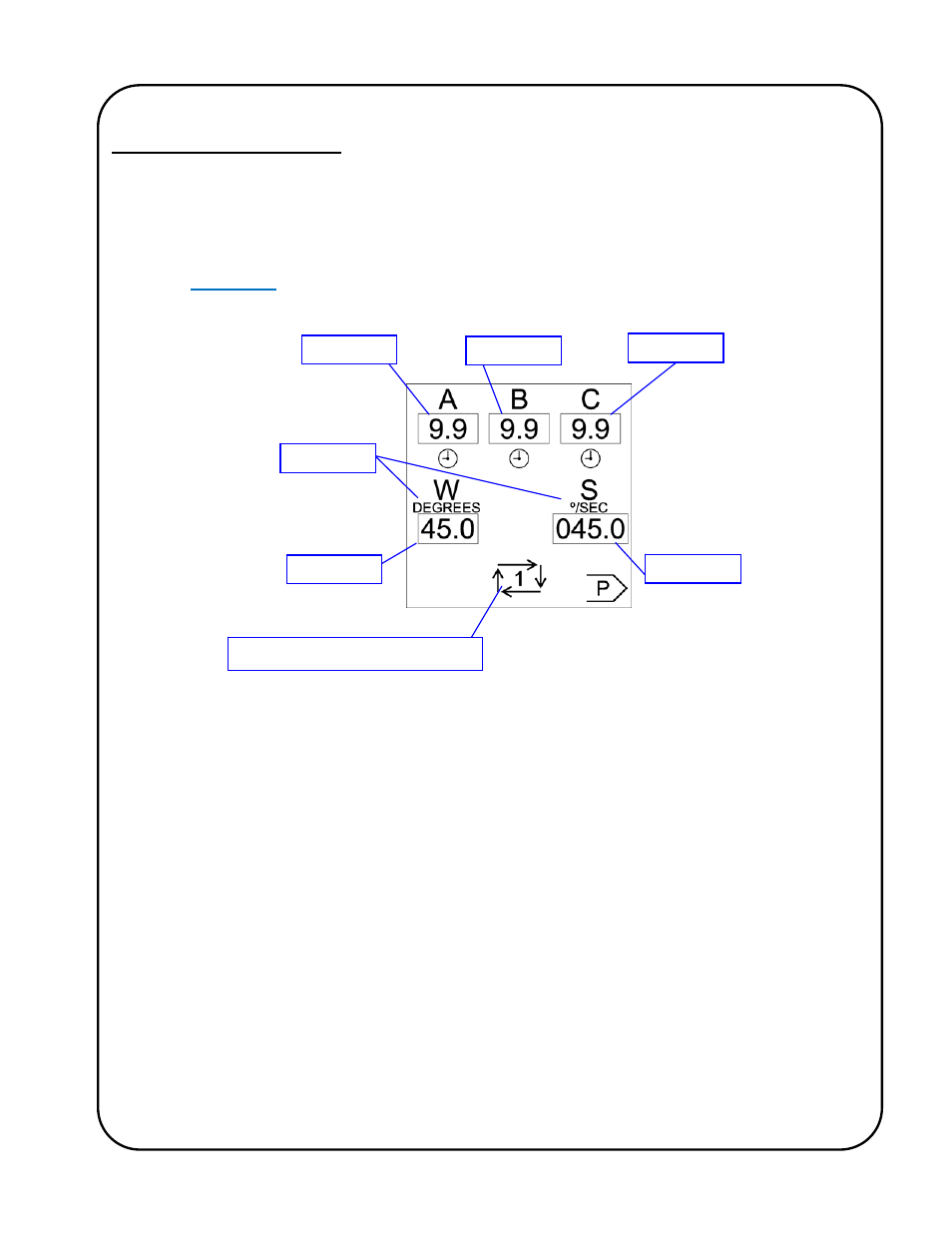

There are a total of ten (10) Auto Cycle Storage Screens, and each screen is identified by the “Auto
Cycle Storage Number” (numbered 1 to 10) as shown in the following image. The units of measure
for the oscillation width (W) and the oscillation speed (S) are programmable (level 2 - Advanced
Programming Mode). If the units of measure change, all width and speed fields will need to be
manually converted. To make changes to these screens/fields use the A, B & C rotary switches as
described
on page 11 . All the Auto Cycle Storage Screens have the following features:
1
st
Field = The A Location Dwell Time. This sets the time duration that the oscillation stroke will
dwell (pause) each time the A location is reached. The choices available are from 0.0
to 9.9 seconds in 0.1 second increments.
2 nd Field = The B Location Dwell Time. This sets the time duration that the oscillation stroke will
dwell (pause) each time the B (center) location is reached. The choices available are
from 0.0 to 9.9 seconds in 0.1 second increments.
3 rd Field = The C Location Dwell Time. This sets the time duration that the oscillation stroke will
dwell (pause) each time the C location is reached. The choices available are from 0.0
to 9.9 seconds in 0.1 second increments.
4
th
Field = The Oscillation Width. The value of this field sets the total width of the oscillation
stroke (A to C). The increments of adjustment and the minimum and maximum
allowable stroke widths are dependent on the type of Oscillator Head used and the
preferred units of measurement (see the Technical Manual, GD-057-T for details).
Note:- there is a width range where the oscillation stroke is too small to permit A, B &
C dwells to work.
5
th
Field = The Oscillation Speed. The value of this field sets the oscillation stroke speed. The
increments of adjustment and the minimum and maximum allowable stroke speeds are
dependent on the type of Oscillator Head used and the preferred units of
measurement (see the Technical Manual, GD-057-T for details).
3 rd Field 1
st
Field
Auto Cycle Storage Number
Units
5 th Field
2 nd Field
4
th
Field
