Hoist Fitness RS-1203 - Manual (Page 10)

NOTES:
- WRENCH TIGHTEN HARDWARE.
- WRENCH TIGHTEN ALL HARDWARE FROM
PREVIOUS STEPS.
- SOME PARTS MAY HAVE BEEN REMOVED
FOR CLARITY.
- INSTALL CABLE AND PULLEYS AT THE
SAME TIME.

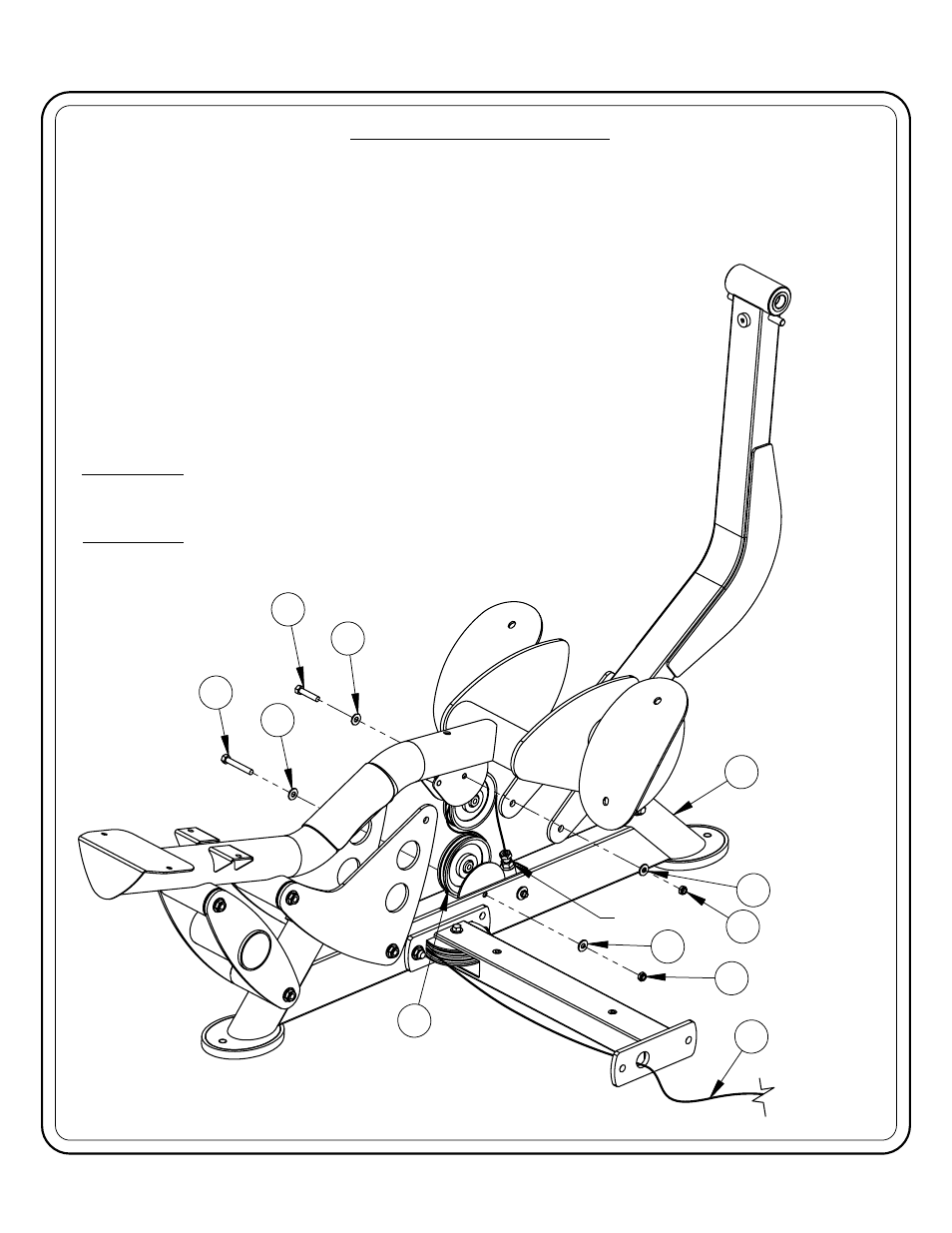

FRAME ASSEMBLY
OWNER'S MANUAL
PAGE 09 RS-1203 ASSEMBLY
WARNING -
CABLE BOLT MUST
BE THREADED A
MINIMUM OF 3/8" WITH
JAM NUT TIGHTENED
SECURELY TO
ENSURE PROPER
CONNECTION.
LOOSEN JAM NUT AND THREAD
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.
FINE TUNING:
39
35
39
35
39
31
39
30
13
4
14
JAM NUT
